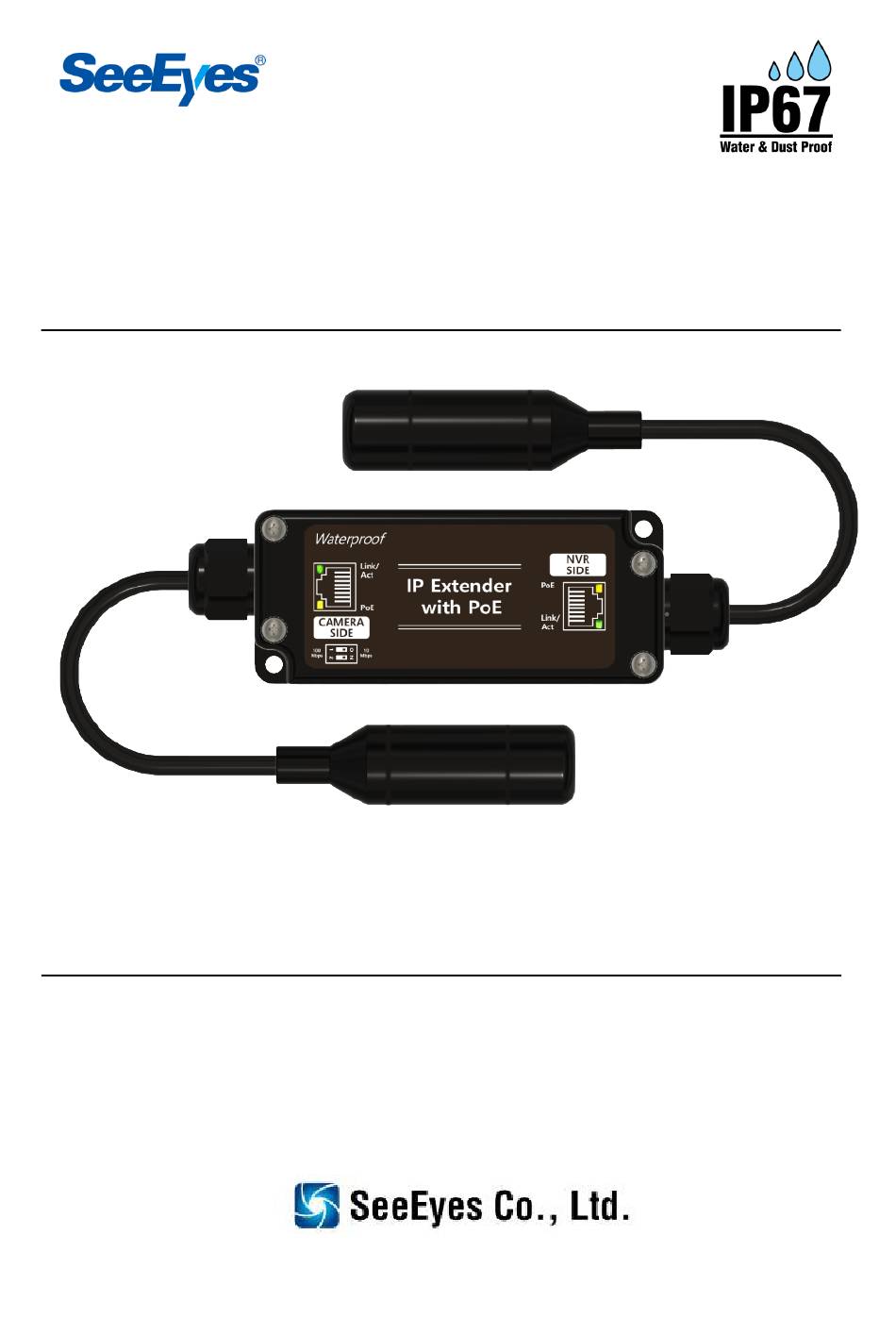

- Page 1 Release Version 1.1 Waterproof Type IP PoE Extender SC-IPE3001W User Manual SC-IPE3001W...
- Page 2 Release Version 1.1 Precaution and Safety Guidelines The content of this guideline is to protect the safety of users and prevent property damage. Please be sure to read this user’s manual thoroughly and use the device correctly. Warning (If you do not keep any of the below guidelines, you may get seriously injured or cause somebody’s death.) ■...
- Page 3 1. Introduction 1-1. Overview SC-IPE3001W is a waterproof & dustproof type of a 1-channel UTP Ethernet Data + PoE Extender. With its built-in power supply function (PoE IEEE802.3at), this product supplies power to camera over UTP 1 cable.
- Page 4 Release Version 1.1 2. Components SC-IPE3001W Manual 3. Product Parts & Functions ① ② ① CAMERA SIDE : IP PoE camera connection port. Port to supply PoE and receive data from camera. LED Indicator Successful PoE Input Yellow No PoE Input...
-
Page 5: Application Diagram
4. Application diagram 4-1. PoE power supply from the PoE Switch Hub ※ Bandwidth Switch 100Mbps Setting: Transmit Maximum 100m (CAT.5e) ※ Bandwidth Switch 10Mbps Setting: Transmit Maximum 250m (CAT.5e) 4-2. Multiple Connections with 2 pcs of SC-IPE3001W at 100Mbps... - Page 6 Release Version 1.1 4-3. Multiple Connections with 2 pcs of SC-IPE3001W at 10Mbps Additional use of 100Mbps is NOT recommended ※ Able to extend as above figure. The max. extension distance may vary depending on the rated capacity of IP camera, characteristics of the cable, and the added SC-IPE3001 quantity.
- Page 7 Release Version 1.1 5. How to connect cables and waterproof caps ※ As shown in the image above, remove the waterproof cap of the product and connect the UTP cable. ※ For proper waterproof, be sure to close the waterproof cap tightly. 6.
-
Page 8: Troubleshooting
Release Version 1.1 7. Troubleshooting Symptom Identification Method • Check the PoE switch hub connection state. No PoE • Check the CABLE PIN array. • Check the connection between the NVR and the Camera • Check the CABLE PIN array. •... -
Page 9: Specifications
Release Version 1.1 8. Specifications Model SC-IPE3001W PoE IEEE 802.3af / 802.3at Power Input Endspan / Midspan (Mode A / Mode B) PoE Output Midspan only (Mode B) 0.5W Max. Power Consumption In 100Mbps : Max. 100m (CAT.5e) Maximum Transmission Distance In 10Mbps : Max. -
Page 10: Warranty Certificate
Release Version 1.1 9. Warranty Certificate This product has passed thorough quality control and test, and if this gets broken during normal use, we provide the two-year warranty service. Model No. Serial No. Distributor Date you purchased Place you purchased Warranty Period Two (2) year from the date of purchase Name... - Page 11 Release Version 1.1 MEMO...
