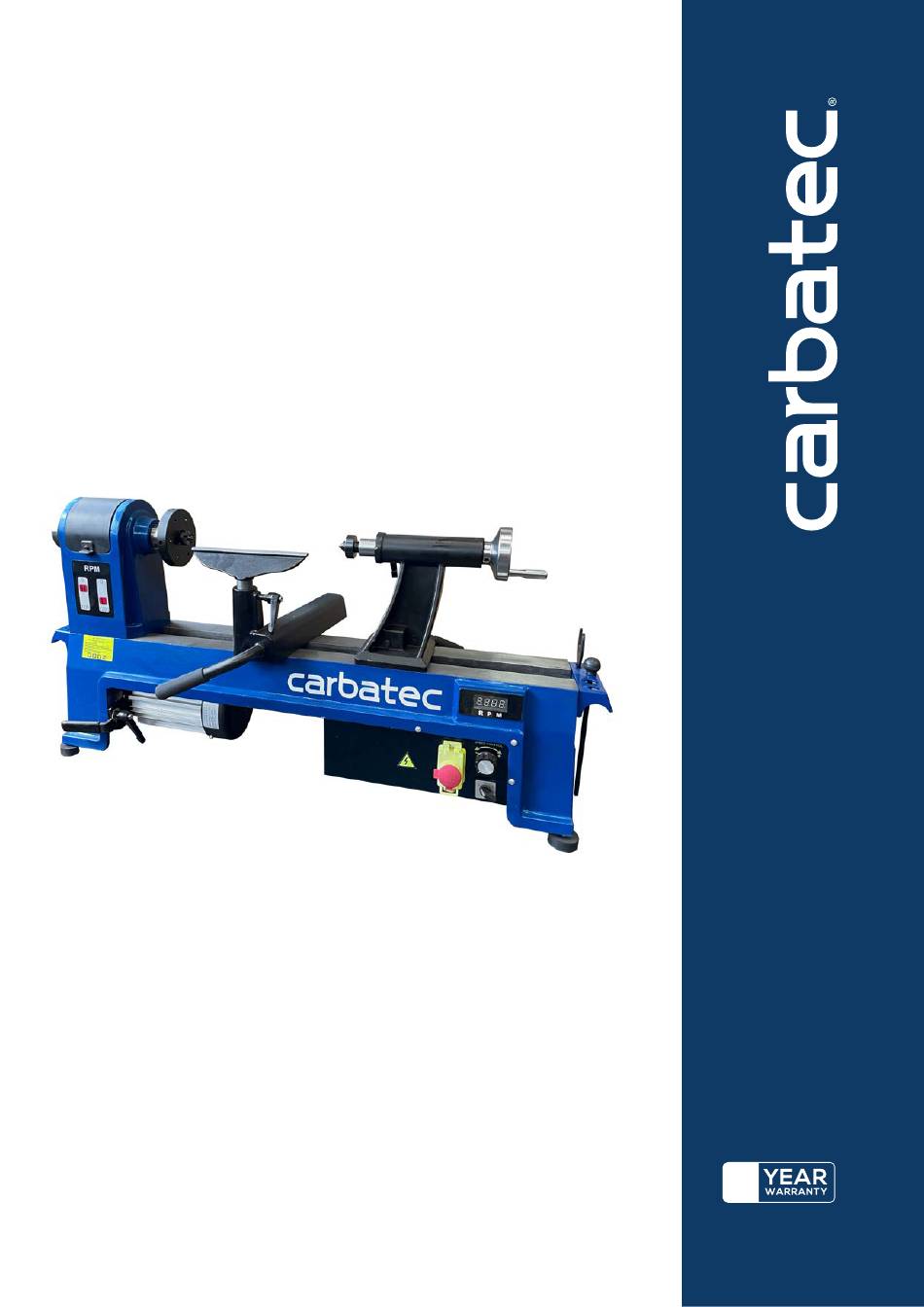

- Page 1 CARBATEC DELUXE ELECTRONIC VARIABLE SPEED MIDI LATHE WL-B1420P I N S T R U C T I O N M A N U A L CA RBATE C .C O M. AU...
-
Page 2: Introduction
Carbatec to keep you woodworking, as promised. We look forward to sharing in your woodworking journey! If you have any questions about our products or service, please call us on 1800 658 111 or email us at info@carbatec.com.au Find us on social media facebook.com/Carbatec instagram.com/Carbatec... -
Page 3: What's In The Box
WL-B1420P WELCOME WHAT’S IN THE BOX The following items are provided in one shipping carton: WL-B1420P CARBATEC DELUXE ELECTRONIC VARIABLE SPEED MIDI LATHE Lathe with face plate and tailstock installed × 1 Banjo × 1 Tool Rest × 1 Allen Keys suited to machine × 4 Live Centre and Drive Centre ×... -
Page 4: Key Information
Phase: Amp: SERIAL NUMBER: Speed: Lot No.: Serial No.: DATE OF PURCHASE: Date: Made in China for: CARBATEC PTY LTD Brisbane - Australia FOR T EC H N I CAL S UPPORT CAL L 1 800 6 58 111... -
Page 5: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Carbatec to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine. -
Page 6: Safety Instructions - General
Australian/New Zealand Standards to ensure their compliance with all mandatory standards and regulations (applicable at time of original sale). Carbatec Pty Ltd are registered as a responsible supplier with relevant Australian government departments and our products are registered on the EESS & ACMA database. - Page 7 WL-B1420P SAFETY GENERAL SAFETY Operating a power tool can be dangerous if GROUND ALL TOOLS. If the tool is supplied safety and common sense are ignored. The with a 3-prong plug, it must be plugged into operator must be familiar with the operation of a 3-contact electrical receptacle.
- Page 8 WL-B1420P GENERAL SAFETY ALWAYS UNPLUG THE TOOL FROM THE MAINTAIN TOOLS WITH CARE. Always ELECTRICAL RECEPTACLE keep tools clean and in good working order. when making adjustments, changing parts or Keep all blades and tool bits sharp, dress performing any maintenance.
- Page 9 WL-B1420P SAFETY ALWAYS WEAR A DUST MASK TO PREVENT including silicosis (a serious lung disease), INHALING DANGEROUS DUST OR cancer, and death. Avoid breathing dust, and AIRBORNE PARTICLES, including wood dust, avoid prolonged contact with dust. Allowing crystalline silica dust and asbestos dust.
-
Page 10: Safety Instructions - Lathes
WL-B1420P INTENDED USE • Relevant accident prevention regulations • The machine must only be used in and other, generally recognised safety- technically perfect condition in accordance technical rules must also be adhered to. with its designated use and the instructions •... - Page 11 WL-B1420P SAFETY Never drive the workpiece into the drive Select correct spindle speed for workpiece centre while the drive centre is in the size, type, shape, and condition. Use low speeds headstock. Set the drive centre into the when roughing or when turning large, long, or non workpiece with a soft mallet prior to installing it on concentric workpieces.
-
Page 12: Safety Instructions - Electrical
WL-B1420P ELECTRICAL SAFETY This tool must be grounded while in use to CHECK WITH A QUALIFIED ELECTRICIAN protect the operator from electric shock. IN THE or service personnel if you do not completely EVENT OF A MALFUNCTION OR BREAKDOWN, understand the grounding instructions, or if you grounding provides the path of least resistance are not sure the tool is properly grounded. -
Page 13: Machine Overview
WL-B1420P SAFETY — OVERVIEW OVERVIEW WL-B1420P CARBATEC DELUXE ELECTRONIC VARIABLE SPEED MIDI LATHE Belt drive access panel ON/OFF switch Face plate Toolrest base locking handle Tool rest Motor Tool rest locking handle Belt tension locking handle Quill Locking handle Motor plate tensioning handle... -
Page 14: Specifications
WL-B1420P SPECIFICATIONS CODE WL-B1420P BRAND Carbatec Electronic Variable Speed with Digital MODEL Readout Deluxe Midi Lathe 1 HP (750 W) induction motor with MOTOR Delta VFD SPEED 50-3200 RPM with exceptional torque SPINDLE THREAD 1" × 8 TPI SWING OVER BED CAPACITY 355 mm (14") -
Page 15: Assembly
WL-B1420P SPECIFICATIONS — ASSEMBLY ASSEMBLY INSTALLATION Fig. A1 This lathe is delivered mostly pre-assembled. Transport the wood turning lathe in its packing crate to a place near its final installation site before unpacking it. This machine is heavy. Do not over-exert yourself while unpacking or moving the machine. - Page 16 WL-B1420P ASSEMBLY CLEANUP The unpainted surfaces of the machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean. Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine’s unpainted surfaces.
- Page 17 WL-B1420P ASSEMBLY ASSEMBLY Fig. D1 Install the four rubber feet and adjust them so that the lathe sits level without rocking. Fig. D1 Install the banjo by laying the body of the banjo on top of the lathe bed so it is well...
-
Page 18: Pre-Run Testing
WL-B1420P Install your live centre in the tailstock and your Fig. D4 drive centre in the headstock, if required for your project. The included tools shelves can now be screwed into place on each end of the lathe, for convenient access to tools. - Page 19 WL-B1420P ASSEMBLY — RUN-TEST Set direction to neutral (0) position and Fig. E3 turn the spindle speed knob all the way counterclockwise. Fig. E3 Speed Display Connect the machine to power supply. Set the spindle direction switch in forward Speed Control position ‘F’.
-
Page 20: Setup Adjustments
WL-B1420P ADJUSTMENTS ADJUSTING THE TOOL REST Fig. F1 You can adjust the position, height and angle of the tool rest assembly to suit your task at hand. The tool rest locking lever locks the tool rest body (banjo) in position: Loosen the lever to slide the tool rest body along the lathe bed. - Page 21 WL-B1420P ADJUSTMENTS SETTING UP THE FACE Fig. G1 PLATE When installing the face plate for turning bowls and plates, mount the workpiece onto the face plate prior to installing the face plate on the headstock. Installing the face plate: Ensure the two locking grub screws are backed out until they do not protrude past Fig.
- Page 22 WL-B1420P ADJUSTMENTS SETTING UP THE Fig. H1 HEADSTOCK SPUR CENTRE Installing the spur centre: Make sure the mating surfaces of both the spur centre and the headstock spindle are clean. You can use an acetone-moistened cloth to remove any other debris, oil, etc.
- Page 23 WL-B1420P ADJUSTMENTS ADJUSTING THE TAILSTOCK Fig. I1 Quill lock handle Loosen the tailstock locking lever and slide the tailstock along the lathe bed into the Quill feed wheel desired position. Retighten the locking lever. Fig. I1 Loosen the quill locking handle just enough to unlock the tailstock quill.
- Page 24 WL-B1420P ADJUSTMENTS INDEXING Fig. J1 Indexing is used to create evenly spaced features around the circumference of the workpiece while keeping the spindle locked. There are 24 index positions in the spindle pulley, each 15° apart, to help you rotate the workpiece evenly for accurately spaced features.
- Page 25 WL-B1420P ADJUSTMENTS Always start at slower speeds for rough cuts and Fig. K2 larger workpieces. Use faster speeds for refined cuts and detailed work. Set the suitable speed range for your operation by adjusting the belt position. Change the speed within a speed range using the speed adjustment knob.
-
Page 26: Operation
WL-B1420P ADJUSTMENTS SPEED RECOMMENDATIONS • High range is best when turning a workpiece where a clean finish is required and only light cuts are made. • Mid range is a compromise between high and low ranges. • Low range, which has more torque, is best when turning a workpiece where a lot of material must be removed and a rough finish does not matter. - Page 27 WL-B1420P OPERATION Adjust the tool rest according to the type of operation, and set a minimum clearance between the workpiece and the lip of tool rest to 6 mm gap. Rotate the workpiece by hand to verify the spindle and workpiece rotate freely throughout full range of motion.
- Page 28 WL-B1420P OPERATION To help embed the spur centre into the Fig. M2 workpiece, cut 3 mm deep saw kerfs in the WORKPIECE CENTRE headstock end of the workpiece along the diagonal lines marked in step 1. If your workpiece is over 50 x 50 mm, cut the...
- Page 29 WL-B1420P OPERATION ROUGHING OUT CUT Roughing out is the first step of the lathe operation, which uses the large roughing gouge tool to smooth out sharp corners to make the workpiece cylindrical. When roughing out a workpiece, run the lathe at low speed and always cut downhill, from the large diameter side of the workpiece to the small diameter side.
- Page 30 WL-B1420P OPERATION CREATING BEADS Making a parting cut for the desired depth and location of your bead. Place the parting tool on the tool rest and move the tool forward to make the full bevel of the tool come into contact with the workpiece. Gently raise the handle to make cuts of the appropriate depth.
- Page 31 WL-B1420P OPERATION Use sandpaper finer than 120 grit, as coarse sandpaper may scratch the workpiece. Fold the sandpaper into a pad will allow easier and safer sanding. Do not wrap the sandpaper around your fingers or the workpiece. Apply light pressure to the workpiece during sanding. Use power-sanding techniques to avoid concentric sanding marks around your finished piece.
- Page 32 WL-B1420P OPERATION Shaping the inside of a bowl or plate Turn off the lathe and move the tailstock out of the way. Mount the workpiece onto the face plate and install the face plate on to the headstock. Adjust the tool rest in front of the workpiece to be just below the centreline and at the right angle to the lathe’s turning axis.
- Page 33 Select the right tool for your task at hand. Make sure all tools, chisels and accessories are sharp before using them. Do not use dull or damaged tools! CARBATEC proudly offer a wide range of Woodturning Tools and accessories. Whether you are a novice or professional, come in and have a chat with our team! CA RBATE C.COM .
- Page 34 WL-B1420P OPERATION The Roughing Gouge Fig. U1 For rough cutting, detail cutting, and cove profiles. The rough gouge is a hollow, double-ground tool with a round nose. The detail gouge is a hollow, double-ground tool with either a round or pointed nose.
-
Page 35: Maintenance
WL-B1420P MAINTENANCE MAINTENANCE Regular maintenance is an essential prerequisite for operational safety, failure-free operation, a long service life of the wood lathe and the quality of the products which you manufacture. Installation of third party accessories must also be maintained and in good condition. - Page 36 WL-B1420P MAINTENANCE REPLACING THE BELT Fig. Y1 The motor belt is considered a wear and tear item that will need replacing over the life of the machine. How long the belt lasts is determined by the use of the machine. Replacing the belt is a simple process that can be done at home and doe not require any specialised knowledge or tools.
- Page 37 WL-B1420P MAINTENANCE Remove the three screws from the spindle Fig. Y5 end cover and remove the cover. Fig. Y5 Move the belt off the pulley and around the spindle, then remove it through the upper opening. Fig. Y6 Alternatively, it can be manipulated around the pulley and removed through the top belt cover hatch.
-
Page 38: Parts Diagram
WL-B1420P PARTS DIAGRAM FOR T EC H N I CAL S UPPORT CAL L 1 800 6 58 111... - Page 39 WL-B1420P PARTS LIST PART # DESCRIPTION PART # DESCRIPTION Foot Tailstock wheel Motor Handwhell axle Belt tension lock level C-ring Flat washer Handwheel Motor connect plate Set screw – M8×10 HD cap screw – M6×16 Tailstock lock level Motor pulley...
-
Page 40: Troubleshooting
WL-B1420P TROUBLESHOOTING TO PREVENT INJURY TO YOURSELF or damage to the machine, turn the switch to the “OFF” position and unplug the power cord from the electrical receptacle before making any adjustments. NEVER attempt any electrical servicing yourself. These aspects of the machine are NOT user serviceable. If you suspect a fault in the motor, VFD or control box, take the machine to a licensed electrician/ service technician for inspection and servicing. - Page 41 WL-B1420P TROUBLESHOOTING MACHINE OPERATION SYMPTOM LIKELY CAUSE(S) SOLUTION(S) Poor surface finish. Dull tooling or wrong tool used for Sharpen tooling, select correct tool for task. operation and use correct technique. Tool height is correctly positioned. Adjust tool rest so tool is 3 mm above spindle centre line.
-
Page 42: Wiring Diagram
WL-B1420P WIRING DIAGRAM FOR T EC H N I CAL S UPPORT CAL L 1 800 6 58 111... -
Page 43: Warranty
1. a copy of the order or receipt for the goods; 2. the serial or batch number printed on the A. We warrant that this Carbatec product will be free machinery manufacturing plate; and from defects caused by faulty workmanship or faulty materials for a period of 2 years from date of sale. - Page 44 Carbatec P t y Ltd E info@carbatec.com.au AU 1800 658 111 NZ 0800 444 329 128 Ingleston Road, Wakerley, QLD 4154, Australia ABN 84 010 706 242 CAR BATE C .C O M. AU...
