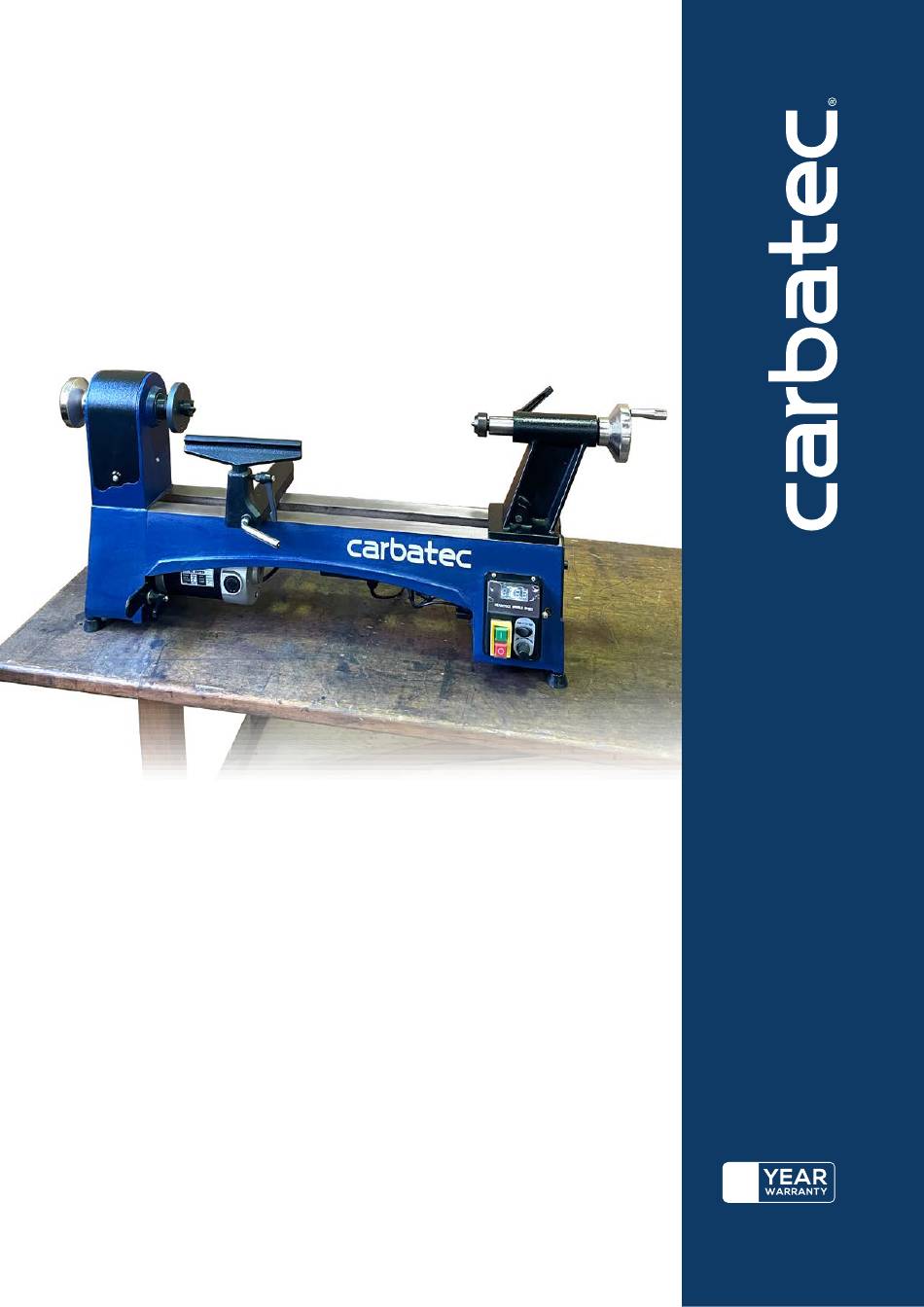

- Page 1 CARBATEC ELECTRONIC VARIABLE SPEED BENCHTOP MINI LATHE WL-B1220H I N S T R U C T I O N S M A N U A L CA RBATE C .C O M. AU...
-
Page 2: Introduction
Carbatec to keep you woodworking, as promised. We look forward to sharing in your woodworking journey! If you have any questions about our products or service, please call us on 1800 658 111 or email us at info@carbatec.com.au Find us on social media facebook.com/Carbatec instagram.com/Carbatec... -
Page 3: What's In The Box
WELCOME WHAT’S IN THE BOX The following items are provided in one shipping carton: WL-B1220H CARBATEC ELECTRONIC VARIABLE SPEED BENCHTOP MINI LATHE Lathe with Banjo and faceplate installed × 1 Magnetic Belt Door Catch (Optional) × 1 Tool Rest × 1 Allen Keys suited to machine ×... -
Page 4: Key Information
Phase: Amp: SERIAL NUMBER: Speed: Lot No.: Serial No.: DATE OF PURCHASE: Date: Made in China for: CARBATEC PTY LTD Brisbane - Australia FOR T EC H N I CAL S UPPORT CAL L 1 800 6 58 111... -
Page 5: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Carbatec to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine. -
Page 6: Safety Instructions - General
Australian/New Zealand Standards to ensure their compliance with all mandatory standards and regulations (applicable at time of original sale). Carbatec Pty Ltd are registered as a responsible supplier with relevant Australian government departments and our products are registered on the EESS & ACMA database. - Page 7 WL-B1220H SAFETY GENERAL SAFETY Operating a power tool can be dangerous if READ this entire manual. LEARN how to use safety and common sense are ignored. The the tool for its intended applications. operator must be familiar with the operation of this machine.
- Page 8 WL-B1220H GENERAL SAFETY WEAR PROPER CLOTHING. NEVER LEAVE A RUNNING TOOL Do not wear loose clothing, gloves, neckties, UNATTENDED. Turn the power switch to the or jewellery. These items can get caught in “OFF” position. Do not leave the tool until it the machine during operations and pull the has come to a complete stop.
- Page 9 WL-B1220H SAFETY SECURE ALL WORK. Use clamps or jigs to USE A PROPER EXTENSION CORD IN GOOD secure the work piece. This is safer than CONDITION. Use of extension cords should attempting to hold the work piece with be avoided where possible. When using an your hands.
- Page 10 WL-B1220H NOTE: According to the applicable product liability law the manufacturer of this device is not liable for damages which arise on or in connection with this The device and packaging materials are not device in case of: toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk •...
-
Page 11: Safety Instructions - Woodlathe
WL-B1220H SAFETY SAFETY FOR LATHES SPECIFIC TO LATHES • This lathe is intended for use in dry • Do not allow the turning tools to bite into conditions, and for indoor use only. the wood. The wood could split or be thrown •... -
Page 12: Safety Instructions - Electrical
WL-B1220H ELECTRICAL SAFETY This tool must be grounded while in use to CHECK WITH A QUALIFIED ELECTRICIAN protect the operator from electric shock. IN THE or service personnel if you do not completely EVENT OF A MALFUNCTION OR BREAKDOWN, understand the grounding instructions, or if you grounding provides the path of least resistance are not sure the tool is properly grounded. -
Page 13: Overview
WL-B1220H SAFETY — OVERVIEW OVERVIEW WL-B1220H CARBATEC ELECTRONIC VARIABLE SPEED BENCHTOP MINI LATHE Spindle Handwheel Tailstock Belt Cover Digital Speed Readout Faceplate Forward/Reverse Rotation Switch Drive Centre Variable Speed Adjustment Knob Tool Rest Lathe On/Off Switch Banjo Lathe Bed Tool Rest Locking Handle... -
Page 14: Specifications
WL-B1220H SPECIFICATIONS CODE WL-B1220H BRAND Carbatec Electronic Variable Speed with Digital MODEL Readout Benchtop Mini Lathe MOTOR 1-1/4 HP (950 W) universal SPEED EVS 250-3450 RPM SPINDLE THREAD 1" × 8 TPI SWING OVER BED CAPACITY 305 mm (12") BETWEEN CENTER CAPACITY 530 mm (21") -
Page 15: Assembly
WL-B1220H SPECIFICATIONS — ASSEMBLY ASSEMBLY ASSEMBLING THE Fig. A1 WOOD LATHE This lathe is predominantly pre-assembled. Remove the lathe from the carton with care. Remove all protective wrapping and clean all protective coatings from the lathe. You can use various products to do this, including Citrus Terpene, WD-40 and others. -
Page 16: Adjustments
WL-B1220H ADJUSTMENTS REMOVING THE FACEPLATE Fig. B1 AND CENTRES. Ensure the lathe is turned off and unplugged. The faceplate features two grub screws that lock it onto the spindle. These MUST be loosened to remove the faceplate! Failure to do so, or to loosen adequately could DAMAGE YOUR SPINDLE THREAD. - Page 17 WL-B1220H ADJUSTMENTS CHANGING THE BELT SPEED Fig. C1 RANGE. Ensure the machine is switched off and is unplugged. Using a ‘Philips’ head screwdriver, open the belt door on the headstock and using an ‘Allen Key’, the side panel to access the belt pulleys.
- Page 18 WL-B1220H ADJUSTMENTS CHANGING THE BELT Fig. D1 Open the upper and lower belt access doors. Loosen the two set screws of the spindle handwheel adequately and remove the handwheel by turning clockwise - this is a reverse threaded coupling. Fig. D1, D2...
-
Page 19: Operation
WL-B1220H ADJUSTMENTS — OPERATION OPERATION BEFORE FIRST USE! Fig. E1 Before using your machine for the first time, conduct an inspection to ensure all is in order. Check that your faceplate/chuck/drive centre is properly installed and locked in place, where relevant. Turn the machine on without any timber mounted to ensure the motor is operating smoothly. -
Page 20: Wiring Diagram & Exploded Parts
WL-B1220H WIRING DIAGRAM SPEED ON/OFF MOTOR 950W BROWN BROWN BROWN SPEED YELLOW/GREEN CONTROLLER 230V/1PH/50HZ SW DPST KEDU:KJD20 FILTER BLUE BLUE BLUE YELLOW/GREEN SPEED DISPLAY CW/CCW ELECTRICAL PARTS HOLDER PARTS DIAGRAM Title Size Number Revision Date: 21-Sep-2022 Sheet of File: E:\t 调速 \ts.ddb... -
Page 21: Parts List
WL-B1220H WIRING DIAGRAM – PARTS DIAGRAM PARTS LIST PART # DESCRIPTION PART # DESCRIPTION Bolt Headstock Cam follower tailstock Ball bearing 6005 Eccentric axis Retaining ring Retaining ring 10 Headstock spindle Taper rod Hand wheel Cup center Hinge Ball bearing 6202... -
Page 22: Troubleshooting & Maintenance
WL-B1220H TROUBLESHOOTING AND MAINTENANCE TO PREVENT INJURY TO YOURSELF or damage to the machine, turn the switch to the “OFF” position and unplug the power cord from the power point before making any adjustments. Maintenance for lathes is minimal and primarily based around dust control. A dust collector should be used when operating your lathe, with appropriate catching shrouds according to the job at hand. -
Page 23: Warranty
1. a copy of the order or receipt for the goods; 2. the serial or batch number printed on the A. We warrant that this Carbatec product will be free machinery manufacturing plate; and from defects caused by faulty workmanship or faulty materials for a period of 1 year from date of sale. - Page 24 Carbatec P t y Ltd E info@carbatec.com.au AU 1800 658 111 NZ 0800 444 329 128 Ingleston Road, Wakerley, QLD 4154, Australia ABN 84 010 706 242 CAR BATE C .C O M. AU...
