Summary of Contents for Carbatec WL-1624P

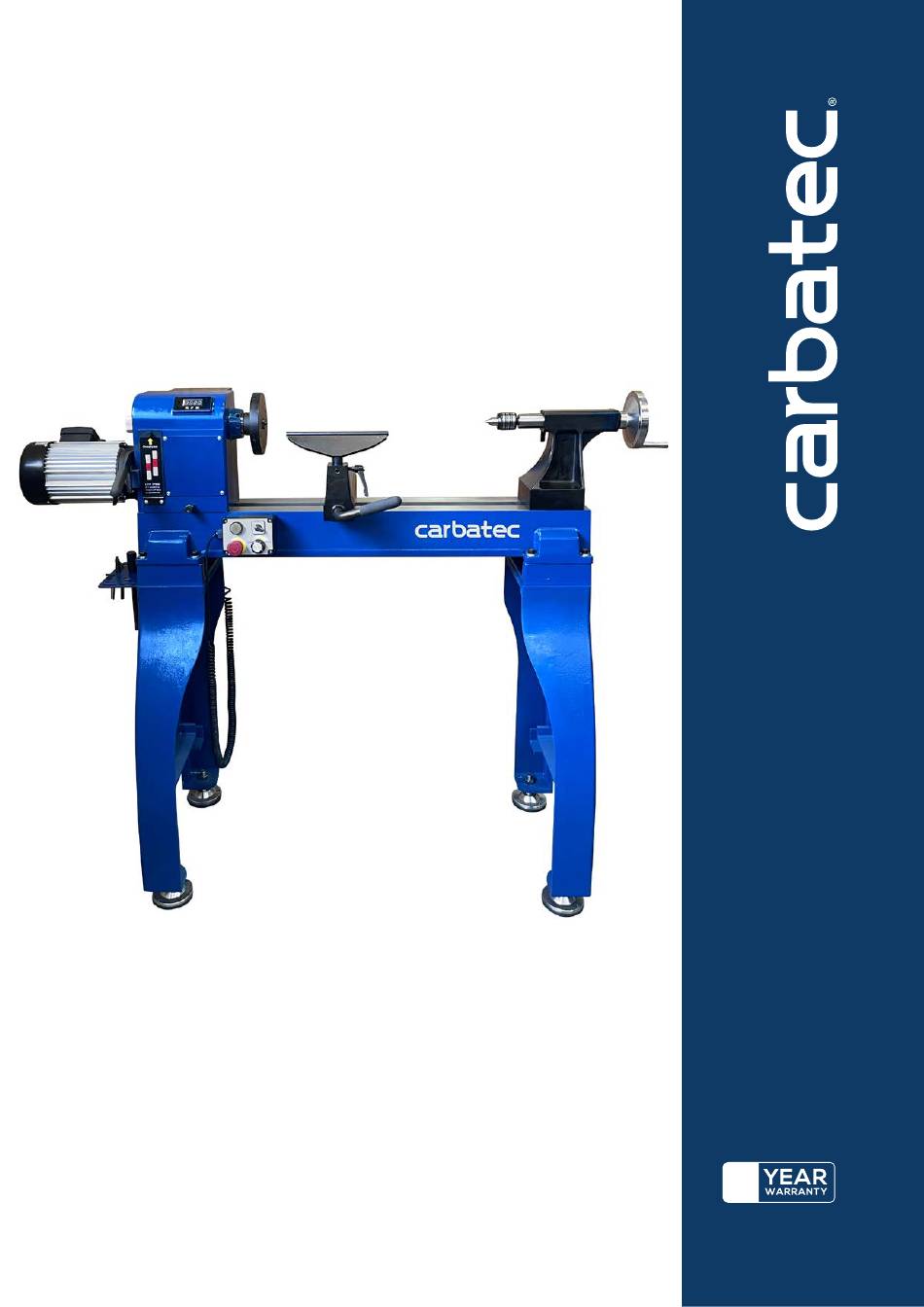

- Page 1 CARBATEC ELECTRONIC VARIABLE SPEED DELUXE FLOOR LATHE WL-1624P I N S T R U C T I O N M A N U A L CA RBATE C .C O M. AU...
-
Page 2: Introduction
Carbatec to keep you woodworking, as promised. We look forward to sharing in your woodworking journey! If you have any questions about our products or service, please call us on 1800 658 111 or email us at info@carbatec.com.au Find us on social media facebook.com/Carbatec instagram.com/Carbatec... -
Page 3: What's In The Box
WL-1624P WELCOME WHAT’S IN THE BOX The following items are provided in one shipping crate: WL-1324P CARBATEC ELECTRONIC VARIABLE SPEED COMPACT FLOOR LATHE Lathe body × 1 Spur centre × 1 Tailstock × 1 Face plate × 1 Headstock × 1 Tool rest ×... -
Page 4: Key Information
Phase: Amp: SERIAL NUMBER: Speed: Lot No.: Serial No.: DATE OF PURCHASE: Date: Made in China for: CARBATEC PTY LTD Brisbane - Australia FOR T EC H N I CAL S UPPORT CAL L 1 800 6 58 111... -
Page 5: Table Of Contents
Changes and improvements may be made at any time, with no obligation on the part of Carbatec to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine. -
Page 6: Safety Instructions - General
Australian/New Zealand Standards to ensure their compliance with all mandatory standards and regulations (applicable at time of original sale). Carbatec Pty Ltd are registered as a responsible supplier with relevant Australian government departments and our products are registered on the EESS & ACMA database. - Page 7 WL-1624P SAFETY GENERAL SAFETY Operating a power tool can be dangerous if GROUND ALL TOOLS. If the tool is supplied safety and common sense are ignored. The with a 3-prong plug, it must be plugged into operator must be familiar with the operation of a 3-contact electrical receptacle.
- Page 8 WL-1624P GENERAL SAFETY ALWAYS UNPLUG THE TOOL FROM THE MAINTAIN TOOLS WITH CARE. Always ELECTRICAL RECEPTACLE keep tools clean and in good working order. when making adjustments, changing parts or Keep all blades and tool bits sharp, dress performing any maintenance.
- Page 9 WL-1624P SAFETY ALWAYS WEAR A DUST MASK TO PREVENT including silicosis (a serious lung disease), INHALING DANGEROUS DUST OR cancer, and death. Avoid breathing dust, and AIRBORNE PARTICLES, including wood dust, avoid prolonged contact with dust. Allowing crystalline silica dust and asbestos dust.
-
Page 10: Safety Instructions - Lathe
WL-1624P INTENDED USE • Relevant accident prevention regulations • The machine must only be used in and other, generally recognised safety- technically perfect condition in accordance technical rules must also be adhered to. with its designated use and the instructions •... - Page 11 WL-1624P SAFETY Never drive the workpiece into the drive Select correct spindle speed for the workpiece centre while the drive centre is in the size, type, shape, and condition. Use low speeds headstock. Set the drive centre into the when roughing or when turning large, long, or non workpiece with a soft mallet prior to installing it on concentric workpieces.
-
Page 12: Safety Instructions - Electrical
WL-1624P ELECTRICAL SAFETY This tool must be grounded while in use to CHECK WITH A QUALIFIED ELECTRICIAN protect the operator from electric shock. IN THE or service personnel if you do not completely EVENT OF A MALFUNCTION OR BREAKDOWN, understand the grounding instructions, or if you grounding provides the path of least resistance are not sure the tool is properly grounded. -
Page 13: Overview
WL-1624P SAFETY — OVERVIEW OVERVIEW WL-1324P CARBATEC ELECTRONIC VARIABLE SPEED COMPACT FLOOR LATHE E-Stop (on moveable magnetic switch) ON/OFF switch Face plate Tool rest base (banjo) locking handle Tool rest Motor Tool rest locking handle Drive spur Quill locking handle... -
Page 14: Specifications
WL-1624P SPECIFICATIONS CODE WL-1624P BRAND Carbatec Deluxe Electronic Variable Speed with MODEL Digital Readout Floor Model Lathe 2 HP (1500 W) Induction motor with MOTOR VFD (invertor) 100-3000 RPM (over two belt SPEED positions) SPINDLE THREAD 1-1/4" × 8 TPI SWING OVER BED CAPACITY 408 mm (16") -
Page 15: Assembly
WL-1624P SPECIFICATIONS — ASSEMBLY ASSEMBLY INSTALLATION Fig. A1 Transport the wood turning lathe in its packing crate to a place near its final installation site before unpacking it. This machine is heavy. Do not over-exert yourself while unpacking or moving the machine. Get assistance! Fig. - Page 16 WL-1624P ASSEMBLY CLEANUP The unpainted surfaces of the machine are coated with a heavy-duty rust preventative that prevents corrosion during shipment and storage. This rust preventative works extremely well, but it will take a little time to clean. Be patient and do a thorough job cleaning your machine. The time you spend doing this now will give you a better appreciation for the proper care of your machine’s unpainted surfaces.
- Page 17 WL-1624P ASSEMBLY ASSEMBLY Fig. D1 With the lathe body securely lifted to an appropriate height on a scissor lift trolley, forklift, or placed across a workbench, first screw the “leg adaptor plates” to the lathe bed from above. Fig. D1...
-
Page 18: Operation
WL-1624P OPERATION CONTROLS AND FEATURES Fig. E1 Indexing capability: The indexing on this lathe can be found on the front shoulder of the headstock. There are three hole positions here, 20° apart. The spindle has 12 holes, 30° apart. The combination of which provide 36 indexing positions. - Page 19 WL-1624P OPERATION Headstock spur centre: Used for turning between centres. The spindle Fig. E5 taper is MT-2. Remove spur centre by inserting a knock-out bar through the opposite end of the spindle and knocking the spur centre out. Fig. E5...
- Page 20 WL-1624P OPERATION Tailstock lock handle: Fig. E10 Locks the tailstock in position. Unlock the handle to position the tailstock in any location along the lathe bed. Tighten the handle when properly positioned. Fig. E10 Tailstock quill lock handle: Locks the tailstock quill in position. Unlock the handle to position the quill.
- Page 21 WL-1624P OPERATION Rotating the headstock: Fig. E14 Insert the headstock lock handle into the hole in the headstock lock pin at the back of the headstock. Rotate to release the lock. Fig. E14 Release the locating detent pin on the front of the headstock by pulling out.
- Page 22 WL-1624P OPERATION SPEED RECOMMENDATIONS • High range is best when turning a piece where a clean finish is required and only light cuts are made. • Mid range is a compromise between high and low ranges. • Low range, which has more torque, is best when turning a workpiece where a lot of material must be removed and a rough finish does not matter.
- Page 23 OPERATION WL-1624P SPINDLE TURNING Spindle turning is the operation performed when a workpiece is mounted between centres. Bowls, table legs, tool handles, and candle sticks are typical projects where this operation is used. To set up a spindle turning operation: Find the centre point of both ends of your workpiece by drawing diagonal lines from corner to corner of the workpiece.
- Page 24 WL-1624P OPERATION SPINDLE TURNING TIPS • When turning the lathe ON, stand away from the path of the spinning workpiece until the spindle reaches full speed and you can verify that the workpiece will not come loose. • Use the slowest speed when starting or stopping the lathe.
- Page 25 WL-1624P OPERATION Always work towards the end of the workpiece. Never start a cut at the end. Make long sweeping cuts in a continuous motion to turn the workpiece to a cylinder. Keep as much of the bevel of the tool in contact with the workpiece as possible to ensure control and avoid catches.
- Page 26 WL-1624P OPERATION CREATING V-GROVES Using the point of the skew to create a V-groove in the workpiece. Lightly mark the centre of the V with the top of the skew. Move the point of the skew to the right half of the desired width of your cut.
- Page 27 WL-1624P OPERATION Flatten one of the surfaces of the workpiece for mounting against the face plate. Using the face plate as a template, mark the location of the mounting holes on the workpiece and drill pilot holes of the appropriate size.
- Page 28 WL-1624P OPERATION WOODTURNING TOOLS Fig. O1 The Roughing Gouge For rough cutting, detail cutting, and cove profiles. The rough gouge is a hollow, double-ground tool with a round nose. The detail gouge is a hollow, double-ground tool with either a round or pointed nose.
-
Page 29: Maintenance
WL-1624P OPERATION - MAINTENANCE MAINTENANCE Properly performed regular maintenance is an essential prerequisite for operational safety, failure-free operation, a long service life of the wood lathe and the quality of the products which you manufacture. Installations and equipment from other manufacturers must also be in good condition. - Page 30 WL-1624P MAINTENANCE BELT CHANGE Fig. S1 Replacing the belt Disconect the machine from power! Loosen the belt-tension lock handle and release the belt tension by lifting the motor lever, then tighten the lock handle to set the lower pulley with the belt loose.
-
Page 31: Troubleshooting
WL-1624P TROUBLESHOOTING TROUBLESHOOTING SYMPTOM LIKELY CAUSE(S) SOLUTION(S) Poor surface finish. Blunt tool or wrong tool used for Sharpen tooling, select correct tool for task. operation and use correct technique. Tool height is incorrect. Adjust tool rest so tool is 3 mm above spindle centre line. -
Page 32: Parts Diagram And Parts List
PARTS DIAGRAM FOR MC1624VS(MC600S) WL-1624P SWING HEADSTCOK PARTS DIAGRAM FOR T EC H N I CAL S UPPORT CAL L 1 800 6 58 111... - Page 33 WL-1624P PARTS LIST PARTS LIST PART QTY PART QTY PART DESCRIPTION DESCRIPTION DESCRIPTION Spur centre Set screw M6*10 Quill Face plate Handle wheel Live centre Set screw M6*12 Knockout rod Handle tube Indexing pin Motor 230V 50Hz 1100W Tailstock lock lever...
-
Page 34: Wiring Diagram
WL-1624P WIRING DIAGRAM WL-1324P CARBATEC ELECTRONIC VARIABLE SPEED COMPACT FLOOR LATHE FOR T EC H N I CAL S UPPORT CAL L 1 800 6 58 111... -
Page 35: Warranty
1. a copy of the order or receipt for the goods; 2. the serial or batch number printed on the A. We warrant that this Carbatec product will be free machinery manufacturing plate; and from defects caused by faulty workmanship or faulty materials for a period of 2 years from date of sale. - Page 36 Carbatec P t y Ltd E info@carbatec.com.au AU 1800 658 111 NZ 0800 444 329 128 Ingleston Road, Wakerley, QLD 4154, Australia ABN 84 010 706 242 CAR BATE C .C O M. AU...
