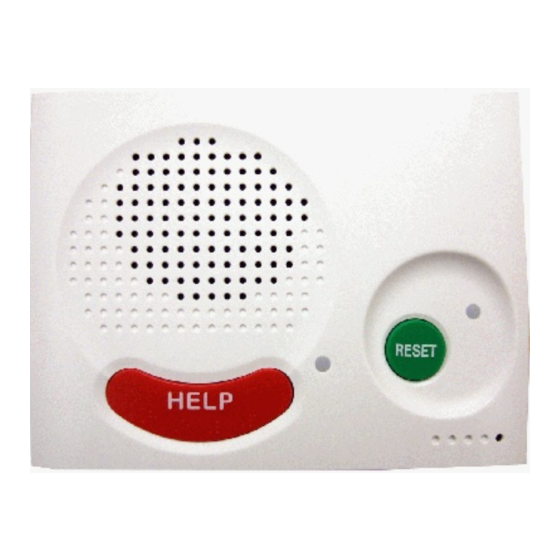

Gardsman CTC-1041RV Pro User Manual
  1. Manuals
  2. Brands
  3. Gardsman Manuals
  4. Security System
  5. CTC-1041RV Pro
  6. User manual

Gardsman CTC-1041RV Pro User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
c
30-Mar-2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTC-1041RV Pro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gardsman CTC-1041RV Pro

Summary of Contents for Gardsman CTC-1041RV Pro

  • Page 1 30-Mar-2011...

  • Page 2: Table Of Contents

    4.1.1. Auto-Answer Incoming Phone Calls__________________________________________________ 17 4.1.2. Non-Emergency Speech Call ________________________________________________________ 17 4.1.3. AC Power Check Up ________________________________________________________________ 18 4.1.4. CTC-1041RV Pro Low Battery _______________________________________________________ 18 4.1.5. Devices Low Battery ________________________________________________________________ 18 4.1.6. Automatic Check-in Report = Periodic Test Call_______________________________________ 18 4.1.7.
  • Page 3 5.2. Tunstall Event code ____________________________________________________________ 24 5.3. Scancom Event code___________________________________________________________ 25 5.4. CTC-1041RV Pro Programming Command Table _________________________________ 26...

  • Page 4: Application Overview

    — Phone line connection from wall — Press once in normal mode to reset mobility timer (see command 44) DC Jack — Before CTC-1041RV Pro dials out — DC 15V 0.8A power adapter for alarm reporting, press once to connection cancel the alarm reporting —...

  • Page 5: The Power Supply

    BACK VIEW 1.2. The Power Supply An AC power adapter is required to connect to a wall outlet. Be sure only to use an adapter with the appropriate AC voltage rating to prevent component damage. A DC 15V output and 0.8A adapter is generally used to power CTC- 1041RV Pro.

  • Page 6: Line Capture

    Master Control over the telephone line. That Panel means, even if the phone line is engaged, the CTC-1041RV Pro has the power to Locating a suitable position for the circumvent the line and dial-out anyway. Control Panel The Control Panel requires main power <...

  • Page 7: Learn-In The Devices

    The mode to learn WTR- series (except WTRV). RED LED begins to flash to indicate For learning silent pendant, use Command that the CTC-1041RV Pro is now in 93 to learn it. To add other devices, Learning Mode.

  • Page 8: Learning Pendant #2

    Step 3. Enter default ACCESS CODE, 1111 followed by #. 2.3. Remove Pendant #1 & #2 Step 4. CTC-1041RV Pro will emit 2 short beeps and the red LED starts to flash, CTC-1041RV Pro can be programmed to indicating it is in Programming Mode.

  • Page 9: Remote Programming Mode

    CTC-835 is a powerful local & remote answer (20-Rings is set as factory default). handheld programming tool (sold separetely) Step 1. Dial CTC-1041RV Pro and wait for that features a built-in keypad and LCD display CTC-1041RV Pro to answer. to help you to program the medical alarm panels effeciently and conveniently.

  • Page 10: Programming Your 1041Rv Pro

    How to enter Commands? Step 5. Enter (#) to terminate the Command Please make sure CTC-1041RV Pro is in Operation. Programming Mode (RED LED flashes Step 6. CTC-1041RV Pro will emit a short continuously) before trying CTC- beep, indicating successful 1041RV Pro Command Functions.
  • Page 11 Command 05-06 < > < > Select Telephone Number for Alarm Reporting and Status Reporting Tel. number selected Command #7 will not be used for < > < > alarm and/or status reporting, even if it If the Tel. number is selected in is selected in command #5 and/or #6.
  • Page 12 Reporting Method for all 4 Tel. Numbers. Command (21-24): Program the alarm Ringer Enable for Incoming Calls reporting method Tel. CTC-1041RV Pro can be programmed to Numbers respectively. emit a ring tone as an audio alert, or silent Available Options: for incoming calls. Function...
  • Page 13 RED BUTTON will stop flashing. If Help Arrived Signaling is set to OFF, Command 35 once the Alarm Reporting is completed, CTC-1041RV Pro will return to idle mode. Silent Mode Function Selection Result CTC-1041RV Pro can be selected to operate in Silent Mode.
  • Page 14 (triggered AC Fault Report by pressing the Help button on the Medical The CTC-1041RV Pro can be programmed Panel) to the Monitoring Center, CTC- to send a Fault Report when an AC power 1041RV Pro will automatically hang up the failure is detected.
  • Page 15 To terminate the call, press DTMF (9) or RESET BUTTON on CTC-1041RV Auto Answer for Remote Programming Pro. CTC-1041RV Pro can be programmed to If the 5-minute waiting period is up, auto answer incoming phone calls after a CTC-1041RV Pro will automatically...
  • Page 16 This function monitors user movement around It is used to select the Follow-On Choice the premises and sends an inactivity report to for CTC-1041RV Pro after it has made a the Monitoring Center if the user fails to reset report to the Monitoring Center.
  • Page 17 Idle mode. Speech mode is two mins. During the 2- min period, CTC-1041RV Pro will emit two When (1) is selected, after CTC- beeps via the telephone handset to alert 1041RV Pro has made a report to the the call recipient the remaining time of 20 &...
  • Page 18 When the supervisory timer expires and no returns to Programming mode. supervision signal is received from WTR-, the supervisory alarm reporting will be Step 3: CTC-1041RV Pro will emit 2 beeps made. to indicate that Pendant #1 is learnt-in successfully.
  • Page 19 Programming mode. Step 2: Press the Pendant Button within 60 sec. Step 3: CTC-1041RV Pro will emit 2 beeps to indicate that Silent Pendant is Learning can only be completed learnt-in successfully. within the signal reception range of CTC-1041RV Pro.

  • Page 20: Operation

    When 5 short beeps (warning beeps) CTC-1041RV Pro exits the Programming sound instead of a short beep, it means Mode and returns to idle mode. CTC-1041RV Pro is not in idle mode and it is not allowed to use non-emergency call function.

  • Page 21: Ac Power Check Up

    Mobility Timer can be set by using Command #44. When the battery low condition lasts for 4 - 6 mins, CTC-1041RV Pro will report to the If Mobility Timer is set as Enable, a Monitoring Center and the GREEN LED counting down period starts from: flashes slowly.

  • Page 22: No Pendant Present

    30 minutes. in report. When the Mobility timer is not reset after 30 minutes, CTC-1041RV Pro will send a Mobility Timer Expired report to the Monitoring Center every 30 mins until 4.2. Alarm Activation timer is reset.
  • Page 23 Monitoring Center personnel Call-Back mode: have to press the DTMF 2 to open two-way communication and then the Monitoring Center can remotely control CTC-1041RV Pro by the Call-Back Operation DTMF commands as below: If Command #38 is set as 1, Call- Back or 2, Follow-On &...
  • Page 24 The allowable time duration for Follow-On Period is set by Command #46 (1-10 mins). If Speech Reporting Method is selected, after dialing, CTC-1041RV Pro will open a During Two-way Voice Communication, at two-way voice communication between 20 & 10 seconds before the Follow-On...

  • Page 25: Walk Test (Range Test)

    Step 2. Within 5 sec, press Pendant button. 4.3. Walk Test (Range Test) Step 3. CTC-1041RV Pro will emit a short Put CTC-1041RV Pro in Learning Mode to beep and report to Monitoring determine the operation range of the devices.

  • Page 26: Appendix

    Step 7. Slide the Battery Switch back to ON position again. 147 - Sensor Supervisory Failure Step 8. Replace the Battery Switch rubber When CTC-1041RV Pro is unable to receive the signal transmitted from the cap. Wrist Transmitter for a pre-set period <...
  • Page 27 When the GREEN REST BUTTON is pressed while reporting to Monitoring D#1013 - Sensor Supervisory Failure Center. When CTC-1041RV Pro is unable to 602 - Periodic test report receive the signal transmitted from the Wrist Transmitter for a pre-set period...
  • Page 28 2 sec with 2 beeps. 555551558 - Panel Low battery 553555557 - IR Low battery Restore When CTC-1041RV Pro is under Low When the Low Battery status of PIR Battery status, Green LED flashes Motion Detector (IR) is restored.
  • Page 29 5.4. CTC-1041RV Pro Programming Command Table DTMF DTMF TERMI- DTMF COMMAND OPERATION DEFAULT CHARACTER NATOR COMMANDS Telephone number 1 No number Telephone number 2 No number Telephone number 3 No number Telephone number 4 No number Telephone number for alarm report...
  • Page 30 DTMF DTMF TERMI- DTMF COMMAND OPERATION DEFAULT CHARACTER NATOR COMMANDS Test call, 0 = OFF, 1 = 1 Day, 2 = 2 Days, 3 = 3 Days, 4 = 4 Days. 5 = 5 Days, No test call 6 = 6 Days, 7 = 7 Days, 8 = 30 days Mobility time Mobility time 0= Disable, 1=12 Hour, 2=24 Hour...
