Setting Up Touchscreen Models

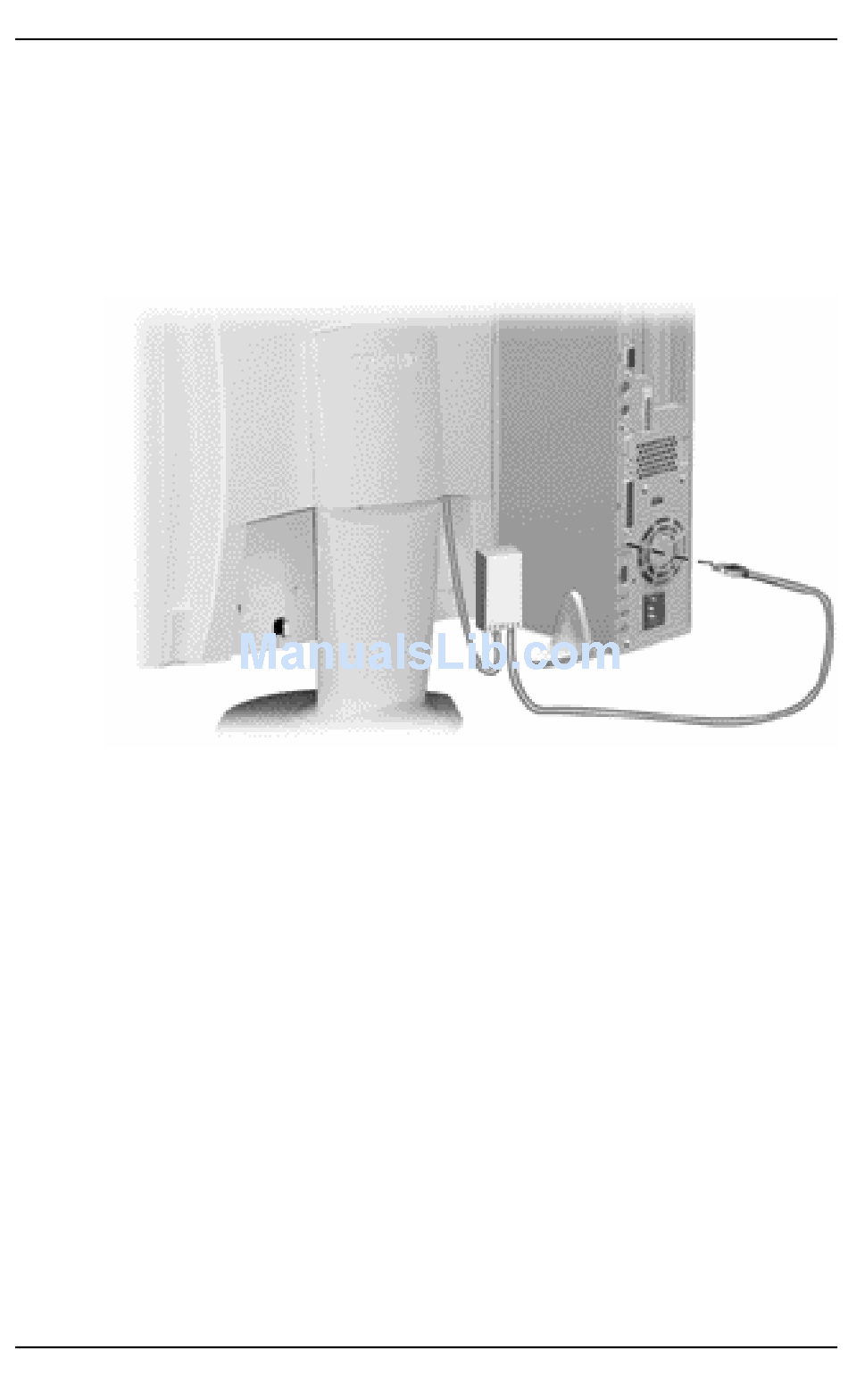

If you purchased a monitor with the touchscreen feature, there is
an external module attached to the rear of the monitor. Connect
the USB cable from this module to a USB port on your computer.
After connecting the cables, complete the following to install
Touchware:
1. Make sure the touchscreen is properly connected. The setup
program cannot configure the touchscreen if it is not properly
connected.
2. Start Windows and make sure no other applications are open.
3. Insert the Compaq TFT5015 Flat Panel Monitor Software
and User's Guide CD into the CD-ROM drive.
4. From the menu options, select "Install Touchware Software".
5. Follow the instructions displayed on the screen to install the
Microtouch Touchware software. Make your selections
carefully when answering questions to complete the
installation.
