PASCO code.Node Replacement Instructions

PS‐3231; Wireless Code Node Battery Replacement Instructions

Reference: Battery part number 540‐115; Li‐Poly 300 mAH

Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)

Step 1:

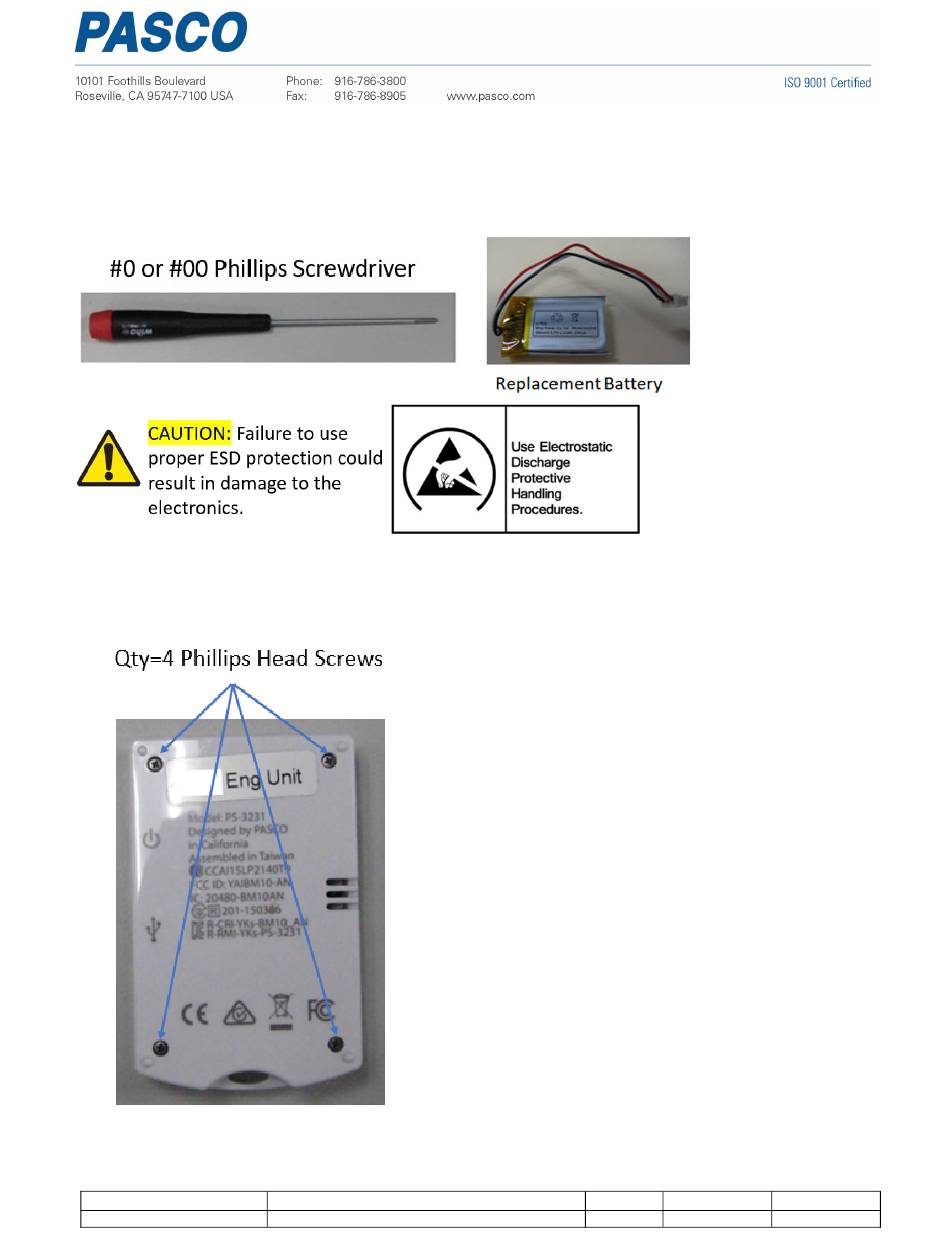

Position the Sensor on a surface as shown. Note the location of the (4) Phillips

Screws.

PASCO Form Number

Description

Date

Revision

013-17366

PS-3231 Battery Replacement Instructions

05-05-22

Page 1 of 3

Table of Contents

Need help?

Do you have a question about the code.Node and is the answer not in the manual?

Page 1 PS‐3231; Wireless Code Node Battery Replacement Instructions Reference: Battery part number 540‐115; Li‐Poly 300 mAH Recommended Equipment: (PS‐3299; Battery Replacement Tool Set) Step 1: Position the Sensor on a surface as shown. Note the location of the (4) Phillips Screws. PASCO Form Number Description Date Revision 013-17366 PS-3231 Battery Replacement Instructions 05-05-22 Page 1 of 3 ...
Page 2 Step 2: Unscrew and remove the 4 Phillips Screws with the Phillips Screwdriver. Separate the two halves as shown below. Step 3: Remove the battery hold down cover by removing the two screws with a Phillips Screwdriver. Unplug the battery connector and set the battery aside. PASCO Form Number Description Date Revision 013-17366 PS-3231 Battery Replacement Instructions 05-05-22 Page 2 of 3 ...
Page 3 Step 4: Place the new battery in the battery compartment and secure by reattaching the battery hold down cover. Plug in the battery into the battery connector and reverse the steps noted above to complete the reassembly. Dispose of the old battery properly per the instructions below. If you need further assistance, please contact Technical Support at support@pasco.com or through www.pasco.com on chat. To access chat through your browser, please enable all cookies on our website. PASCO Form Number Description Date Revision 013-17366 PS-3231 Battery Replacement Instructions 05-05-22 Page 3 of 3 ...
