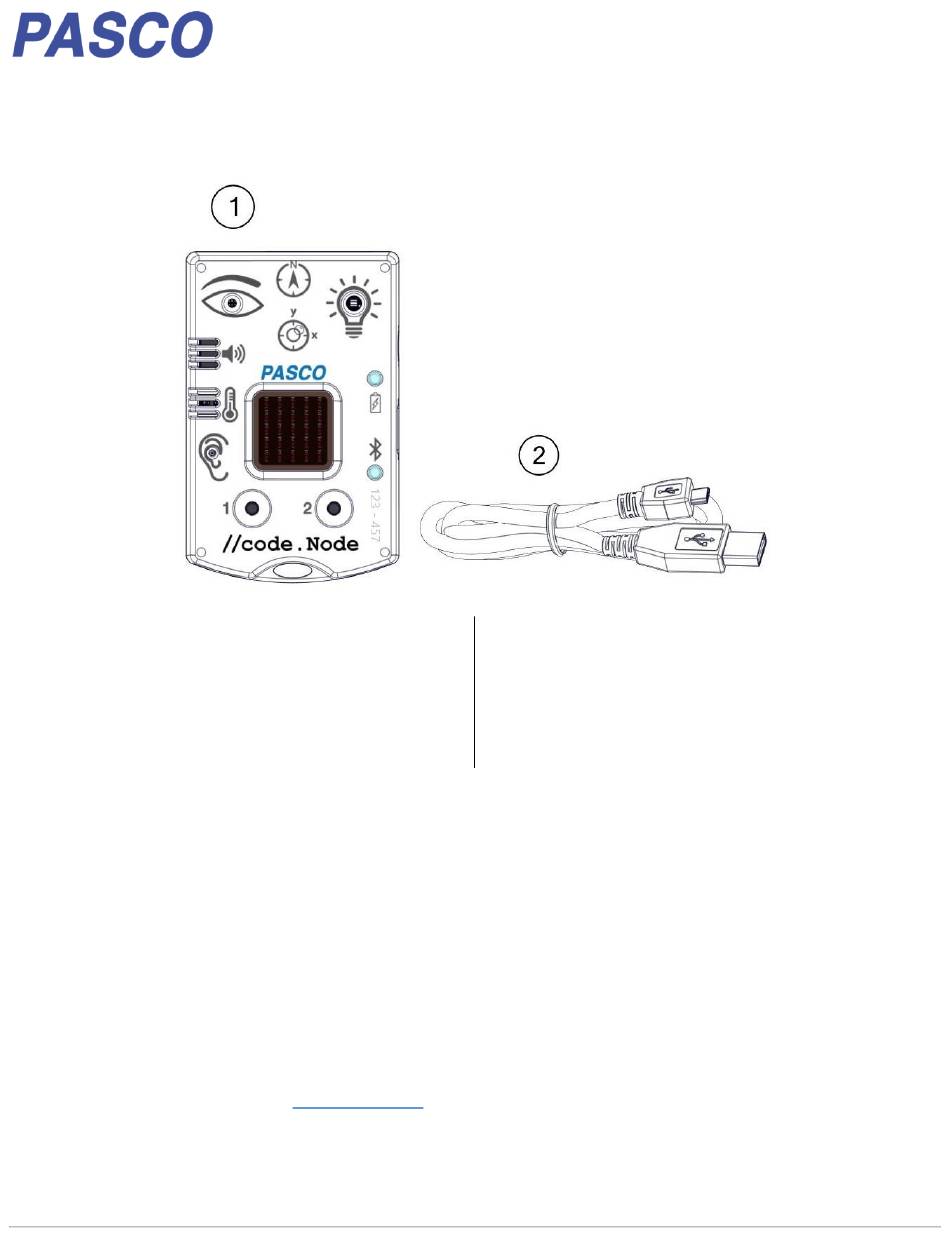

Included Equipment
1
//code.Node
2
Micro USB cable
For connecting the sensor to a USB charger to
charge the battery or a USB port to transmit data.
Overview
The //code.Node is an input-output device that supports coding activities to help teach how sensors work and how code can
be used to create and control a response (output) to a stimulus (input). The //code.Node is an introductory device for STEM
oriented programming activities performed using PASCO software applications. The device contains five sensors and two
momentary push buttons that act as inputs as well as three output signals, enabling students to program how the device
collects and responds to data.
The //code.Node can sense relative light brightness, relative sound loudness, temperature, acceleration, tilt angle, and
magnetic field. These input sensors are included to help teach coding concepts and highlight how collected data can be
analyzed and programmed to create unique outputs involving its speaker, LED light source, and 5 x 5 LED array. The
//code.Node outputs are not exclusive for use only with its inputs; the outputs can be used in code involving any PASCO
sensors and interfaces.
The //code.Node sensors are meant to be used for coding purposes and should not be considered a replacement for science
sensors in labs that use similar sensor measurements; science sensors built to more rigorous specifications for use in
science experiments are available at
800-772-8700
//code.Node
PS-3231
www.pasco.com.
Required Equipment
PASCO Capstone or SPARKvue software is required for
data collection
Product Manual
012-16652A
www.pasco.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PASCO //code.Node
Summary of Contents for PASCO //code.Node
- Page 1 LED light source, and 5 x 5 LED array. The //code.Node outputs are not exclusive for use only with its inputs; the outputs can be used in code involving any PASCO sensors and interfaces.
- Page 2 PS-3231 //code.Node INPUTS SENSOR COMPONENTS Magnetic Field Sensor Acceleration Sensor and Tilt Power button Light Sensor Press and hold for one second to turn on or off. Battery status LED Ambient Temperature Sensor Red blink Battery needs to be recharged soon. Sound Sensor Green solid Battery is fully charged...
- Page 3 The PASCO software pitch (rotation around the y-axis) and roll (rotation around the x-axis) are measured as Tilt Angle -x and Tilt Angle - This 3-in-1 sensor records ambient temperature, y respectively;...
- Page 4 //code.Node //code.Node Outputs Within the Blockly-integrated Code tool, unique coding blocks have been created in SPARKvue and PASCO Capstone for each output of the //code.Node to program and control their effects. NOTE: The use of the //code.Node outputs are not exclusive to its inputs. These outputs can be used in conjunction with all lines of supported PASCO sensors.
- Page 5 PASCO scientific, is prohibited. Trademarks PASCO and PASCO scientific are trademarks or registered trademarks of PASCO scientific, in the United States and/or in other countries. All other brands, products, or service names are or may be trademarks or service marks of, and are used to identify, products or services of, their respective owners.
- Page 6 Using the sensor for the first time The following instructions are intended for SPARKvue users. If you are using PASCO Capstone, follow the instructions on the opposite side of this page. Before using the sensor in the classroom, do the following: (1) charge the battery, (2) install the latest version of SPARKvue, (3) update the sensor firmware.
- Page 7 Using the sensor for the first time The following instructions are intended for PASCO Capstone users. If you are using SPARKvue, follow the instructions on the opposite side of this page. Before using the sensor in the classroom, do the following: (1) charge the battery, (2) install the latest version of Capstone, (3) update the sensor firmware.
