EM‐3534; Wireless Current Module Battery Replacement Instructions
Reference: Battery part number 540‐113; Li‐Poly 1000 mAH
Recommended Equipment: (PS‐3299; Battery Replacement Tool Set)
Step 1:
Position the Sensor on the surface as shown. Note the location of the (4) Phillips
Screws.

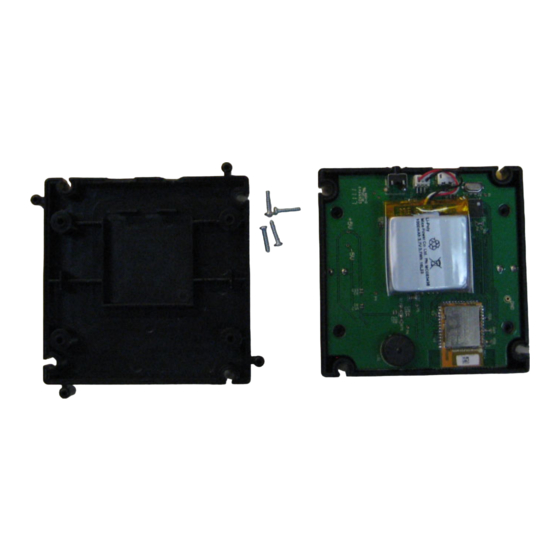

Step 2:
Unscrew and remove the 4 Screws with a Phillips Screwdriver.
PASCO Form Number
013-16100
Description
EM-3534 Battery Replacement Instructions
Date
05-05-22
Page 1 of 2
Revision
B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PASCO EM-3534
Summary of Contents for PASCO EM-3534

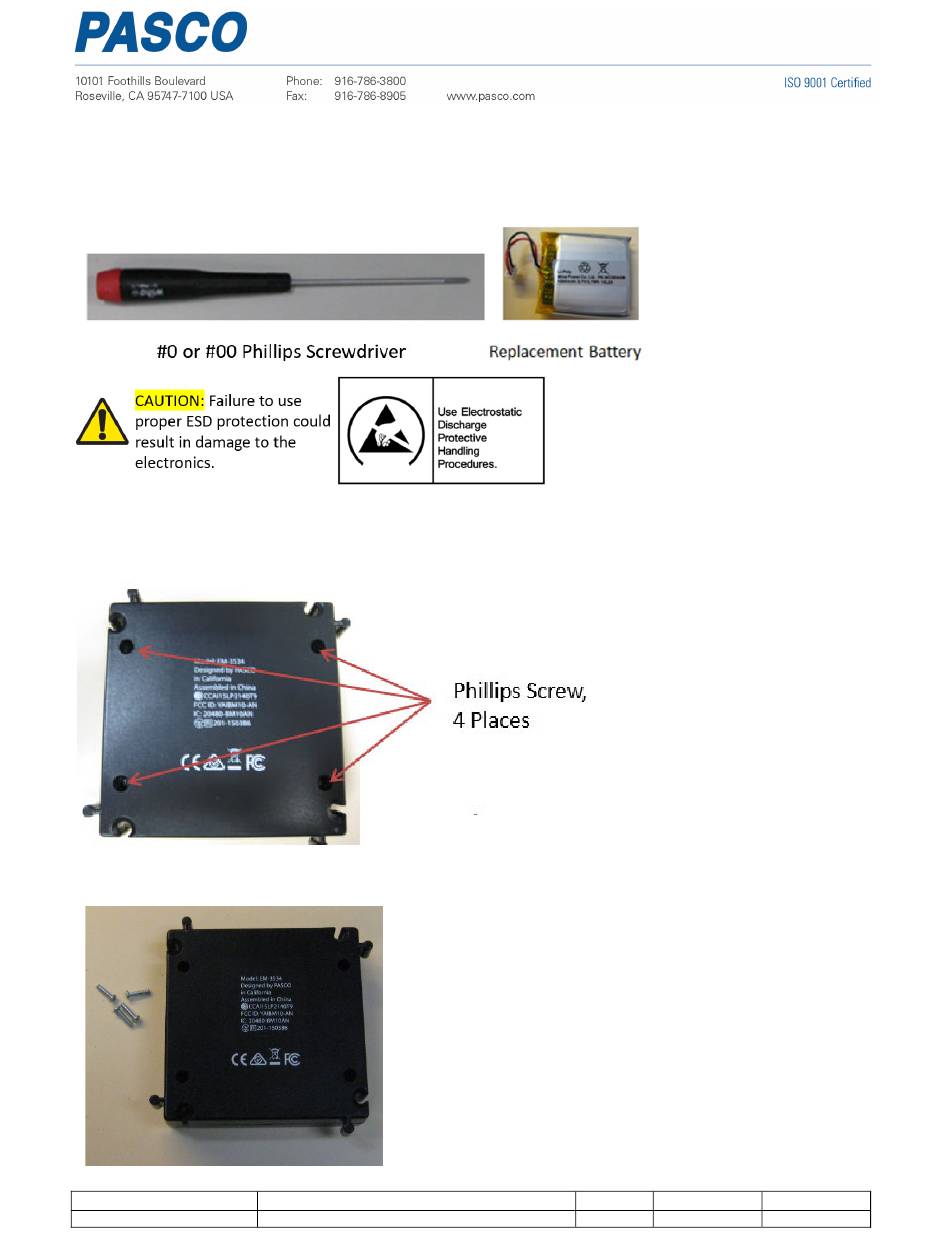

- Page 1 EM‐3534; Wireless Current Module Battery Replacement Instructions Reference: Battery part number 540‐113; Li‐Poly 1000 mAH Recommended Equipment: (PS‐3299; Battery Replacement Tool Set) Step 1: Position the Sensor on the surface as shown. Note the location of the (4) Phillips Screws. Step 2: Unscrew and remove the 4 Screws with a Phillips Screwdriver. PASCO Form Number Description Date Revision 013-16100 EM-3534 Battery Replacement Instructions 05-05-22 Page 1 of 2 ...
