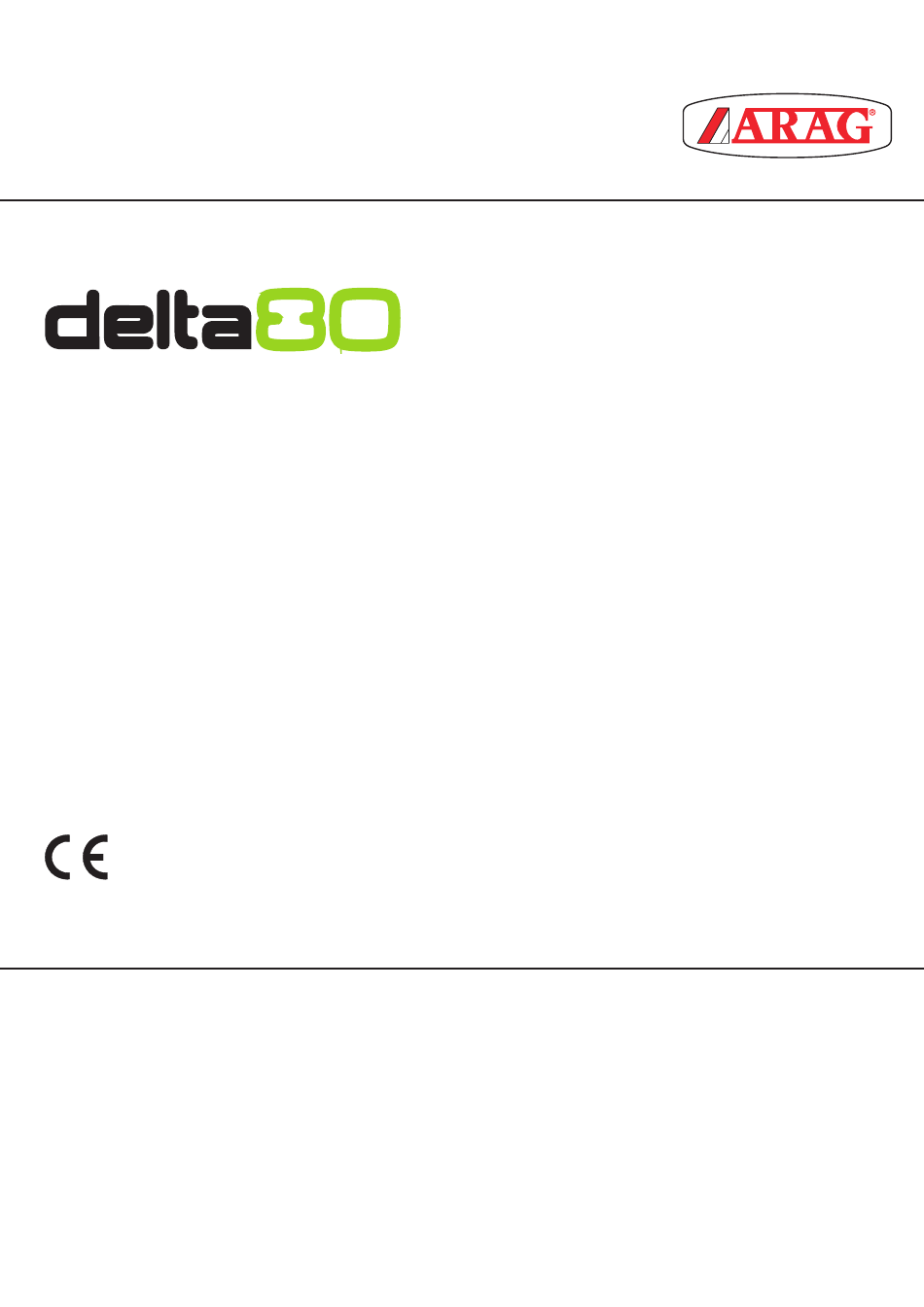

- Page 1 MONITOR DELTA 80 WITH INTEGRATED GPS NAVIGATOR 467500X INSTALLATION...
-
Page 2: Table Of Contents
This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for any future reference; ARAG reserves the right to modify product specifications and instructions at any moment and without notice... -
Page 3: Risks And Protections Before Assembly

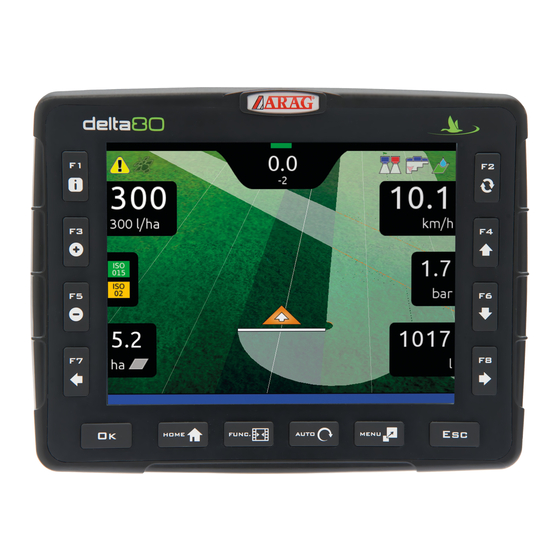

INTENDED USE Delta 80 features a satellite navigator that – through the external GPS receiver – can be used for agricultural applications and navigation. The device you have purchased is a monitor which, when connected to an adequate remote control unit (ECU), makes it possible to control all phases... -
Page 4: Position On Farming Machine
• The Delta 80 monitor must be placed in the control cabin of the farming machine. Observe the following precautions - Do NOT install the monitor in areas where it would be subjected to excessive vibrations or shocks, to prevent any damage or accidental use of the control keys;... -
Page 5: Wiring Connections
• Enable spraying / Reverse The harness that connects Delta 80 to a spraying activation control and/or to the driving direction reading cable is available on the ARAG general catalog. CABLE COLOR... -
Page 6: Accessories
Pendrive The pen drive may be used to exchange data with the Delta 80 monitor. Before use, format the SD board in FAT 32 mode; make sure that the board is not protected and can be read by the system... -
Page 7: Maintenance / Diagnostics / Repairs
- Clean only with a soft wet cloth. - DO NOT use aggressive detergents or products. - DO NOT aim direct water jets. TECHNICAL DATA DESCRIPTION DELTA 80 Display LCD 8,4", 65000 colors, 500 cd/m Rated supply voltage 12 Vdc (9 ÷ 16 Vdc) -
Page 8: 10 End-Of-Life Disposal
GUARANTEE TERMS 1. ARAG s.r.l. guarantees this apparatus for a period of 360 days (1 year) from the date of sale to the client user (date of the goods delivery note). The components of the apparatus, that in the unappealable opinion of ARAG are faulty due to an original defect in the material or production process, will be repaired or replaced free of charge at the nearest Assistance Center operating at the moment the request for intervention is made. - Page 9 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to the internet address www.aragnet.com 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 http://www.aragnet.com...
