ARAG Bravo 400S LT Manual

Computer with integrated gps navigator
Hide thumbs
Table of Contents

Advertisement

Quick Links

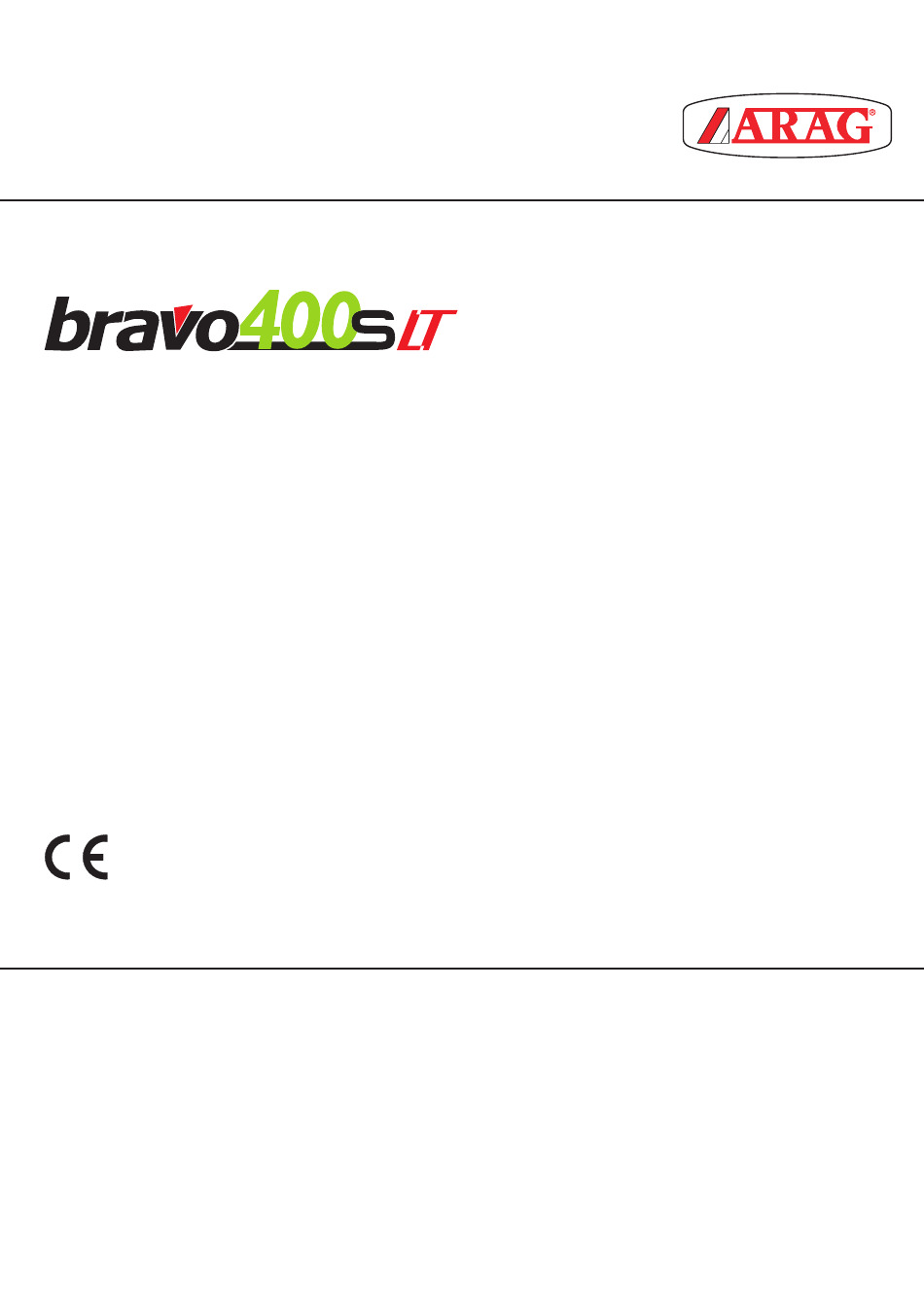

COMPUTER BRAVO 400S LT
WITH INTEGRATED GPS NAVIGATOR
4674L0701
4674L0713
INSTALLATION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bravo 400S LT and is the answer not in the manual?

Questions and answers

Related Manuals for ARAG Bravo 400S LT

Summary of Contents for ARAG Bravo 400S LT

  • Page 1 COMPUTER BRAVO 400S LT WITH INTEGRATED GPS NAVIGATOR 4674L0701 4674L0713 INSTALLATION...

  • Page 2: Table Of Contents

    This manual is an integral part of the equipment to which it refers and must accompany the equipment in case of sale or change of ownership. Keep it for any future reference; ARAG reserves the right to modify product specifications and instructions at any moment and without notice.

  • Page 3: Risks And Protections Before Assembly

    Bravo 400S LT features a satellite navigator that – through the external GPS receiver – can be used for agricultural applications and navigation. Bravo 400S LT is not designed for use on public roads and should only be used on farmland.

  • Page 4: Position On Farming Machine

    INSTALLATION POSITION ON FARMING MACHINE System recommended composition ASSEMBLY DIAGRAM FOR CROP SPRAYER WITH DIAPHRAGM PUMP Legend: Monitor Battery GPS receiver Filling pump Oil-hydraulic unit Flowmeter Main valve External main control Pressure sensor Control valve Speed sensor Filling flowmeter / Level sensor V1 Camera 1 V2 Camera 2...

  • Page 5: Computer Positioning

    Bravo 400S LT must be placed in the control cabin of the farming machine. Observe the following precautions: - Do NOT install the computer in areas where it would be subjected to excessive vibrations or shocks, to prevent any damage or accidental use of the control keys;...

  • Page 6: Bracket Fixing

    WARNING! DO NOT CONNECT HYDRAULIC UNITS OTHER THAN THE SPECIFIED ONES (SEE ARAG GENERAL CATALOGUE). ARAG IS NOT LIABLE FOR ANY DAMAGE TO THE PRODUCT, MALFUNCTION ERRORS AND ANY KIND OF RISK IF THE MODULE IS CONNECTED TO NON ORIGINAL UNITS OR UNITS NOT SUPPLIED BY ARAG.

  • Page 7: Wiring Connections

    • Use of unsuitable cables not provided by ARAG automatically voids the warranty. • ARAG is not liable for damages to the equipment, persons or animals caused by failure to observe the above instructions. General precautions for a correct harness position •...

  • Page 8: Control Unit Valve Connection

    • Use ARAG valves: use of unsuitable valves not provided by ARAG automatically voids the warranty. ARAG is not liable for damage to the equipment, persons or animals caused by failure to observe the above instructions. • All valve connectors must be provided with seals before being connected (Fig. 10).

  • Page 9: Sensor Connection

    • level sensor • filling flowmeter; • RPM sensor. All ARAG sensors use the same type of connector. Connect the sensor connector to the relevant harness; make sure it is correctly fitted and push it until locking it. Fig. 12 Fig.

  • Page 10: Power Supply Connection

    If Bravo 400S LT remains on for a long time with the machine off, the tractor battery could run flat: in case of prolonged breaks of the machine with engine off, make sure the computer is off, too.

  • Page 11: Accessories

    ACCESSORIES SD memory card The SD memory card may be used to exchange data with computer Bravo 400S LT. (Fig. 19). Before use, format the SD board in FAT 32 mode; make sure that the board is not protected and can be read by the system The system is ONLY compatible with SD or SDHC memory cards, up to 8 Gb of memory.

  • Page 12: Maintenance / Diagnostics / Repairs

    - Clean only with a soft wet cloth. - DO NOT use aggressive detergents or products. - DO NOT aim water jets directly. TECHNICAL DATA DESCRIPTION BRAVO 400S LT Display LCD 5,7", 65000 colori, 500 cd/m Rated supply voltage 12 Vdc (9 ÷ 15 Vdc)

  • Page 13: End-Of-Life Disposal

    GUARANTEE TERMS 1. ARAG s.r.l. guarantees this apparatus for a period of 360 days (1 year) from the date of sale to the client user (date of the goods delivery note). The components of the apparatus, that in the unappealable opinion of ARAG are faulty due to an original defect in the material or production process, will be repaired or replaced free of charge at the nearest Assistance Center operating at the moment the request for intervention is made.
  • Page 14 Only use genuine ARAG accessories or spare parts to make sure manufacturer guaranteed safety conditions are maintained in time. Always refer to ARAG spare parts catalog. 42048 RUBIERA (Reggio Emilia) - ITALY Via Palladio, 5/A Tel. +39 0522 622011 Fax +39 0522 628944 http://www.aragnet.com...
