- Page 1 PITCHING 2.0 USER MANUAL Powered by: Rapsodo...
-
Page 2: Table Of Contents
What’s Inside the Box Rapsodo Cloud + Diamond App Product Overview Operating the Monitor Understanding the Monitor LED Displays Operating the Rapsodo Computing Engine (RCE) Understanding the RCE LED Displays Charging the Devices Pairing the RCE and Diamond App Device Placement and Setup... -
Page 3: What's Inside The Box
What’s Inside the Box Monitor Protective Tank & RCE USB Cables & Charger Measuring Tape Monitor Clip Protective Cases... -
Page 4: Rapsodo Cloud + Diamond App
Rapsodo CLOUD + Diamond APP Create a coach account and player profiles at cloud.rapsodo.com. Log in Credentials will be the same for Cloud & Diamond App Rapsodo Diamond App must be downloaded in order to use PITCHING 2.0 Go to the Apple App Store and search... -

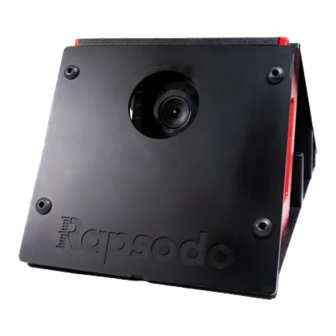

Page 5: Product Overview
Product Overview Monitor Clip Tank... -
Page 6: Operating The Monitor
OPERATING THE MONITOR Turning the Monitor ON To turn the monitor on, press the power button The front LED display will show indicating the monitor is on but not ready to measure The rear LED will show when ready to connect Turning the Monitor OFF Press the power button Front LED light... -
Page 7: Understanding The Monitor Led Displays
understanding the monıtor led dısplays Front LED Display Rear LED Display The front LED display provides information The rear LED display provides information on the monitor status, and will give the on connectivity and battery. This display green light “ ”... -
Page 8: Operating The Rapsodo Computing Engine (Rce)
OPERATING THE RAPSODO COMPUTING ENGINE (RCE) Turning the RCE ON To turn the RCE on, press the power button After 10-15 seconds the power LED will turn on and the RCE will be ready to connect to the monitor Turning the RCE OFF... -
Page 9: Understanding The Rce Led Displays
understanding the rce led dısplays Power Battery Monitor Connection to App RCE and monitor connected. RCE and monitor connected to application, needs calibrated or on ‘Pause Mode’ . Ready to record data. Data processing. RCE switched off and charging. Warning for low battery, please recharge monitor. RCE turned on, not connected to app and monitor. -
Page 10: Charging The Devices
Charging the devices Charging the Monitor The battery can be charged by connecting the included Micro-USB cable into the port on the rear monitor panel. The rear LED will show AMBER indicating the monitor is charging. The rear LED will switch off indicating the device has been sufficiently charged. The LED indication will FLASH RED indicating the battery charge is getting low and the... -
Page 11: Pairing The Rce And Diamond App
PAIRING THE rce and Diamond app Connect the RCE to the monitor via USB to mini USB. Press the power button on the monitor and RCE. Connect to Rapsodo Wi-Fi in iPad settings. Open the Rapsodo Diamond App and press the... -
Page 12: Device Placement And Setup
Connect USB from monitor to RCE. Tank Positioning 2.1. Rapsodo PITCHING 2.0 should be placed 15’6” from the front of home plate and the camera opening should face the pitcher. 2.2. The tank should be placed on an even surface and SHOULD NOT be 15’6”... - Page 13 calıbratıon Select recalibrate from devices tab in bottom right-hand corner. Adjust monitor angles to 20 degrees and 90 degrees. To calibrate the monitor have a person stand on the center of home plate. The red line in the azimuth view should go directly down the middle of home plate.
-
Page 14: Troubleshooting Table
Troubleshooting Table App shows low Charge RCE and monitor separately. monitor battery Results seem Make sure the tank is placed at 15’6” and you have correctly calibrated the monitor. inaccurate Can’t connect Disconnect and reconnect to WI-FI and Diamond App, make sure monitor is green. -
Page 15: Specifications: Ball Flight
Specifications: ball flight Velocity Strike Zone Analysis How fast a pitch is traveling during Instantly see Strike Zone feedback flight, measured in miles per hour while automatically tracking Strike (MPH). Percentage and Heat Map Breakdowns. Spin Rate True Spin Rate The rate at which the ball spins during flight, measured in rotations per minute The spin directly impacting the... -
Page 16: Specifications: Release
Specifications: release Release Height The height of the ball at the Release Angle Release Height The vertical angle at which the ball was The height of the ball at the point of released out of the hand release. Horizontal Angle Release Side The horizontal angle the ball was The distance away from the center of... -
Page 17: Diamond App
APP Requirements: Rapsodo Diamond App. Rapsodo Team Membership. iPads: iPad Pro 2nd Generation or newer. Most recent iOS software. After adding your player roster in Diamond App cloud.rapsodo.com (See Page 2), continue with the following. Starting a Session: See Pairing the RCE and Diamond App (Page 9) and Calibration (Page 11) section of user manual. - Page 18 dIAMOND APP Low Intent: Bullpen where a pitcher will not reach 100%. Can be used for arm maintenanceor pitch development where pitcher is at a lower intensity/volume to feel and track how the ball is moving differently. High Intent: Bullpen where the pitcher faces no live hitters, but the pitcher is throwing at 100%. Flat Ground: Pitcher is not throwing off a mound.
- Page 19 Arrows will start spinning, leave app open and awake until all files have been uploaded in the progress bar. Go to cloud.rapsodo.com, those sessions will now appear under the player. If sessions are not visible, please allow your iPad more time to sync the data.
-
Page 20: General Information
Use In Well-Lit Environments Regulatory notice: Waste electrical and electronic equipment Rapsodo PITCHING 2.0 should be used in well lit locations. Performance may vary in certain lighting conditions, The symbol on the product or its packaging signifies particularly in low light conditions, which may result in that this product has to be disposed separately from incorrect measurements. -
Page 21: Support/Contact
Support/Contact If you have any questions or need any assistance, please reach out to your dedicated account manager, or contact us at: support@rapsodo.com 1.844.772.7763 www.rapsodo.com...
