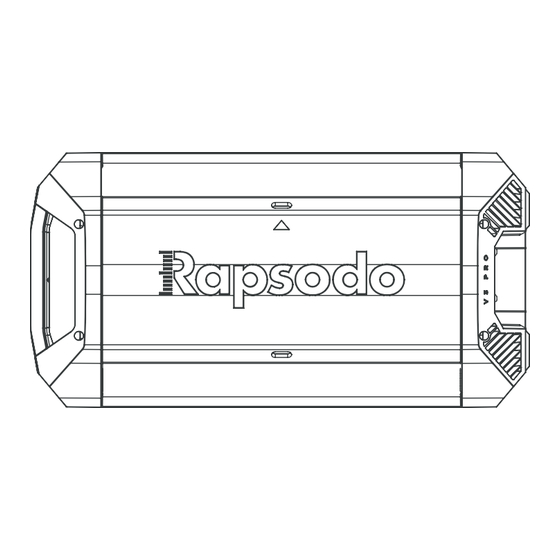

- Page 1 PRO 3.0 USER MANUAL Powered by: Rapsodo...
-
Page 2: Table Of Contents
Contents What’s Inside the Box Cloud + App Overview Operating PRO 3.0 Understanding LED Displays Charging the Device Pairing PRO 3.0 and Diamond App Device Placement and Setup Calibration Specifications Session Types Diamond App 12-15 Game Mode 16-17 General Information... -
Page 3: What's Inside The Box
What’s Inside the Box PRO 3.0 Calibration Board Backpack PRO 3.0 QUICK START GUIDE www.rapsodo.com support@rapsodo.com For additional user information download the PRO 3.0 user manual at www.rapsodo.com/downloads USB-C Charging Cable Measuring Tape Quick Start Guide... -
Page 4: Cloud + App
Create a coach account and player profiles at cloud.rapsodo.com. Log in Credentials will be the same for Cloud & Diamond App The Rapsodo Diamond App must be downloaded in order to use PRO 3.0 Go to the Apple App Store and search... -
Page 5: Overview
Overview Pitching Side Small LED Light Charging Port Top LED Lights Power button Ethernet Port Hitting Side... -
Page 6: Operating Pro 3.0
Operating PRO 3.0 Turning the unit ON Turning the unit OFF To turn PRO 3.0 on, Press the power button Hold down the power button for 3 seconds. Top LED displays will show a sequence of Small LED display will... -
Page 7: Understanding Led Displays
Understanding LED Displays Top LED Lights Small LED Lights Red Flashing Lights Unit is powering on Green Light “Ready” Ready to measure and collect data Blue Light “Processing” Unit is processing data after a valid hit/pitch. Wait for the green light to appear which should take only a few seconds. -
Page 8: Charging The Device
CHARGING THE DEVICE The battery can be charged by connecting the included cable into the USB-C port underneath the handle next to the power button. Unit can be plugged in & charging while in use The Small LED display above the power button will show BLUE when the battery is charging. -
Page 9: Pairing Pro 3.0 And Diamond App
Open Play tab and tap SYNC button on the top right of the white “Select Player” section SYNC button Once you see all your players, go to iPad Settings > Wi-Fi and connect to PRO 3.0 Access Point– shown as “Rapsodo_V3_Serial#” with Password: rapsodowifi... -
Page 10: Device Placement And Setup
Make sure this is a straight, centered line. From the front of home plate, place the near side of PRO 3.0 at 17’ The red arrow on the top of PRO 3.0 should be facing the mound. -
Page 11: Calibration
Ensure the leveling bubble on the top of the board is as close to the center as possible. There are 2 ways to calibrate in Diamond App Settings > Devices > PRO 3.0 > Recalibrate Play > Recalibrate (in bottom right corner) Once Calibration is selected, the top LED Displays will show WHITE, and Diamond App will display calibration streams of all 3 cameras. -
Page 12: Specifications
Specifications PITCHING DATA Side Total Spin Height Top Spin Release Extension Side Spin Release Angle Gyro Spin Spin Height Angle True Spin Velocity Release Velocity Spin Efficiency Trajectory 3D Trajectory Spin Axis Side at Plate Seam Orientation Strike Position Height at Plate Vertical Trajectory Horizontal Trrajectory Break... -
Page 13: Session Types
Session Types PRO 3.0 MODES HITTING PITCHING Certified Batting Practice Live Tee Work Soft Toss Game Mode Low Intent High Intent Pitch Design Rehab In Game... -
Page 14: Diamond App
APP Requirements: Rapsodo Diamond App Rapsodo Team Membership iPads: iPad Air 2 or newer Most recent iOS software After adding your player roster in Diamond App or your online cloud account (pg. 2), continue with the following. Starting a Session: See pairing and calibration section of user manual. - Page 15 Game Mode: Interactive, video-game like environment, where players can practice specific challenges like target practice and situational hitting. PRO 3.0 ONLY: Live on Live BP: Batting practice session with paired incoming pitch data. Tosser must be at full pitching distance.
- Page 16 dIAMOND APP Live on Live Game: Game or scrimmage session where hitting and pitching data are being recorded together and paired. BP with Pitching Machine: Batting practice off machine, where incoming pitch data is being recorded. Pitching machine must be at full pitching distance. Views: There are 3 different screens to view when using Diamond app.
- Page 17 Finish session in bottom right-hand corner. Connect to Internet (Wi-Fi) Open Rapsodo Diamond App go to Settings > Upload Progress > And select the arrows in the top left corner. Arrows will start spinning, leave app open and awake until all files have been uploaded in the progress bar.
-
Page 18: Game Mode
Minimum iPads: iPad Pro, iPad 7th generation, iPad 8th generation, iPad 9th generation Getting Started: Turn on Rapsodo Hitting but do not connect to Rapsodo wi-fi. While connected to home wi-fi open Rapsodo Diamond App. Go to settings > Subscription > License > Link Device Once Link Device is selected, your RCE will be in the available devices. - Page 19 Once sessions appear scroll and select ‘Game Mode’. Screen should switch to all blue. Do not exit out of Diamond app but return to iPad home screen and open Rapsodo Game Mode. Once Game Mode is open, pull up from the bottom middle of your iPad screen to show the toolbar.
-
Page 20: General Information
You need to be aware of these kinds of products in the environment where Rapsodo PRO 3.0 is used, as they may cause interferences. -
Page 21: Support/Contact
Support/Contact If you have any questions or need any assistance, please reach out to your dedicated account manager or contact us at: Email: support@rapsodo.com Phone: 1.844.772.7763 www.rapsodo.com...
