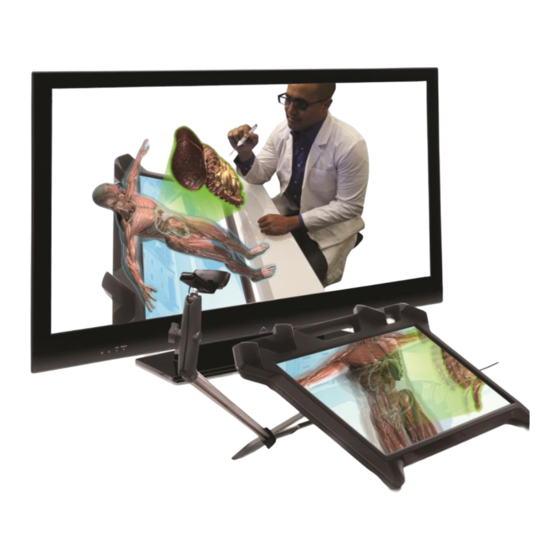

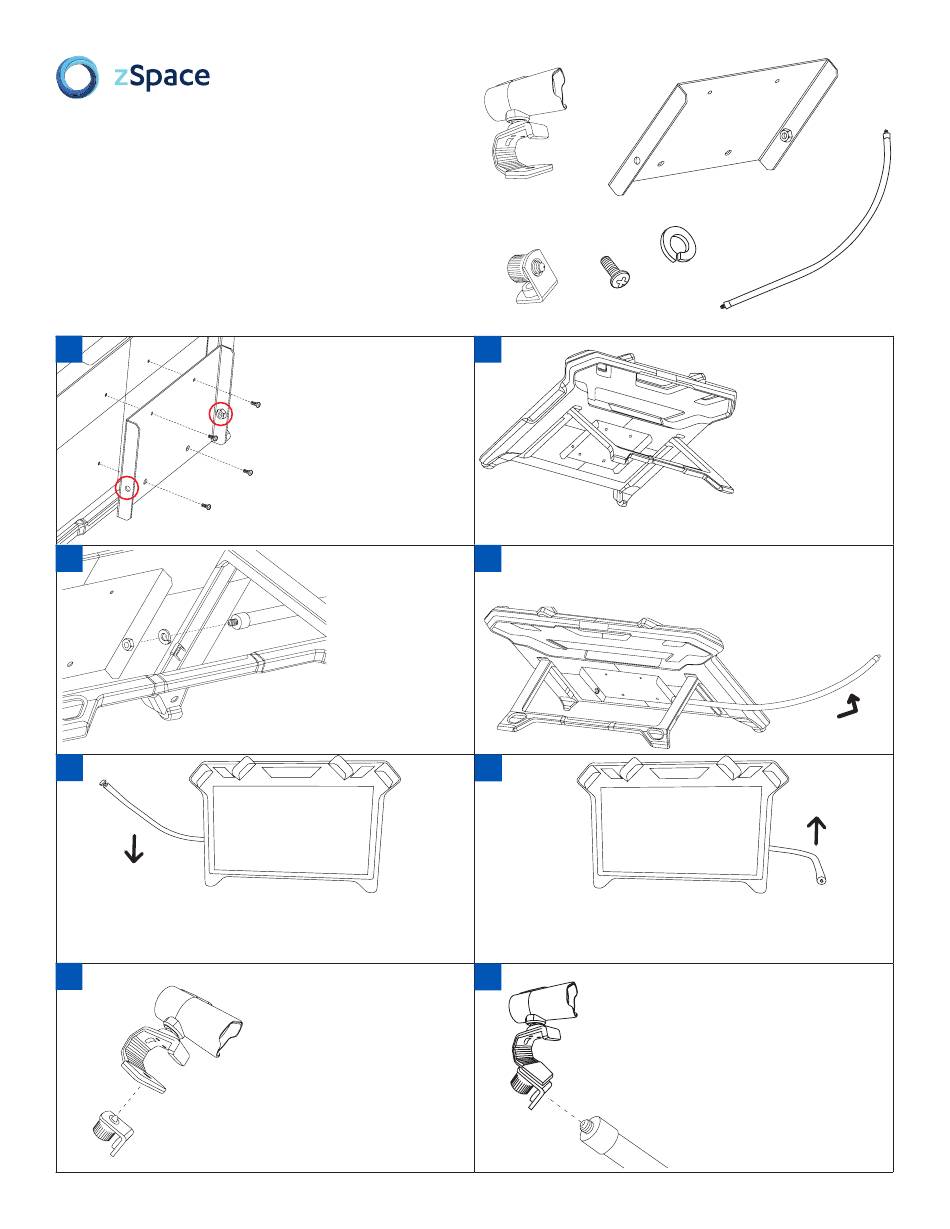

zView Assembly Instructions

for zSpace 200
1
3
5
t
For left side mount, have hose biased low. Once webcam and
L-bracket are installed, hose will be brought down to fine tune
viewing location. In doing so, hose will further tighten on to
knurled nut.
7
Align bracket over the
4 threaded holes.
Insert and tighten the
4 M4 screws.
When aligning, make sure
threads are on lower half.
Insert flexible tubing and lock washer
between the back panel and U stand.

Thread tubing into the bracket.

Thread webcam onto L-bracket.

1x
4x
1x
2
4
Bend flexible housing to position that will allow web
cam to have clear view of user's hand and the screen.
6
For right side mount, have hose biased low. Once webcam and
L-brakcet are installed, hose will be brought up to fine tune
viewing location. In doing so, hose will further tighten on to
knurled nut.
8
Thread L Bracket onto threaded
stud. May take several tries to
ensure camera viewing angle of
screen is good.
770-00018-01
1x
1x
Pull U stand out
before threading in
the flexible tubing.
Pull out to one of the
3 locking positions.
Preferably the 30
degree viewing angle
GUIDE, QUICK START, ZVIEW II
1x
REV G
