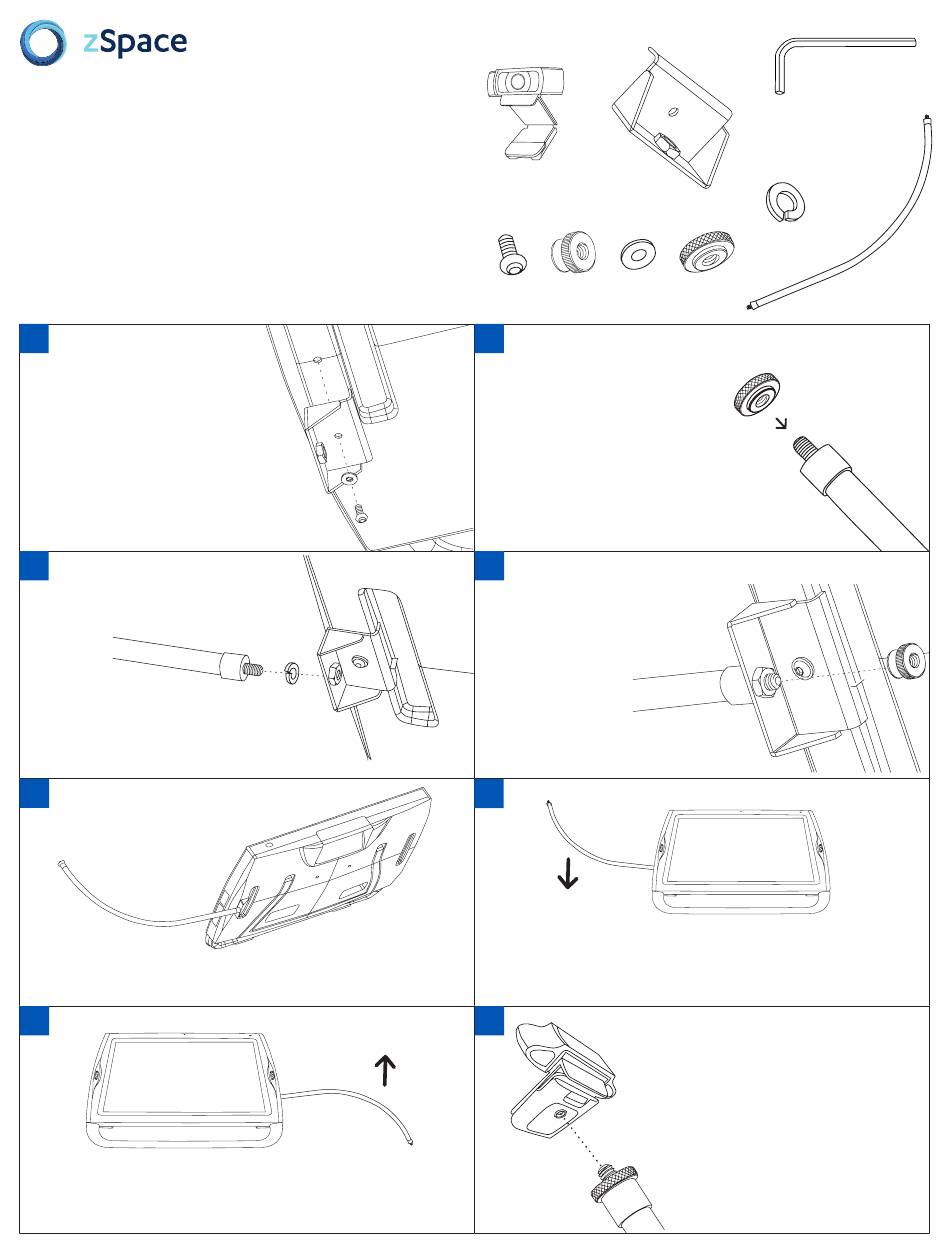

zView Assembly Instructions
for zSpace 300
1
Align bracket to M4
threaded hole. Insert and
tighten the washer and
button head cap screw
with provided hex key.
*Instructions are for assembling on left side
(referencing facing the display).
Please mirror for right side assembly.
3
On the other end, place lock
washer on threads and thread
flexible hosing through the
bracket's ¼-20 threaded hole.
5
Bend flexible hosing to position that will allow webcam
to have clear view of user's hand and screen.
7
For right side mount, have hose biased low. Once webcam
is installed, hose will be brought up to fine tune viewing
location. In doing so, hose will further tighten on knurled nut.
1x
1x
1x
1x
1x
2
Thread knurled nut onto the threaded
end until flush with bottom.
4
Thread knurled
nut with flange on
the other side until
hand tight.
6
For left side mount, have hose biased high. Once webcam
is installed, hose will be brought up to fine tune viewing
location. In doing so, hose will further tighten on knurled nut.
8
Thread webcam onto 1/4"-20 threads.
770-00023-02 REV D
1x
1x
1x
GUIDE, QUICK START, ZVIEW III, ZSP300
1x

Advertisement

loading
Need help?

Need help?

Do you have a question about the zView and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for zSpace zView

  • Page 1 For right side mount, have hose biased low. Once webcam is installed, hose will be brought up to fine tune viewing location. In doing so, hose will further tighten on knurled nut. 770-00023-02 REV D GUIDE, QUICK START, ZVIEW III, ZSP300...
  • Page 2 Straighten the flexible tubing and retighten the hose’s threads onto the bracket before rebending/positioning. Connect the webcam’s USB cable into the display monitor’s port. For access to necessary zView Software, please go to zspace.com/login and register for a zSpace account. Upon completion of registration, please send your username to orders@zspace.com to authorize that account for access to zView.
