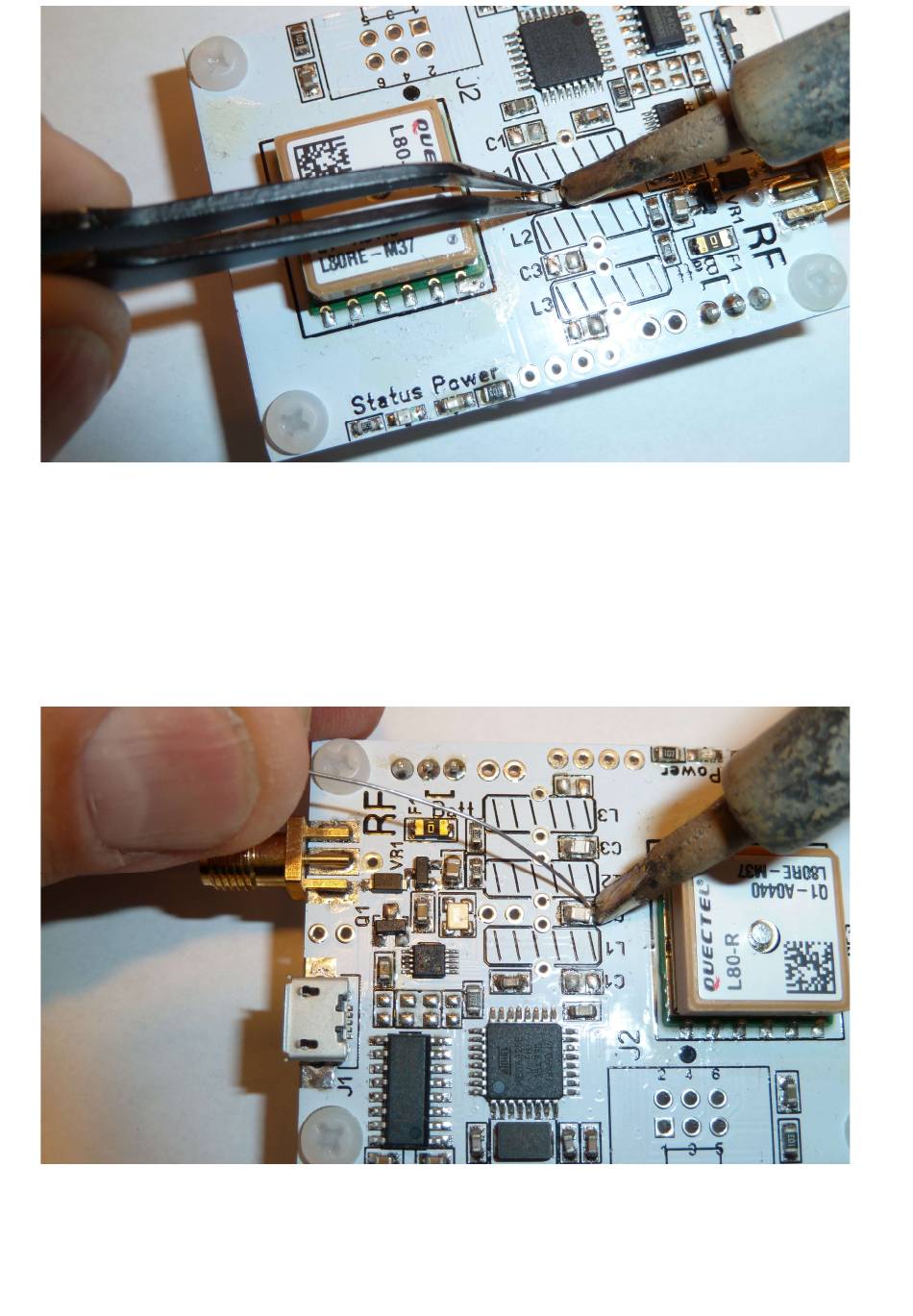

Do this for both capacitors (C2 & C3).
Now that innermost two capacitors are fixed and soldered to one side let's go ahead and solder the other pad
as well.
You might want to turn the board around to get the best working angle.
Be quick when heating and applying solder so you avoid melting the opposite side or else the cap might come
lose and move about on the board.
Document version 1.1
Page | 7
