Verifying the output
Connect the board to a PC and start the configuration program.

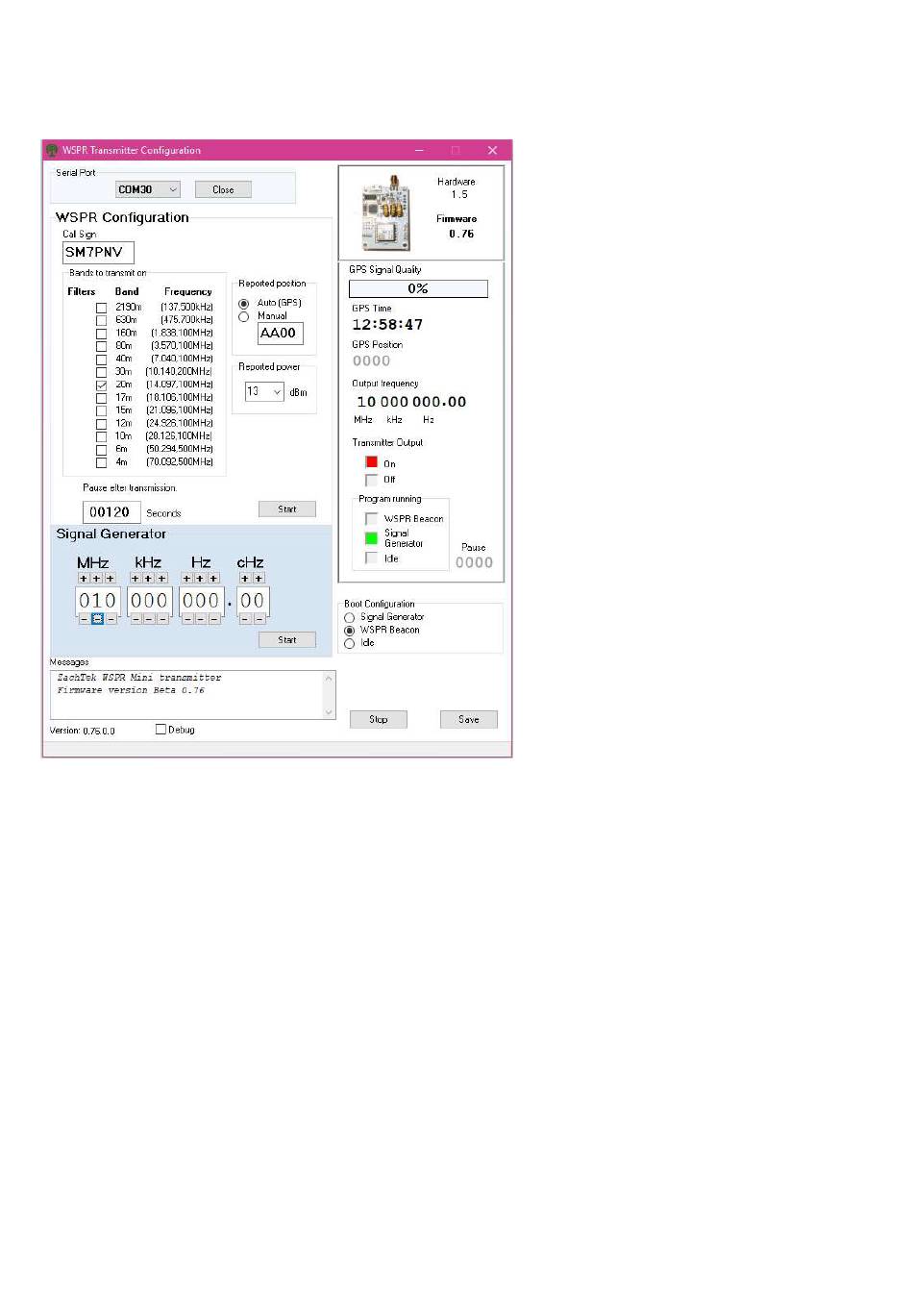

Set it in Signal generator mode and pick the correct frequency, in the screenshot below I am testing a 30m
filter so I have set the signal generator to 10MHz
Document version 1.1
Page | 14
