Quick Guide for WSPR Desktop transmitter
Setting the configuration for the Transmitter.
1. Download and install the Configuration software from my web
www.zachtek.com/download

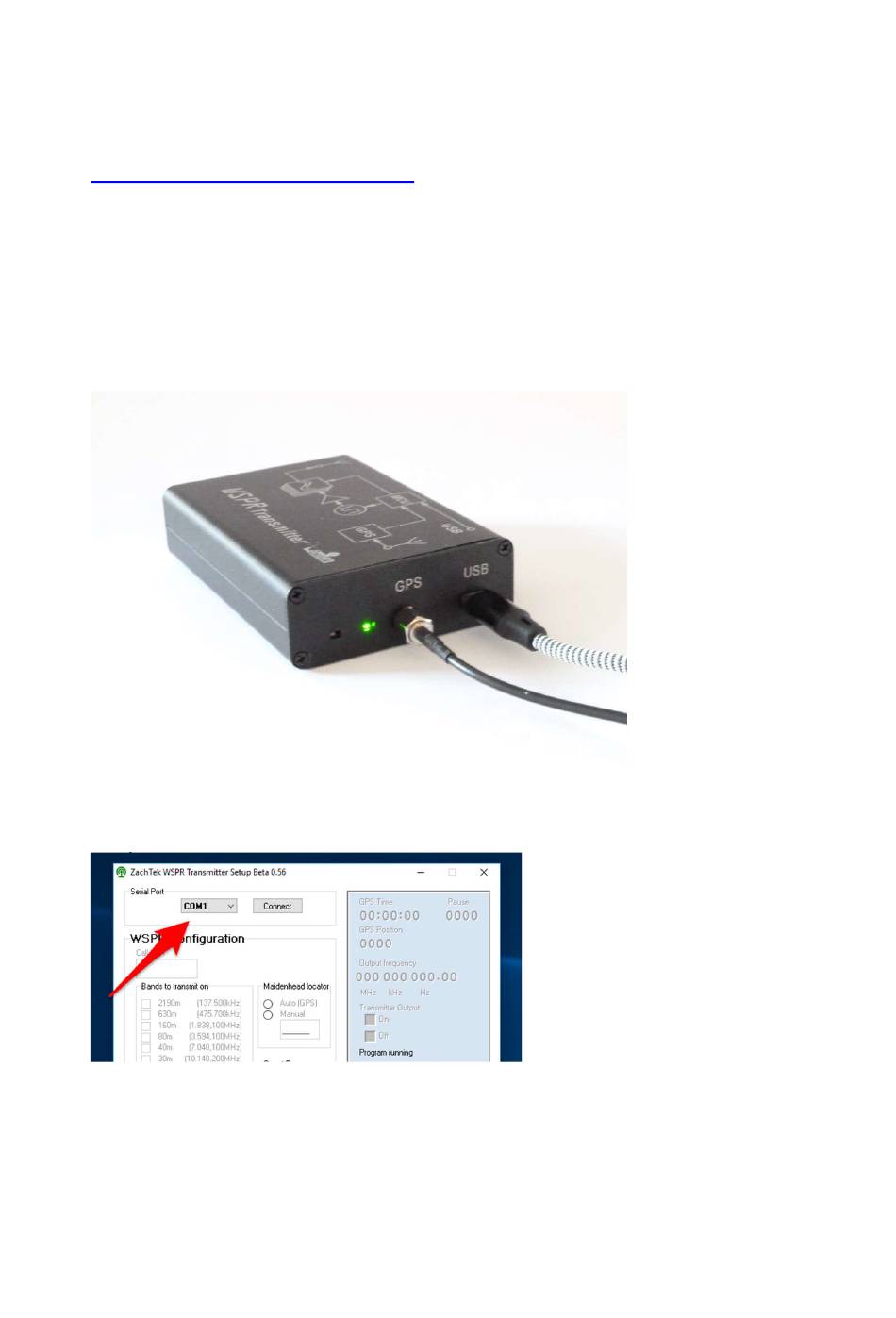

2. Connect the USB port of the Transmitter to a PC with the USB
cable and connect the included GPS antenna to the GPS input.
Put the GPS puck near a window to get a good GPS signal

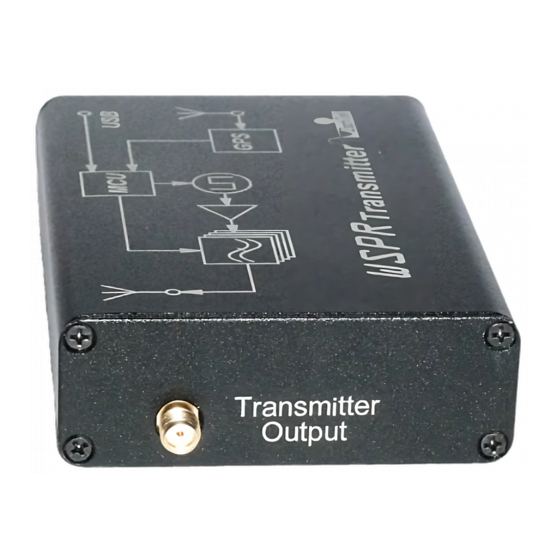

3. On the other side of the box connect a suitable HF antenna to the
port marked Transmitter Output
4. Start the configuration software and choose a Serial port from the
drop down list.
5. Click the "Connect" button. If the serial port was the correct one
then the software will pull data from the Transmitter and display
the data from it in the Software.
If you have several serial ports in your PC, you may have to try to
connect to each of them in order until you find the right one.
