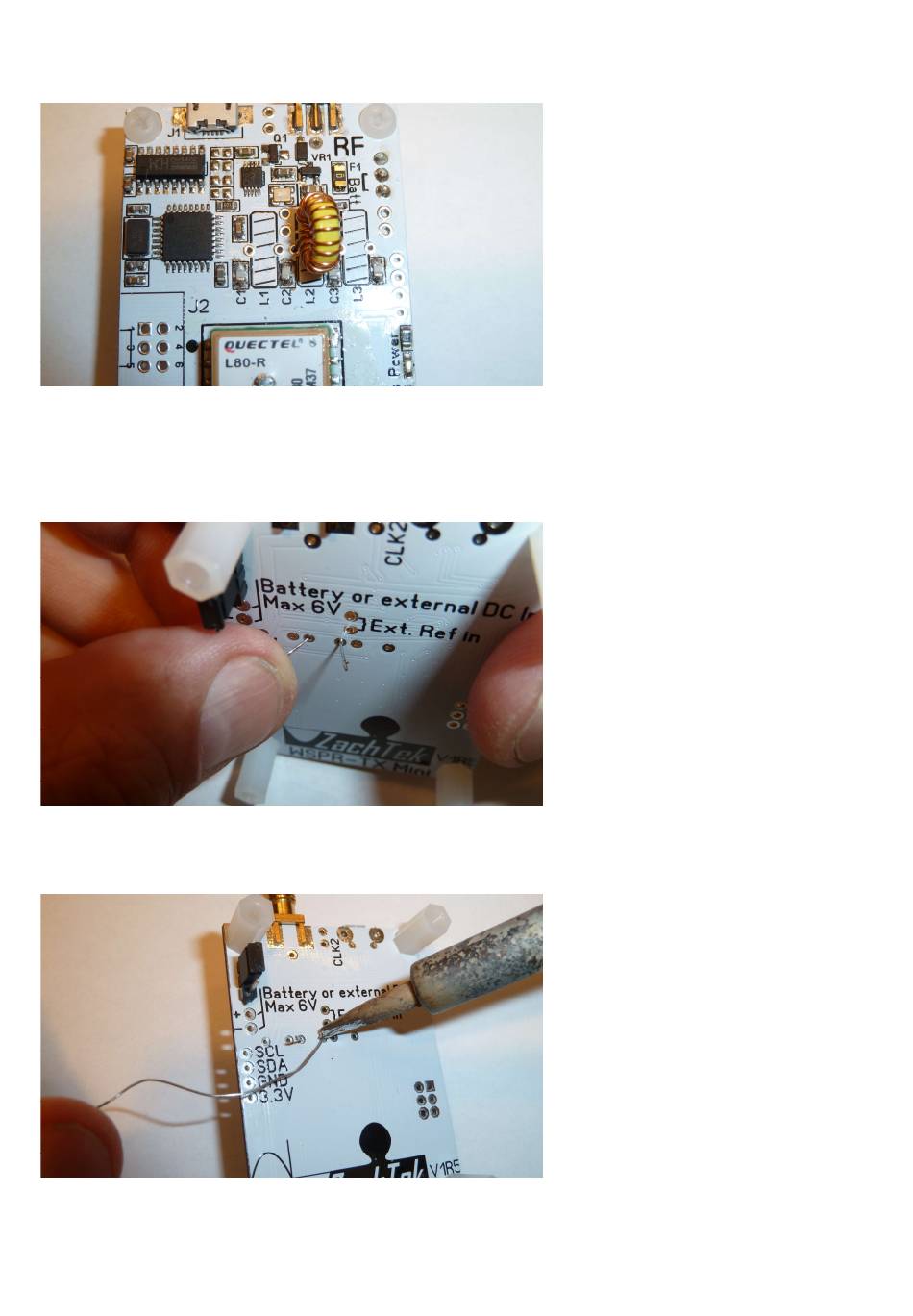

Solder L2 to the board
You place it on top of the board and solder it on the underside so you have to be able to turn the board up-
side-down without the toroid falling out.
You can hold the toroid in place in some way or you can bend the leads on the underside, use whatever works
for you.
Solder the two leads.
Document version 1.1
Page | 11
