Dynapro Tipmatic Plus
71700-00 – 2009/11
Montageanleitung / Mounting Instruction
Schubkasten / Drawer box
+0
LSB = (LW - 42)
-1.5
max. 16
21
21
LW
Alle Maßangaben in mm
Technische Änderungen vorbehalten
Dimensions in mm
The right to technical modifications and developments is reserved
LSB
Lichte Schubkastenbreite / Inside drawer width
SK
Schubkastenlänge / drawer length
NL
Nennlänge / nominal length
LW
Lichte Weite des Korpus / Inside cabinet width
X
Mindesteinbautiefen / Minimum installation depth
KV
Korpusvorderkante / Front edge of cabinet
HV
Höhenverstellung / Height adjustment
SV
Seitenverstellung / Side adjustment
NV
Neigungsverstellung / Tilt adjustment
FV
Frontspaltverstellung / Front gap adjustment
Bohrlehrenempfehlung / Boring jig recommendation
Für Schubkästen / For drawer boxes
Artikel-Nr. / Item No.
F146109874299
Für Korpusschiene / For cabinet profile
Artikel-Nr. / Item No.
F146109873299
Für Verriegelungseinheit Tipmatic Plus
For locking device Tipmatic Plus
Artikel-Nr. / Item No.
F146109875299
www.grass.at, info@grass.eu
9:36 Uhr
Seite 1
Mindesteinbautiefe = X /
Minimum installation depth = X
X = NL + 25
SK = NL - 10
±0.5
4.5
min. 12
±1.5
37
X = NL + 25
Rastkupplung / Front bracket
Vorbohren erforderlich Ø 2,5 / Pre-drilling required Ø 2.5
min. 35
HV +3.5
19 23
SV
±1.5
min. 55
Spanplattenschraube Ø 3,5 x 25 mm
Chipboard screw Ø 3.5 x 25 mm
25
19
23
Panhead Schraube Ø 3,5 x 40 mm
Euroschraube Ø 6 x 14,5 mm
Panhead screw Ø 3.5 x 40 mm
Euro screw Ø 6 x 14.5 mm
14.5
40
Innenschubkasten/ Inset drawer: X = NL + 52
37
4.5
±1.5
SK = NL - 10
±0.5
max. 19
27
X= NL + 52
Verstelladapter Tipmatic Plus /
Adjustment adapter Tipmatic Plus
Vorbohren erforderlich Ø 2,5 / Pre-drilling required Ø 2.5
42
7
10
min. 35
NV + 4
Spanplattenschraube Ø 3,5 x 16 mm
42
Chipboard screw Ø 3.5 x 16 mm
7
16
min. 35
21
21
4
Befestigung für Korpusschienen, Verriegelung und Verstelladapter Tipmatic Plus (Toleranz ±0,3)
Mounting positions for cabinet profiles, locking device and adjustment adapter Tipmatic Plus (tolerance ±0,3)
Vorbohren erforderlich Ø 5 / Pre-drilling required Ø 5
KV
18
9
23
9
10
28
37
NL + 15.5
NL + 15.5
NL + 15.5
NL + 15.5
X = NL + 25
NL + 15.5
NL + 15.5
X = NL + 25
dynapro
40 kg
KV
NL + 15.5
28
250 - 320
350 - 380
400 - 450
480 - 520
550
60 kg
KV
NL + 15.5
28
450 - 480
500 - 580
600 - 650
1 / 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Dynapro Tipmatic Plus and is the answer not in the manual?

Questions and answers

Summary of Contents for GRASS Dynapro Tipmatic Plus

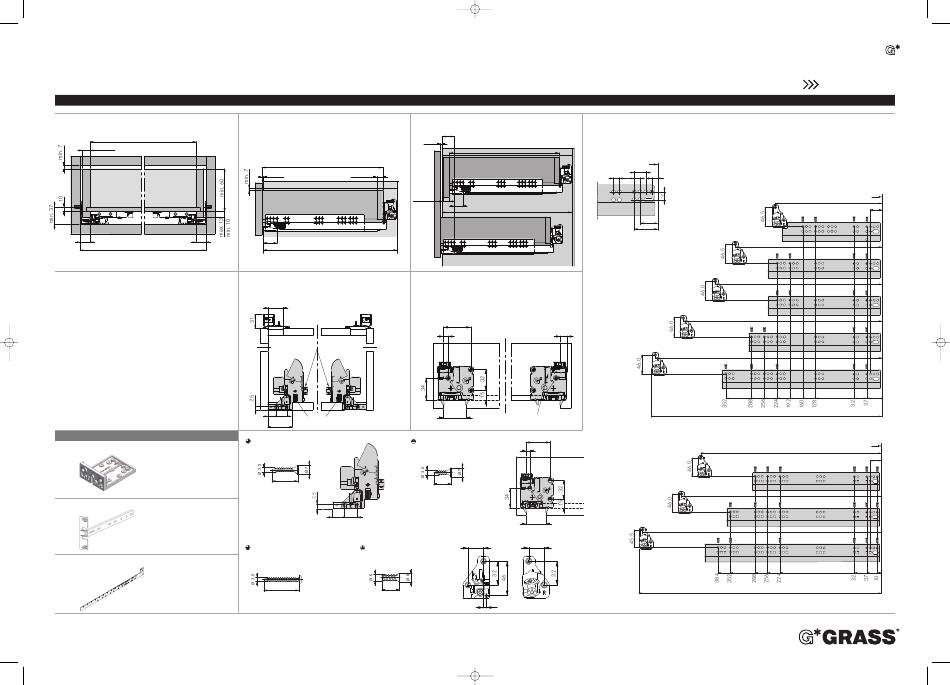

  • Page 1 71700-00_Dynapro_tipplus:Montage_Dynapro 05.11.2009 9:36 Uhr Seite 1 Dynapro Tipmatic Plus dynapro 71700-00 – 2009/11 Montageanleitung / Mounting Instruction Mindesteinbautiefe = X / Schubkasten / Drawer box Innenschubkasten/ Inset drawer: X = NL + 52 Befestigung für Korpusschienen, Verriegelung und Verstelladapter Tipmatic Plus (Toleranz ±0,3) Minimum installation depth = X Mounting positions for cabinet profiles, locking device and adjustment adapter Tipmatic Plus (tolerance ±0,3)
