QUICK START GUIDE
TROJAN

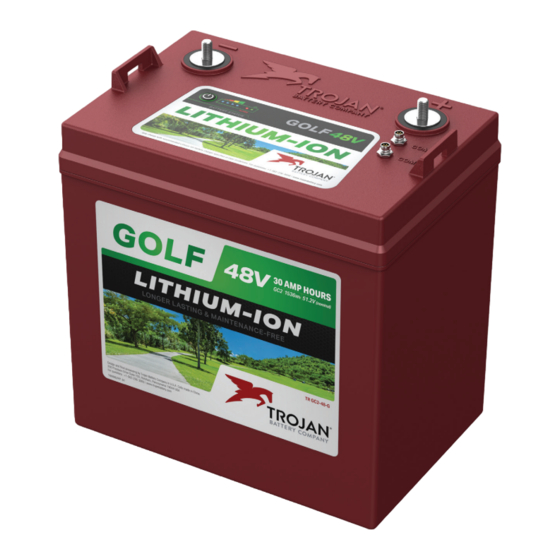

GC2 48V LITHIUM-ION BATTERY
®
TOOLS NEEDED
13mm socket
Voltmeter
(optional)
Eye protection
Insulated
& gloves
torque wrench
Lifting Strap
Cables
(recommended)
WHAT'S IN THE BOX
· Trojan
®
GC2 48V Lithium-Ion Battery
· Terminal Hardware
· Quick Start Guide
Less maintenance
Long lasting
Optimized for your golf vehicle
BATTERY INTERFACE
A. Status Button
B. Negative Terminal (M8 size)
C. Battery Status Indicators (SoC)
D. Positive Terminal (M8 size)
E. Communications Port I/II
F. Lifting Brackets
A
F
B
C
D
E
F
Advertisement
Table of Contents
Related Manuals for Trojan GC2
Summary of Contents for Trojan GC2
- Page 1 WHAT’S IN THE BOX · Trojan ® GC2 48V Lithium-Ion Battery · Terminal Hardware · Quick Start Guide QUICK START GUIDE Less maintenance Long lasting Optimized for your golf vehicle TROJAN GC2 48V LITHIUM-ION BATTERY ® TOOLS NEEDED BATTERY INTERFACE A.
- Page 2 · · batteries. This includes sources of Use a lifting strap to attach to Place GC2 48V Lithium-Ion in Remove protective terminal · Do not attempt to open the battery case. lifting brackets on battery for golf vehicle battery compartment.
- Page 3 ©2021 Trojan Battery Company, LLC. All rights reserved. Trojan Battery Company is not liable for damages that may result from any information provided in or omitted from this publication, under any circumstances. Trojan Battery Company reserves the right to make adjustments to this publication at any time, without notice or obligation.
