FREQUENTLY ASKED QUESTIONS
GENERAL
What is a BMS and its purpose?
What Lithium chemistry is used?
My vehicle came with 8V or 12V
batteries, but the Trojan GC2 48V
Lithium-Ion Battery is 48V, what
is the difference?
How do you read the date codes
on the batteries?
Lithium-Ion batteries are made up of multiple small cells connected together to
provide the voltage and current needed for the application. The Battery Management
System or "BMS" is responsible for keeping these cells working in unison so that
they are charged and discharged correctly. Lithium-Ion cells are more sensitive to
overcharge and undercharge conditions than many other battery chemistries. The
BMS monitors the charge and discharge of the battery to ensure the battery operates

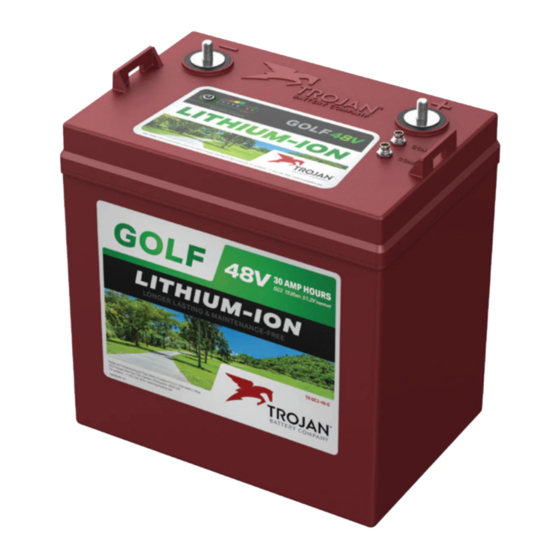

safely. For the Trojan GC2 48V Lithium-Ion Battery, Trojan developed a BMS that is
able to monitor individual cells, internal battery temperatures, state of charge, state
of health plus charging voltage and current to provide the safest and most reliable
operation possible.
The Trojan GC2 48V Lithium-Ion Battery uses Lithium-Iron-Phosphate cells.
Most low-speed electric vehicles operate on 36-48V DC, but traditional lead-acid
batteries are designed and built to be 6, 8, or 12V for portability and to make them
more universal. When they are installed into a 36 or 48V application, these batteries
are connected together in series to increase the available voltage to match the
requirements of the vehicle. The Trojan GC2 48V Lithium-Ion Battery is designed to
work with 48V vehicles without using series connections. This provides increased
reliability over configurations that use series connections because each battery can
power the vehicle independently, where one bad battery in a series connection can
reduce the performance of the entire system.
There is no date code on the Trojan GC2 48V Lithium-Ion Battery. The manufacturing
date is marked on the sticker with the serial number on the side of the battery.
Trojan Battery Lithium-Ion FAQ Guide Rev 06/20/2022
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Trojan GC2 48V
Summary of Contents for Trojan GC2 48V
- Page 1 BMS monitors the charge and discharge of the battery to ensure the battery operates safely. For the Trojan GC2 48V Lithium-Ion Battery, Trojan developed a BMS that is able to monitor individual cells, internal battery temperatures, state of charge, state of health plus charging voltage and current to provide the safest and most reliable operation possible.
- Page 2 14°F (-10°C) and 131°F (55°C). How long will this battery last? The Trojan GC2 48V Lithium-Ion Battery has an expected life of at least eight years or 4,000 cycles to 70% depth of discharge. Expected life is per manufacturer guidelines.
-
Page 3: Installation
SAFETY Are there hazardous materials The Trojan GC2 48V Lithium-Ion Battery is a sealed battery so there is no risk of inside the battery? contact with the internal components under normal operation. 80% of the cells are solid and only 2% of the contents are corrosive. Refer to the SDS for a breakdown of the components within the battery. -
Page 4: Maintenance
See the Trojan GC2 48V Lithium-Ion Battery User's Guide. One unique feature of the GC2 48V is the ability to put the battery into Sleep or Storage mode. This is recommended during installation because it will eliminate voltage to the terminals, making installation safer. - Page 5 I DO NOT have to check periodically you perform a visual inspection of the battery regularly. or what recommended actions Follow storage and maintenance according to the GC2 48V Lithium-Ion User's Guide should I take? and warranty. What do the LEDs mean? The battery has six LEDs that will help the user determine the battery's condition.
-
Page 6: Lithium-Ion
To ship the GC2 48V, the battery must be packaged in a UN Rated and marked 4G Fiberboard Box with Y25 Weight. It must be secured and prevented from moving freely within the box using anti-static bubble wrap or foam. - Page 7 5x. my golf car for long period of time? This allows the GC2 48V to be stored for up to six months as long as it is placed into storage mode with more than 25% state of charge.
- Page 8 Do not mix with lead-acid batteries when recycling. ©2022 Trojan Battery Company, LLC. All rights reserved. Trojan Battery Company is not liable for damages that may result from any information provided in or omitted from this publication, under any circumstances. Trojan Battery Company reserves the right to make PN 10000782 adjustments to this publication at any time, without notice or obligation.
