Instrument Description - Fnirsi -S1 Instruction Manual

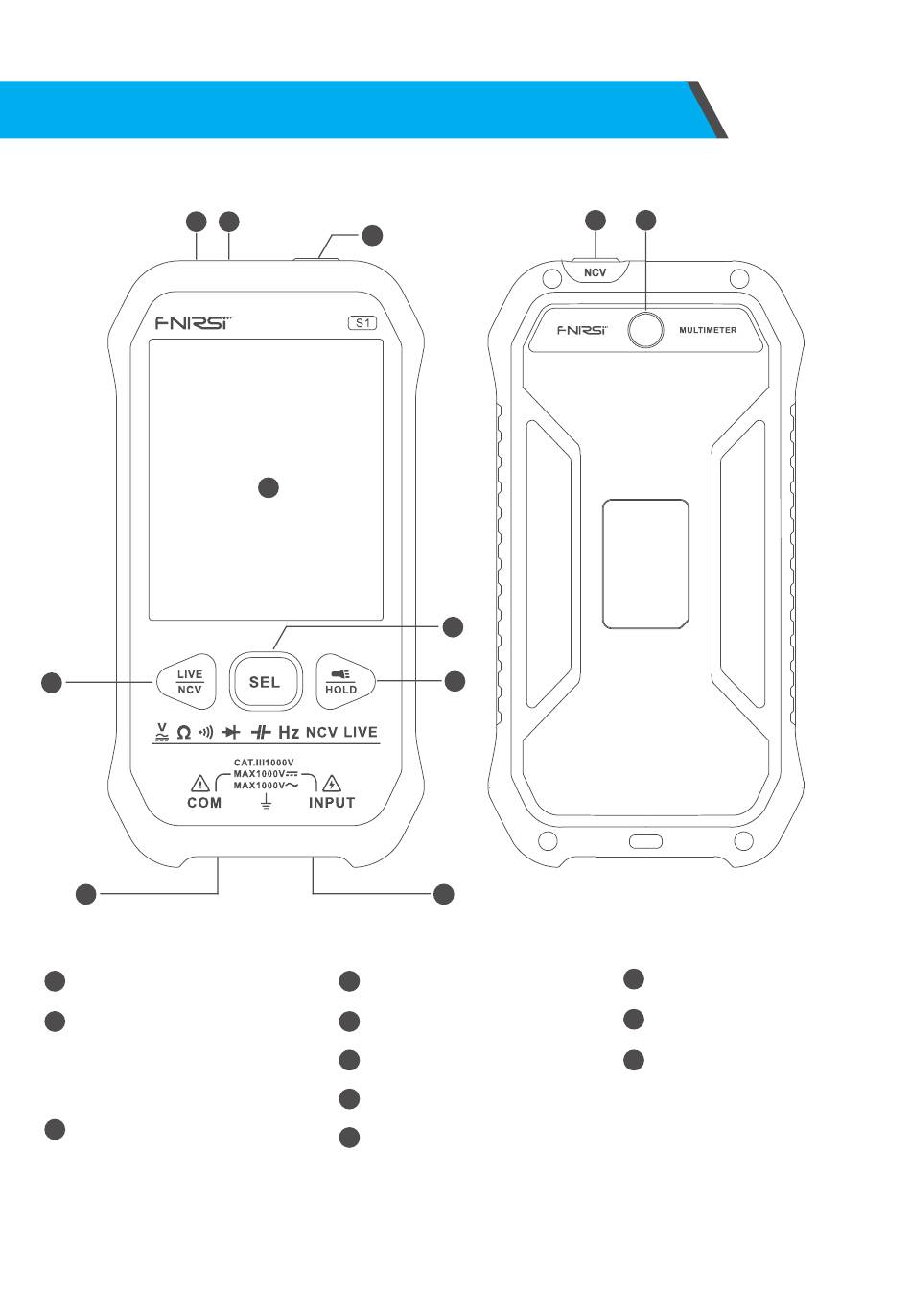

3.Instrument Description

1
5
8
Charging port (5V-1A)
1
Charging indicator
2
(red light for charging,
green light for full)
On/Off Button
3
2
3
4
LCD Monitor
4
NCV and LIVE buttons
5
SEL button
6
Data hold and flashlight buttons
7
black test pen input
8
10
6
7
9
4
11
red test pen input
9
NCV sensing area
10
flashlight
11
