Summary of Contents for Pride Mobility SILVER BOOM 250

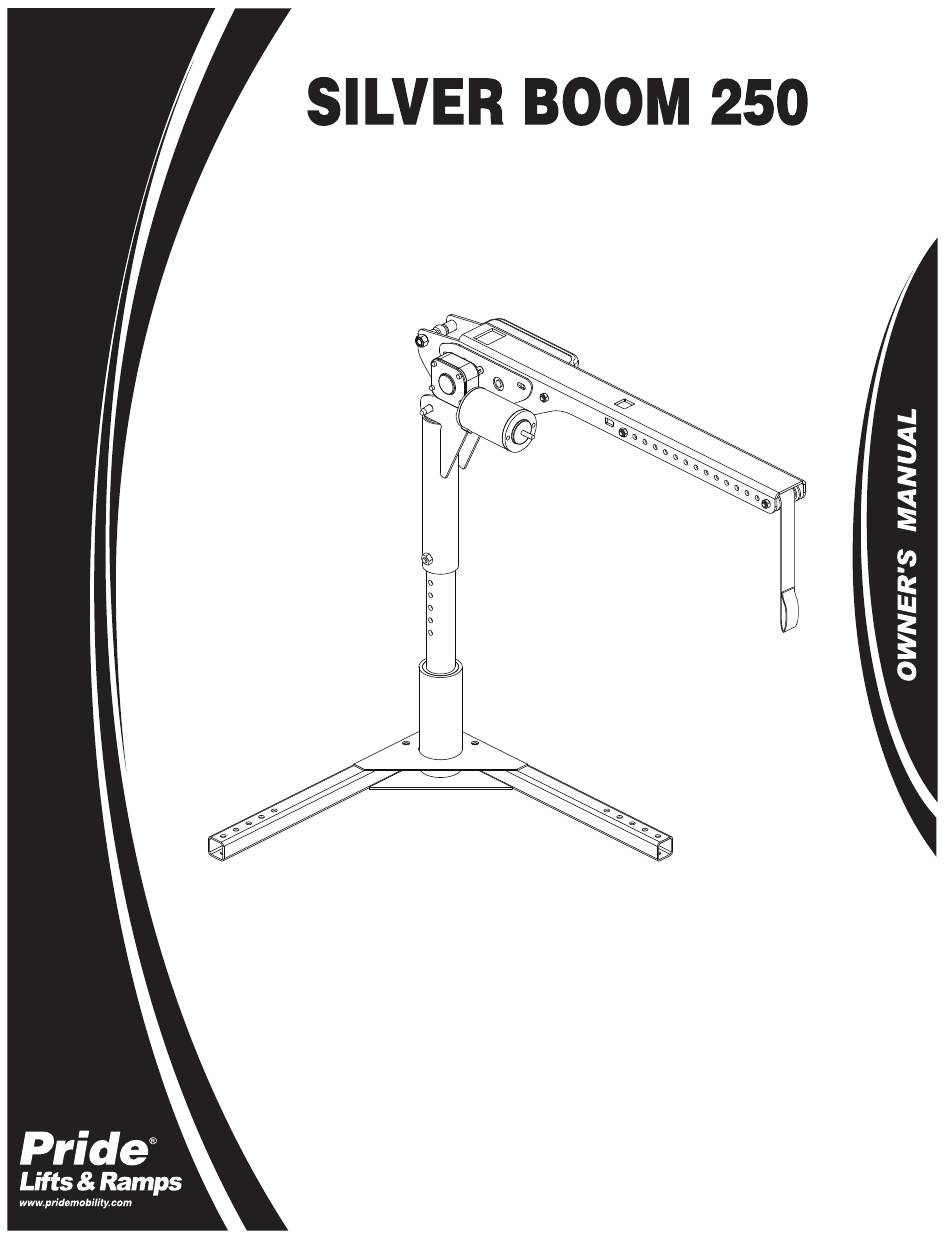

  • Page 1 www.pridemobility.com...
  • Page 2 The latest/current version of this manual is available on our website. Copyright © 2011 Pride Mobility Products Corp. INFMANU4128/Rev A/June 2011...

  • Page 3: Table Of Contents

    C O N T E N T S INTRODUCTION ........................4 SAFETY ............................5 III. INSTALLATION ..........................8 IV. OPERATION ..........................12 TROUBLESHOOTING ......................14 VI. CARE AND MAINTENANCE ....................15 VII. WARRANTY ..........................16 Silver Boom 250 www.pridemobility.com...

  • Page 4: Introduction

    We want to hear your questions, comments, and suggestions about this manual. We would also like to hear about the safety and reliability of your new Silver Boom 250, and about the service you received from your authorized Pride Provider.

  • Page 5: Safety

    Pinch/Crush points created during assembly and/or operation. Keep hands/ fingers away from moving components during operation. Manual Override. Contains Lead. Do not extend the lifting strap past the warning label located on it. Caution! Moving parts! Silver Boom 250 www.pridemobility.com...
  • Page 6 Use only AGM or Gel-Cell batteries to reduce the risk of leakage or explosive conditions. Wear safety goggles. Avoid exposure to rain, snow, ice, salt, or standing water whenever possible. Main- tain and store in a clean and dry condition. www.pridemobility.com Silver Boom 250...

  • Page 7: Installation

    LIFTING CAPABILITIES The Silver Boom 250 is designed to lift a maximum weight of 250 lbs. (113 kg). Under no circumstances should the Silver Boom 250 be made to exceed this weight limit. Subjecting the Silver Boom 250 to the strain of lifting more than it is designed to may cause it to fail, resulting in damage to the mobility product and/or injury to the lift operator.
  • Page 8 WARNING! The Silver Boom 250 Lift System should be installed by an authorized service technician only. WARNING! At least two people should lift the Silver Boom 250 into the rear of the vehicle. Use proper lifting techniques and avoid lifting beyond your physical capability.
  • Page 9 BOOM-ARM ADJUSTMENT BOOM ARM The boom-arm can be adjusted for your conve- nience. See figure 1. NOTE: If your Silver Boom 250 is equipped with BOOM ARM an optional offset arm, follow the instructions ADJUSTMENT below to make adjustments. See figure 3.
  • Page 10 WARNING! The black negative (-) wire must be connected directly to the negative (-) battery terminal. 4. Connect the harness extending from the motor housing to the harness coming from the battery. CRIMP HERE CRIMP HERE Figure 5. Electrical Wiring Connections www.pridemobility.com Silver Boom 250...
  • Page 11 2. Connect the male connector on the battery cable to the female connector at the base of Figure 6. Onboard Battery Installation the Silver Boom 250. See figure 6. 3. Secure the battery cable to the other cables with wire ties.

  • Page 12: Operation

    I V . O P E R A T I O N POWER SWITCH OPERATION Your Silver Boom 250 is equipped with a power switch that enables/disables operation. Press UP to turn the power on; press DOWN to turn the power off.
  • Page 13 Attempt the lift again. Figure 9. Securing the Boom Arm to Prevent Swining MANDATORY! The Silver Boom 250 is designed to lift a maximum weight of 250 lbs. (113 kg). Do not exceed this limit. 7. If the mobility product begins to tilt, lower it completely and adjust the docking device by moving the pick-up bar in the direction of the tilt (when using a C-arm).

  • Page 14: Troubleshooting

    WORKING FUSE the electrical system. LIFT STOPS OPERATING If your Silver Boom 250 is heavily strained because BLOWN FUSE of excessive loads, the main circuit breaker (see fig- ure 10) may trip to protect the motor and electron- ics from damage.

  • Page 15: Care And Maintenance

    Remove upright post and lubricate with “General Purpose Petroleum Based Grease”. Visually inspect chains for damage and replace if necessary. Lubricate chains with “General Purpose Petroleum Based Grease”. Inspect plastic shrouds for cracks or damage and replace if necessary. Silver Boom 250 www.pridemobility.com...

  • Page 16: Warranty

    V I I . W A R R A N T Y THREE-YEAR TRANSFERABLE LIMITED WARRANTY For three (3) years from the date of purchase, Pride Mobility Products will repair or replace at our option, free of charge, any mechanical or electrical component found upon examination by an authorized repre- sentative of Pride Mobility Products to be defective in material and/or workmanship.
  • Page 17 N O T E S Silver Boom 250 www.pridemobility.com...
  • Page 18 N O T E S www.pridemobility.com Silver Boom 250...
  • Page 20 *INFMANU4128*...
