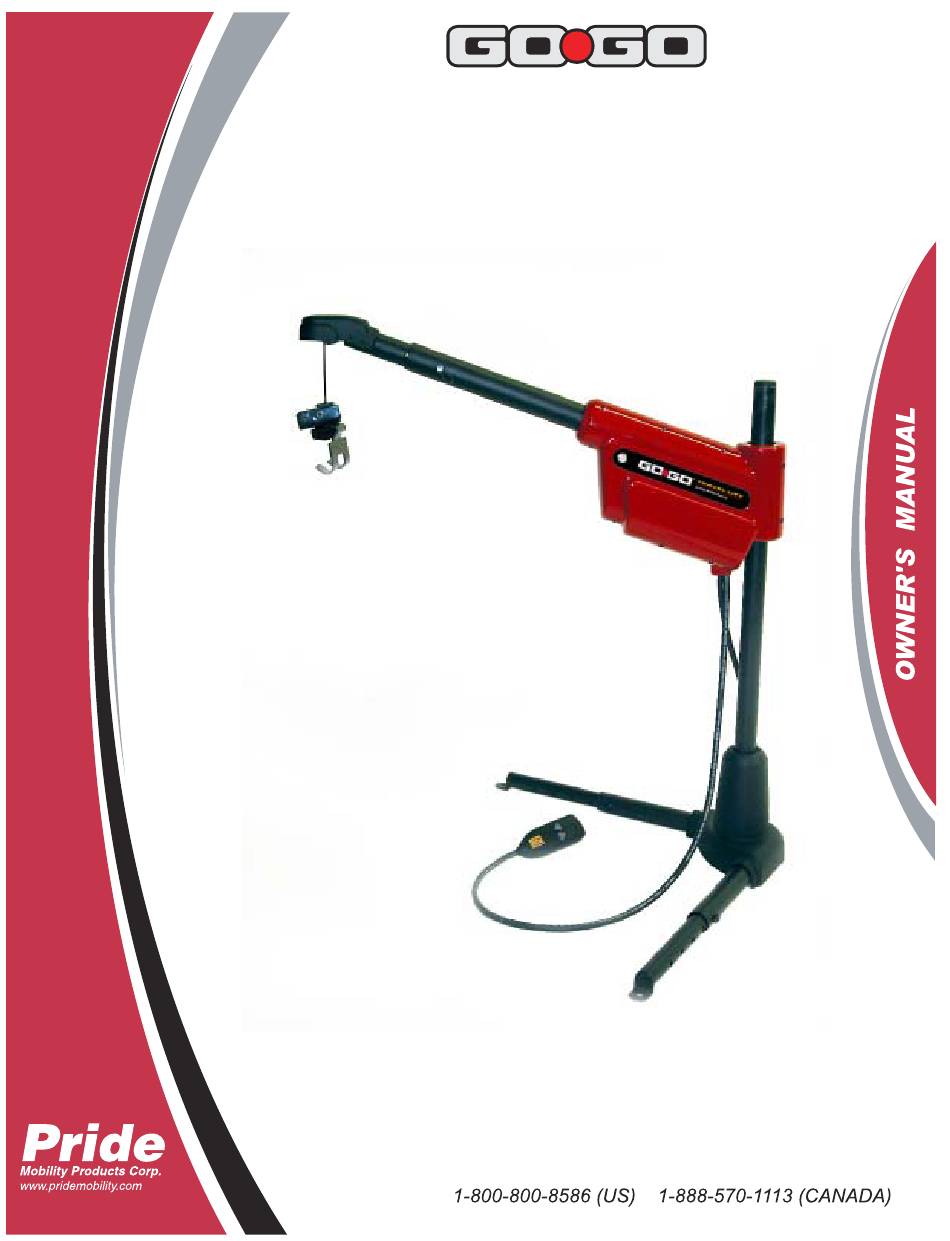

- Page 1 Go-Go Travel Lift...
- Page 2 The symbols below are used throughout this owner's manual and on the Go-Go Travel Lift to identify warn- ings and important information. It is very important for you to read them and understand them completely.
-
Page 3: Table Of Contents
C O N T E N T S INTRODUCTION ........................4 SAFETY ............................5 III. INSTALLATION .......................... 8 IV. OPERATION ..........................14 TROUBLESHOOTING ......................16 VI. WARRANTY..........................17 Go-Go Travel Lift www.pridemobility.com... -
Page 4: Introduction
I N T R O D U C T I O N SAFETY WELCOME to Pride Mobility Products Corporation (Pride). The product you have purchased combines state-of the-art components with safety, comfort, and styling in mind. We are confident that these design features will provide you with the conveniences you expect during your daily activities. - Page 5 Do not lift scooter while seated in it. Do not lift people. Maximum lifting capacity. Pinch/Crush points created during assembly and/or operation. Do not lift pets. Do not extend the lifting strap past the warning label. Go-Go Travel Lift www.pridemobility.com...
- Page 6 Disposal and recycling-Contact your authorized Pride Provider for information on proper disposal of your Pride product and its packaging. Disposal and recycling-Contact your authorized Pride Provider for information on proper disposal of your Pride product and its packaging. www.pridemobility.com Go-Go Travel Lift...
- Page 7 The maximum weight the Go-Go Travel Lift was designed to lift is 130 lbs. (60 kg). Under no circumstances should the Go-Go Travel Lift be made to lift more than 130 lbs. Subjecting the Go-Go Travel Lift to the strain of hoisting more than it is designed to lift may cause it to fail, damaging your scooter, injuring the person operating the lift, or both.
- Page 8 I I I . I N S T A L L A T I O N The Go-Go Travel Lift can be installed in either side BASE EXTENSIONS of your vehicle. The illustrations demonstrate installa- tion on the right side.
- Page 9 (see figures 6 and 7) or the length of the boom- arm (see figure 8) so the boom arm can swing freely without hitting at any point inside the vehicle. Figure 6. Motor Housing Installation Go-Go Travel Lift www.pridemobility.com...
-
Page 10: Installation
If possible, install the L-base with the base extensions fully extended. See figure 9. WARNING! The bumper mounts on some vehicles are gas pressured. DO NOT drill into them. They may explode casing severe injury. www.pridemobility.com Go-Go Travel Lift... - Page 11 NOTE: The two holes in the mounting washers are for working around obstructions. Choose the hole that best works in the area you are installing the mounting bolts. MOUNTING BOLTS 50 MM (2”) OR 75 MM (3”) T-BAR WASHER MOUNTING HOLE MOUNTING WASHER Figure 9. Securing The L-Base Go-Go Travel Lift www.pridemobility.com...
- Page 12 3. Insert the end of the long portion of the red power wire into the yellow connector of the short portion and crimp it securely. Once crimped, pull on the wire gently to ensure a good connection. Wrapping the connector with electrical tape will help prevent moisture from corroding the connection. www.pridemobility.com Go-Go Travel Lift...
- Page 13 IN CLOSE PROXIMITY TO LIFT BLACK - RED POWER SHEET METAL SCREW HARNESSES 12 MM (1/2”) CONNECTOR AUTOMOBILE ROUTE RED (+) POWER WIRE (USE PLIERS OR CRIMPING BATTERY TO BATTERY TOOL TO CRIMP) Figure 12. Electrical Wiring Connections Go-Go Travel Lift www.pridemobility.com...
-
Page 14: Operation
PRESS TO OPERATE LIFT IN PRESS TO OPERATE LIFT A DOWNWARD DIRECTION IN AN UPWARD DIRECTION WARNING! Before operating the Go-Go Travel Lift for the first time, be absolutely sure you have the proper docking device for your scooter. DOWN UP 1. - Page 15 11. Disconnect the power to the Go-Go Travel Lift to prevent any accidental movement when transporting your scooter. WARNING! Your Go-Go Travel Lift was designed to be mounted primarily in a vehicle.
-
Page 16: Troubleshooting
LIFT STOPS OPERATING If your Go-Go Travel Lift is heavily strained because of excessive loads, the main circuit breaker (see fig- ure 18) may trip to protect the motor and electronics from damage. When the breaker trips, the entire elec- trical system shuts down. -
Page 17: Warranty
ONE YEAR LIMITED WARRANTY For one year from the date of purchase, Pride Mobility Products Corporation will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride Mobility Products Corporation to be defective in material and/or workmanship: "... - Page 18 N O T E S www.pridemobility.com Go-Go Travel Lift...
- Page 19 *INFMANU2803*...
