Summary of Contents for QNAP QSW-1105-5T

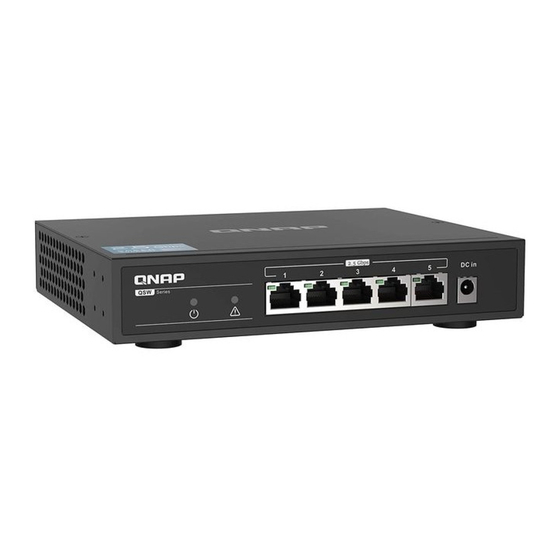

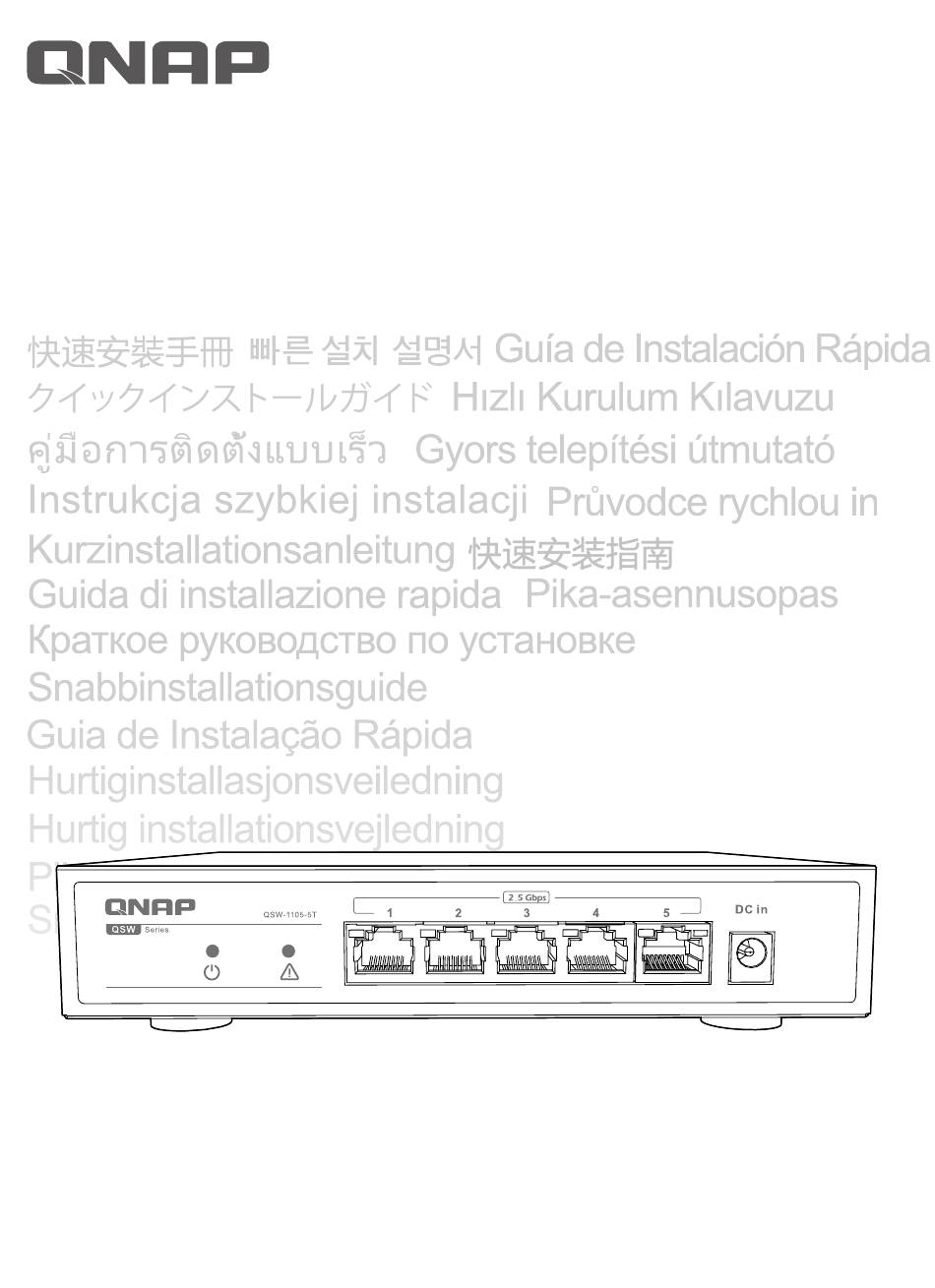

- Page 1 QSW-1105-5T Quick Installation Guide...
- Page 2 QSW-1105-5T Quick Installation Guide Bracket screws Anchors Foot pads Power supply Quick installation guide...
- Page 3 1. Power LED 3. 2.5GbE RJ45 ports 2. Loop indicator 4. Power input...
- Page 4 Flashing without Loop indicator Port is transmitting. Flashing with Loop indicator Port loops. No link. Specifications Model QSW-1105-5T Dimensions (H x W x D) 34 x 180 x 145 mm Net weight Around 577 g Input voltage range 100–240VAC Switching capacity 25 Gbps 2.5GbE RJ45 ports...
- Page 6 • Consult the dealer or an experienced radio/television technician for help. Modifications: Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment.
- Page 8 download.qnap.com...
