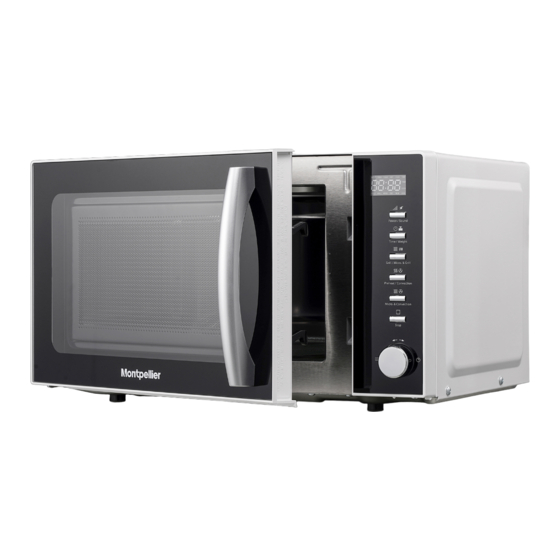

Freestanding 20litre Combi Microwave
MCM20WSC - White (Stainless Steel Interior)
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MCM20WSC
Summary of Contents for montpellier MCM20WSC
- Page 1 Installation and Operating Instructions Freestanding 20litre Combi Microwave MCM20WSC - White (Stainless Steel Interior) Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENT CONTENT ........................1 PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ........................2 IMPORTANT SAFETY INSTRUCTIONS ...............2 INSTALLATION GUIDE....................5 GROUNDING INSTRUCTIONS ..................5 RADIO INTERFERENCE ....................6 BEFORE CALLING FOR SERVICE ................6 COOKING TECHNIQUES .....................7 COOKING UTENSILS GUIDE ..................7 SPECIFICATIONS ......................8 PRODUCT DIAGRAM ....................8 CONTROL PANEL ......................9 OPERATION INSTRUCTIONS ..................10 ....................10... -
Page 4: Precautions To Avoid Possible Exposure To Excessive Microwave Energy
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. 2. - Page 5 6. WARNING!--When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated 7. To reduce the risk of fire in the oven cavity: When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
- Page 6 material, for inspection/analysis purposes, or for transfer of electromagnetic energy. Class B equipment is equipment suitable for use in locations in residential environments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes. 18.
-
Page 7: Installation Guide
37. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 8: Radio Interference
recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage. WARNING!--Improper use of the grounding plug can result in a risk of electric shock. Note: 1. -
Page 9: Cooking Techniques
COOKING TECHNIQUES 1. Arrange food carefully. Place thickest areas towards outside of dish. 2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite. 3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly. -
Page 10: Specifications
SPECIFICATIONS Power Supply 230-240V/50Hz Power Consumption (Microwave) 1200W Power Consumption (Grill) 1200W Power Consumption (Convection) 2200W Rated Microwave Power Output 800W Operation Frequency 2450MHz Outside Dimensions 262mm(H)×452mm(W)×396mm(D) Oven Cavity Dimensions 180mm(H)×315mm(W)×325mm(D) Oven Capacity 20Litres Net Weight Approx. 14.1kg PRODUCT DIAGRAM 1. -
Page 11: Control Panel
CONTROL PANEL MENU ACTION SCREEN Time, power and indicators are displayed. POWER/SOUND Press to set microwave cooking power level. Use to set mute function. TIME/WEIGHT Press to set clock time, food weight or servings. GRILL/MICRO.&GRILL Press to set grill cooking program. Press to set microwave and grill combination cooking programs. -
Page 12: Operation Instructions
OPERATION INSTRUCTIONS When the oven is first plugged in, a beep will sound and the display will show "1:01" and "CLOCK". In the process of setting, if no action is taken within 30 seconds the oven will return to standby mode. During cooking, press STOP button once to pause the program, then press ... -
Page 13: Grill
Press POWER/SOUND button to set power level: Press Press Power (Display) Power (Display) POWER/SOUND POWER/SOUND Once 100% (P800) 7 times 40% (P320) Twice 90% (P720) 8 times 30% (P240) 3 times 80% (P640) 9 times 20% (P160) 4 times 70% (P560) 10 times 10% (P080) 5 times... -
Page 14: Microwave + Convection
To preheat and cook with convection: Your oven can be programmed to combine preheating and convection cooking operations. In standby mode, press PREHEAT/CONVECTION button repeatedly to set cooking temperature. Press START/QUICK START button. Beeps will sound when the designated temperature is reached. Open the door and place container of food at the center of the turntable (or press STOP button). -
Page 15: Multi - Stage Cooking
weight. The weight ranges from 100 g to 1800 g. Press START/QUICK START button to start. NOTE: During defrosting. the system will pause and sound to remind user to turn food over, and then press START/QUICK START button to resume. ULTI STAGE COOKING Your oven can be programmed for up to 3 automatic cooking sequences. -
Page 16: Protection
ROTECTION OVERHEATING PROTECTION: When the system enters into super high temperature protection status, the digital display shows "E01" and continues to beep. After troubleshooting, press STOP button, the system comes back to normal standby mode. LOW TEMPERATURE PROTECTION: When the system enters into super low temperature protection status, the digital display shows "E02"... -
Page 17: Cleaning And Care
Pizza (150 g, 300 g, 450 g) The result of auto cooking Cake (475 g) depends on factors such as Grilled Fish Chops (200-600 g) voltage fluctuation, the shape and Grilled Steak (200-600 g) size of food, your personal Grilled Pork Chops (200-600 g) preference as to the doneness of Chicken Chops certain foods and even how well... - Page 18 This phenomenon will disappear after a period of using. The user manual can also be checked and downloaded from our website: https://www.montpellier-appliances.com/...
- Page 19 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 20 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
