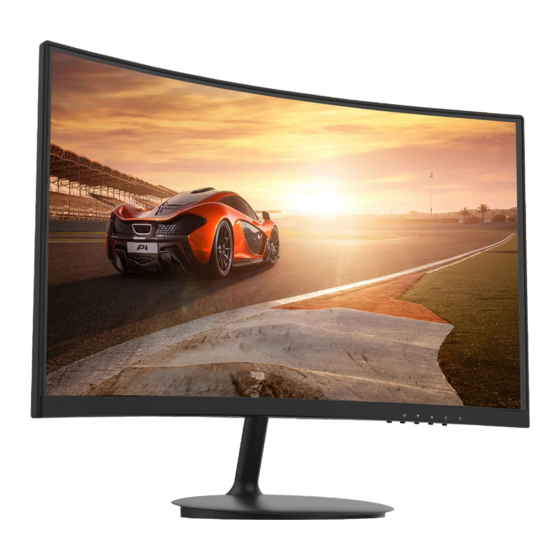

- Page 1 24C1F LCD Monitor Quick Use Manual Please read this manual carefully before using the product, please keep this manual for future reference.
- Page 2 01. Safety precautions 02. Power-on inspection 03. Installation instructions 04. VESA installation instructions 05. Power and signal cable connection 06. Operating instructions 07. Troubleshooting 08. Specifications 01. Safety Precautions WARNING: Safety Instructions Do not place the monitor in rain, humid environment or open the monitor case to avoid any shock, electrical hazards, and / or mechanical hazards.
- Page 3 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. 02. Power-on inspection * For the first time, please read the safety information in this manual carefully. Please keep this manual for future reference.
- Page 4 Unlock 3. As shown in the figure, place the assembled bracket base in the slot and push it up to be locked. Do not press the screen 4. Hold the rotating shaft of the stand by hand and stand up the machine. Note: During the process of erecting the machine, do not pinch the screen directly with your hands or turn the screen upside down to prevent the screen from cracking or breaking the machine.
- Page 5 Wall VESA bracket (need to be purchased by yourself) 4. During the process of padlocking the machine, please do not pinch the screen directly to prevent the screen from breaking. 05. Power and signal cable connection Signal cable * Connect one end of the HDMI cable to the HDMI signal output port of the PC and the other end to the HDMI signal input port of the monitor.
-
Page 6: 07. Troubleshooting
Panel control * Power switch: Press the power key to turn on/off the power of the display * Power indicator: power on/standby * Menu/Select: Activate OSD menu or confirm function adjustment 07. Troubleshooting Common Problem Possible Solution Power indicator is off * Whether to connect the power cord * Whether to turn on the power Dim image... - Page 7 08. Specifications Model: 24C1F Power: DC 12 2.5A Screen Size: 521.4 x 293.3mm Aspect Ratio: 16 : 9 Resolution: 1920 x 1080 Signal Input: VGA*1+HDMI*1+AUDIO OUT Brightness: 22cd/m²(TYP) Color: Black Dimensions (Monitor with stand): 539.2 x 413.5 x 207.7mm Net Weight: Gross Weight: fiodio@cesz.com...
