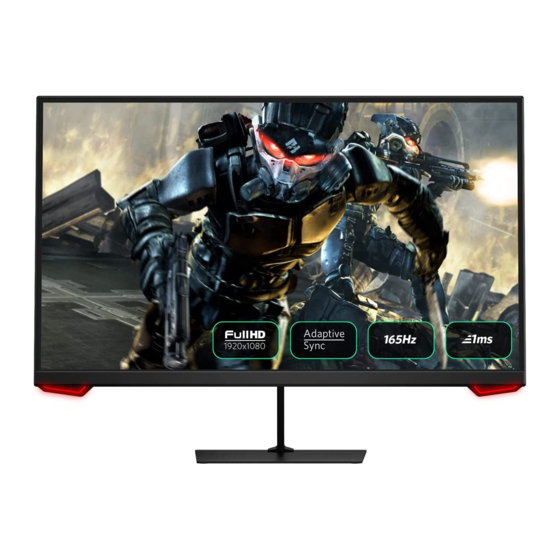

24" monitor

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 24H2G and is the answer not in the manual?

Questions and answers

Summary of Contents for fiodio 24H2G

  • Page 3: Table Of Contents

    Notices-------------------------------------------------------------------------------------------------------------------------------------- 3 Product introduction ------------------------------------------------------------------------------------------------------------------- Packing list---------------------------------------------------------------------------------------------------------------------------- Instructions for use---------------------------------------------------------------------------------------------------------------------- Description of buttons------------------------------------------------------------------------------------------------------------ Explanation of indicators--------------------------------------------------------------------------------------------------------- Adjusting the monitor------------------------------------------------------------------------------------------------------------- Installation of base---------------------------------------------------------------------------------------------------------------------- Cable connection------------------------------------------------------------------------------------------------------------------------ OSD menu--------------------------------------------------------------------------------------------------------------------------------- Menu description------------------------------------------------------------------------------------------------------------------- Basic parameters------------------------------------------------------------------------------------------------------------------------...
  • Page 4: Notices

    Notices Before using this product, please read this User Manual carefully and keep it well Keep the monitor away from water sources or damp places, such as bath rooms, kitchens, basements and swimming pools. Make sure the monitor is placed on a at surface. lf the monitor falls down, it may cause human injury or device damage.
  • Page 5: Instructions For Use

    Instructions for use Description of buttons Power button: Turn on/of the monitor. Exit/Left button: Exit or return to the previous menu/quickly switch the Input Signal. Down button: Move down in the menu/quickly enter the GamePlus. Menu button: Enter sub-menus/quickly enter the main menu. Up button: Move up in the menu.
  • Page 6: Installation Of Base

    Installation of base 1. Unpack the carton, remove the foam, and lay the monitor at on the table. Keep the foam under the monitor until you install the stand. 2. Take out the bracket and place it on the machine shaft and x it with two screws. Screws 3.
  • Page 7: Cable Connection

    Cable connection * The bottom interface con guration at the back of the monitor varie with products. * Note: If the power cable or signal cable is damaged, you must replace it with special soft cables or special components purchased from the manufacture or maintenance department.
  • Page 8: Osd Menu

    OSD menu Menu description The color and shape of the OSD menu of the actual computer may be slightly di erent from them shown in the gure. Speci cations of the OSD menu may change with improvements of functions without prior notice. The screen display (OSD) menu can be used to adjust settings of the monitor and is shown on the screen after the monitor is powered on and the button is pressed.
  • Page 9 Functions of the monitor vary with models, and the functions in this manual are for reference only. Standard Mode Off/On RTS/RPG Mode Off/On FPS Arena Mode Off/On MOBA Arena Mode Off/On Adaptive-Sync Off/On 0-100 Shadow Balance Response Time Off/Normal/Fast/Ultrafast Refresh Rate Game Settings On: TopRight/TopLeft/BottomRight /BottomLeft...
  • Page 10 Functions of the monitor vary with models, and the functions in this manual are for reference only. 简体中文/English/한국어/‫/عربى‬Portugues Brazil/ Deutsch/Nederland/Suomi/Français/ Language Ελληνικά/Indonesia/Italiano/日本語/Malaysia/ Polskie/Português/P /Español/ไทย/ /Tiếng Việt/繁體中文/Türkçe OSD Time Out 5-60 OSD H-Position 0-100 OSD V-Position 0-100 OSD Settings OSD Transparency Brightness/Contrast/Volume/Mute Hotkey1 Setting /Shadow Balance/Game Crosshair...
  • Page 11: Basic Parameters

    Basic parameters Product Name Liquid Crystal Display 24H2G Product model Screen Size 23.8 inches Aspect Ratio 16:9 Viewing Angle 178°(H) / 178°(V) Pixel pitch 0.2739 (H) x 0.2739 (V) mm Contrast ratio 3000:1(Typ) Colors 16.7M Resolution 1920 x1080 Maximum refresh rate...
  • Page 13 24H2G Fiodio Fiodio 说明书 2022.3.21 140*210mm 封面封底120G铜版纸过光膜,内页80G铜版纸, 单色印刷,胶装 所有文字、数字、英文字母、字符清晰可视、易读 且不易造成文字混淆 , 需提供使用材料的SGS和ROHS报告 提供过的供应商不需要再次提供 潘巧纳 备注:如不够页数,可以在封面封底的内面插入空白页...
