Summary of Contents for fiodio AF11F

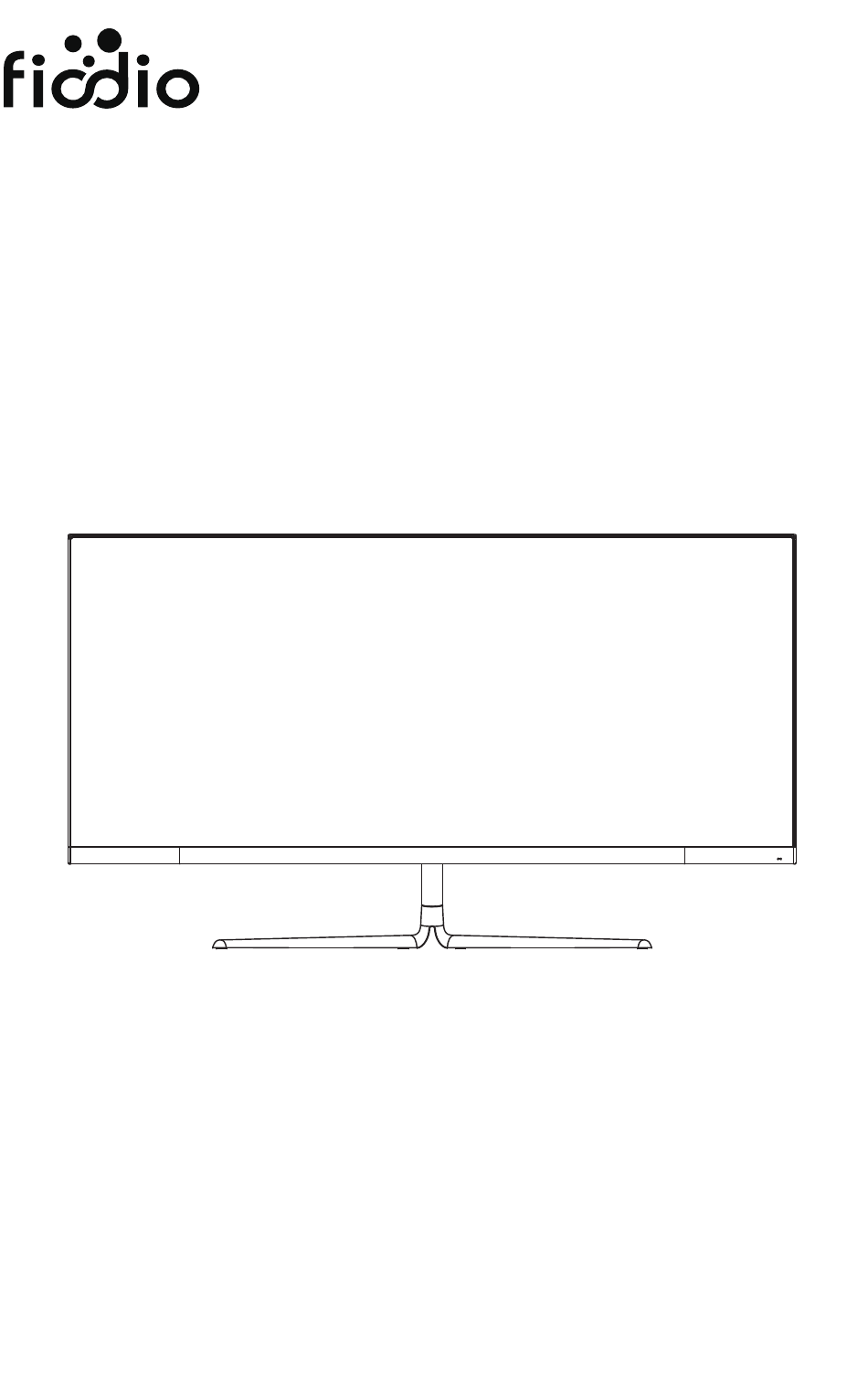

- Page 1 User Manual 29 in Computer Monitor Model: AF11F...
-
Page 3: Table Of Contents
Notices----------------------------------------------------------------------------------------------------------- 3 Product introduction ---------------------------------------------------------------------------------------- Packing list------------------------------------------------------------------------------------------------- Instructions for use------------------------------------------------------------------------------------------- Description of buttons---------------------------------------------------------------------------------- Explanation of indicators------------------------------------------------------------------------------- Adjusting the monitor----------------------------------------------------------------------------------- Installation of base-------------------------------------------------------------------------------------------- Installation of mount------------------------------------------------------------------------------------ Cable connection--------------------------------------------------------------------------------------------- OSD menu------------------------------------------------------------------------------------------------------- Menu description---------------------------------------------------------------------------------------- Basic parameters----------------------------------------------------------------------------------------------... -
Page 4: Notices
Notices Before using this product, please read this User Manual carefully and keep it well Keep the monitor away from water sources or damp places, such as bath rooms, kitchens, basements and swimming pools. Make sure the monitor is placed on a at surface. lf the monitor falls down, it may cause human injury or device damage. -
Page 5: Instructions For Use
Instructions for use Description of buttons Power button: Turn on/of the monitor. Exit/Left button: Exit or return and shortcut keys. Down button: Move down in the menu/game crosshair. Menu button: Enter sub-menus. Up button: Move up in the menu/pattern of situations. Explanation of indicators Indicator light: Steady blue light indicates the power... -
Page 6: Installation Of Base
Installation of base 1.Open the carton package, take out the foam and put it at on the table top. Keep the foam underneath the monitor before attaching the stand. 2. Take out the support and rotating shaft assembly and lock it with two screws. screws 3. -
Page 7: Installation Of Mount
4. After assembly, simply hold the stand with hand to stand the monitor upright. Do not press the LCD Note: During standing of the whole monitor, do not press the liquid crystal screen with hand to avoid damage to the screen. Installation of mount 1.Open the carton package, take out the foam and put it at on the table top. -
Page 8: Cable Connection
Cable connection * The bottom interface con guration at the back of the monitor varie with products. * Note: If the power cable or signal cable is damaged, you must replace it with special soft cables or special components purchased from the manufacture or maintenance department. HDMI interface AUDIO OUT Use the HDMl cable to connect the HDMI IN interface... - Page 9 Functions of the monitor vary with models, and the functions in this manual are for reference only. Standard Mode Off/On RTS/RPG Mode Off/On FPS Arena Mode Off/On MOBA Arena Mode Off/On Adaptive-Sync Off/On 0-100 Shadow Balance Response Time Off/Normal/Fast/Ultrafast Refresh Rate Game Settings On: Top Right / Top Left / Bottom Right / Bottom Left...
- Page 10 Functions of the monitor vary with models, and the functions in this manual are for reference only. PIP/PBP Mode Off/PIP Mode/PBP 2Win 1:1 Sub-Signal Source DP/HDMI1/HDMI2 Audio Source Auto/DP/HDMI1/HDMI2 PIP/PBP PIP Position Top Right/Top Left/Bottom Right/Bottom Left PIP Size Small/Medium/Large Window Swap 简体中文/English/한국어//عربىPortugues do Brasilazil Deutsch/Nederland/Suomi/Français/...
-
Page 11: Basic Parameters
Basic parameters Product Name Liquid Crystal Display Product model AF11F Screen Size 29 inches Aspect Ratio 21:9 Viewing Angle 178°(H) / 178°(V) Pixel pitch 0.2697 (H) x 0.2697 (V) mm Contrast ratio 3000:1(Typ) Colors 16.7M Resolution 2560 x1080 Maximum refresh rate... - Page 13 30A3L AF11F Fiodio 说明书 2022.4.12 140*210mm 封面封底120G铜版纸过光膜，内页80G铜版纸, 单色印刷，胶装 所有文字、数字、英文字母、字符清晰可视、易读 且不易造成文字混淆 , 需提供使用材料的SGS和ROHS报告 提供过的供应商不需要再次提供 潘巧纳 备注:如不够页数，可以在封面封底的内面插入空白页...
