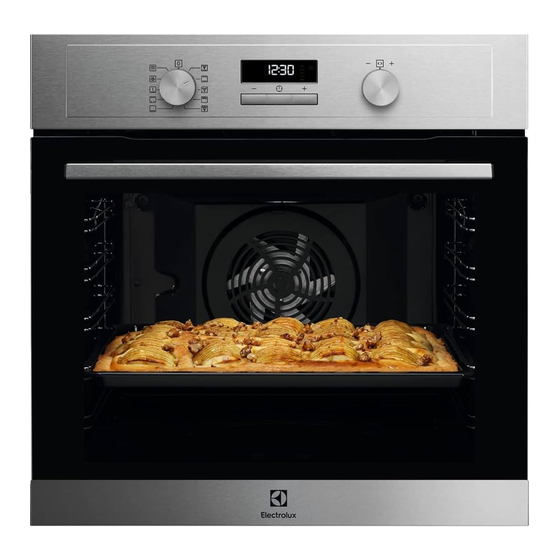

Electrolux EOH4P10X User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
EN
Oven
EOH4P10X
electrolux.com/register

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EOH4P10X and is the answer not in the manual?

Questions and answers

Related Manuals for Electrolux EOH4P10X

Summary of Contents for Electrolux EOH4P10X

  • Page 1 User Manual Oven EOH4P10X electrolux.com/register...

  • Page 2: Table Of Contents

    WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.

  • Page 3: Safety Information

    SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

  • Page 4: Safety Instructions

    Always use oven gloves to remove or put in accessories or • ovenware. Before carrying out any maintenance, disconnect the • appliance from the power supply. WARNING: Ensure that the appliance is switched off before • replacing the lamp to avoid the possibility of electric shock. Do not use the appliance before installing it in the built-in •...
  • Page 5 • Use only correct isolation devices: line protecting cut-outs, fuses (screw type Width of the back of the 559 mm fuses removed from the holder), earth appliance leakage trips and contactors. Depth of the appliance 569 mm • The electrical installation must have an isolation device which lets you disconnect Built in depth of the appli‐...
  • Page 6 2.4 Care and cleaning • Do not operate the appliance with wet hands or when it has contact with water. • Do not apply pressure on the open door. WARNING! • Do not use the appliance as a work Risk of injury, fire, or damage to surface or as a storage surface.

  • Page 7: Installation

    • Remove the door catch to prevent children or pets from becoming trapped in 2.6 Internal lighting the appliance. WARNING! Risk of electric shock. 3. INSTALLATION 3.1 Building in WARNING! Refer to Safety chapters. www.youtube.com/electrolux www.youtube.com/aeg How to install your AEG/Electrolux Oven - Column installation ENGLISH...
  • Page 8 (*mm) min. 550 min. 560 (*mm) min. 550 min. 560 3.2 Securing the oven to the cabinet ENGLISH...

  • Page 9: Product Description

    4. PRODUCT DESCRIPTION 4.1 General overview Control panel Knob for the heating functions Display Control knob (for the temperature) Heating element Lamp Shelf support, removable Shelf positions 4.2 Accessories • Telescopic runners With the telescopic runners you can put in •...

  • Page 10: Before First Use

    5.2 Display A. Timer / Temperature B. Heat-up and residual heat indicator C. Food Sensor (selected models only) D. Door lock (selected models only) E. Hours / minutes F. Demo Mode G. Clock functions 6. BEFORE FIRST USE Set the time before you use the oven. WARNING! Refer to Safety chapters.
  • Page 11 7.2 Heat-up indicator Heating Application When the oven function operates, the bars in function the display appear one by one when the To bake cakes with crispy bottom temperature in the oven increases, and and to preserve food. disappear when it decreases. Bottom Heat 7.3 Heating functions To prepare very tender and juicy...

  • Page 12: Clock Functions

    8. CLOCK FUNCTIONS 8.1 Clock functions table Clock function Application To show or change the time of day. You can change the time of day only when the oven is off. Time of Day To set the length of cooking. Use only when a heating function is set. Duration To set the oven turn-off time.
  • Page 13 Step 2 - press repeatedly. - starts to flash. Step 3 - press to set the minutes. - press to confirm. Step 4 - press to set the hours. - press to confirm. When the set time ends the signal sounds for 2 min. Time setting flashes in the display. The oven turns off automatically.

  • Page 14: Using The Accessories

    8.6 How to set function: Minute Minder Minute minder can be both set when the oven is turned on and off. Step 1 - press repeatedly. , 00 - flash. Step 2 - press to set the seconds and than the minutes. When the time you set is longer than 60 min, hr flashes.

  • Page 15: Additional Functions

    Deep pan: Push the tray between the guide bars of the shelf support. Wire shelf, Deep pan: Push the tray between the guide bars of the shelf support and the wire shelf on the guide bars above. 9.2 Using telescopic runners Make sure you push back the telescopic runners fully in the oven before you close the Do not oil the telescopic runners.

  • Page 16: Hints And Tips

    Step 2 - press and hold at the same time for 2 sec. (°C) 200 - 245 The signal sounds. SAFE , - appear on the dis‐ play. The door is locked. 250 - maximum To turn off the Child Lock, repeat the step 2. After an automatic switch-off, turn the knobs to the off position.
  • Page 17 Cooking times cooking time, etc.) for your cookware, recipes Cooking times depend on the type of food, its and quantities when you use this appliance. consistency, and volume. Initially, monitor the performance when you cook. Find the best settings (heat setting, 11.2 Baking and roasting Conventional Cook‐...
  • Page 18 Conventional Cooking Fan Cooking BREAD AND PIZZA (min) (°C) (°C) White bread, 1 - 2 60 - 70 pieces, 0.5 kg each Rye bread, pre‐ 30 - 45 Bread tin heating is not needed Bread rolls, 6 - 8 230 - 250 230 - 250 10 - 20 Baking tray...
  • Page 19 Conventional Cooking Fan Cooking MEAT (min) (°C) (°C) English roast beef, 50 - 60 rare English roast beef, 60 - 70 medium English roast beef, 70 - 75 well done Conventional Cooking Fan Cooking MEAT (min) (°C) (°C) Pork shoulder, with 120 - 150 rind Pork shin, 2 pieces...
  • Page 20 GRILL (kg) (min) (min) 1st side 2nd side Fillet steaks, 4 pieces 12 - 15 12 - 14 Beef steak, 4 pieces 10 - 12 6 - 8 Sausages, 8 12 - 15 10 - 12 Pork chops, 4 pieces 12 - 16 12 - 14 Chicken, half, 2...
  • Page 21 POULTRY POULTRY (°C) (min) (°C) (min) Poultry, portions, 0.2 - 200 - 220 30 - 50 Turkey, 2.5 - 3.5 kg 160 - 180 120 - 150 0.25 kg each Turkey, 4 - 6 kg 140 - 160 150 - 240 Chicken, half, 0.4 - 0.5 190 - 210 35 - 50...
  • Page 22 VEGETA‐ FRUIT BLES (°C) Herbs 40 - 50 2 - 3 Apricots 8 - 10 Apple slices 6 - 8 Set the temperature to 60 - 70 °C. Pears 6 - 9 FRUIT Plums 8 - 10 11.7 Moist Fan Baking - recommended accessories Use the dark and non-reflective tins and containers.
  • Page 23 (°C) (min) Victoria sandwich baking dish on wire shelf 40 - 50 Poached fish, 0.3 kg baking tray or dripping pan 20 - 25 Whole fish, 0.2 kg baking tray or dripping pan 25 - 35 Fish fillet, 0.3 kg pizza pan on wire shelf 25 - 30 Poached meat, 0.25...

  • Page 24: Care And Cleaning

    (°C) (min) Apple pie, 2 Conventional Wire shelf 70 - 90 tins Ø20 cm Cooking Apple pie, 2 Fan Cooking Wire shelf 70 - 90 tins Ø20 cm Sponge Conventional Wire shelf 40 - 50 Preheat the oven for cake, cake Cooking 10 minutes.
  • Page 25 12.1 Notes on cleaning Clean the front of the oven with a soft cloth with warm water and a mild detergent. Use a cleaning solution to clean metal surfaces. Clean stains with a mild detergent. Cleaning Agents Clean the cavity after each use. Fat accumulation or other residue may cause fire. Moisture can condense in the oven or on the door glass panels.
  • Page 26 Before the pyrolytic cleaning: Turn off the oven and wait until Remove all accessories. Clean the oven floor and the inner door it is cold. glass with warm water, a soft cloth and a mild detergent. Step 1 Set the function: - flashes.
  • Page 27 Step 1 Open the door fully and hold both hinges. Step 2 Lift and turn the levers fully on both hinges. Step 3 Close the oven door halfway to the first opening position. Then lift and pull forward and remove the door from its seat. Step 4 Put the door on a soft cloth on a stable sur‐...

  • Page 28: Troubleshooting

    Make sure that you put the glass panels (A and B) back in the correct sequence. Check for the symbol / printing on the side of the glass panel, each of the glass panels looks different to make the disassembly and assembly easier.
  • Page 29 The oven does not turn on or does not heat Error codes 12:00 There was a power cut. Set the time of day. Problem Check if... If the display shows an error code that is not in this You cannot activate or The oven is correctly table turn the house fuse off and on to restart the operate the oven.

  • Page 30: Energy Efficiency

    14. ENERGY EFFICIENCY 14.1 Product Information and Product Information Sheet* Supplier's name Electrolux Model identification EOH4P10X 949498153 Energy Efficiency Index 81.2 Energy efficiency class Energy consumption with a standard load, conventional mode 0.93 kWh/cycle Energy consumption with a standard load, fan-forced mode 0.69 kWh/cycle...

  • Page 31: Environmental Concerns

    warm. The residual heat indicator or When you use this function the lamp temperature appears on the display. automatically turns off after 30 sec. Moist Fan Baking Function designed to save energy during cooking. 15. ENVIRONMENTAL CONCERNS appliances marked with the symbol with Recycle materials with the symbol .
  • Page 32 electrolux.com...
