Uniclass DX120 Quick Installation Manual

Quick Installation Guide
Quick Installation Guide
DX120 – TX Front View
DX120 – RX Front View
CAT5 DVI KVM Extender Over LAN
w/ Audio & Mic.
4 x USB 2.0 ports for keyboard, mouse and other USB 2.0
devices
Digital Video Support Full HD 1080p up to 100M Extension
DX120
Thank you for purchasing the CAT5 DVI KVM Extender!
With our highly reliable and quality product, users can
enjoy countless benefits from using this KVM Extender.
Introduction
The CAT5 DVI KVM Extender Over LAN comprises two
distinct units, the Transmitter and Receiver Unit. It is
allows fully access and complete control of your computing
resources over the UTP cable. They are LAN based KVM
Extender systems that allow access to a computer system
from a remote console anywhere on your existing network
infrastructure.
The CAT5 DVI KVM Extender offers the extension of
keyboard, mouse, video, Mic. and USB equipment; use a
single Cat5 cable transmission, up to 100m away from your
local PC.
http://www.uniclass.com.tw
The KVM Extender can support a digital video resolution
up to 1920 x 1080 @60Hz/Full HD 1080p over 100M of
a single Cat5 Cable, while still keeping a satisfying video
quality at the same time. Furthermore, the Cat5 DVI KVM
Extenders support Graphic Mode/Video Mode selection to
suit your display requirements. Graphic mode is optimized
for still graphic displays; while video mode is best for a
dynamically changing video stream.
Note: In case of to extend another 100M range, it needs to
install the Gigabit Network Switch, other than 10/100Mbs
Network Switch. Otherwise, the consequently will affected
the data transmission. Therefore should be avoided.
Package Contents
Please check whether you have all the following items
from the packaging box.
1 x Transmitter Unit (TX) 1 x Receiver Unit (RX)
2 x Power Adapter (DC9V) 1 x Quick Installation Guide
Note: Optional for IR Remote Control Unit Pack (Include:
Wired Transmitter and Wired Receiver).

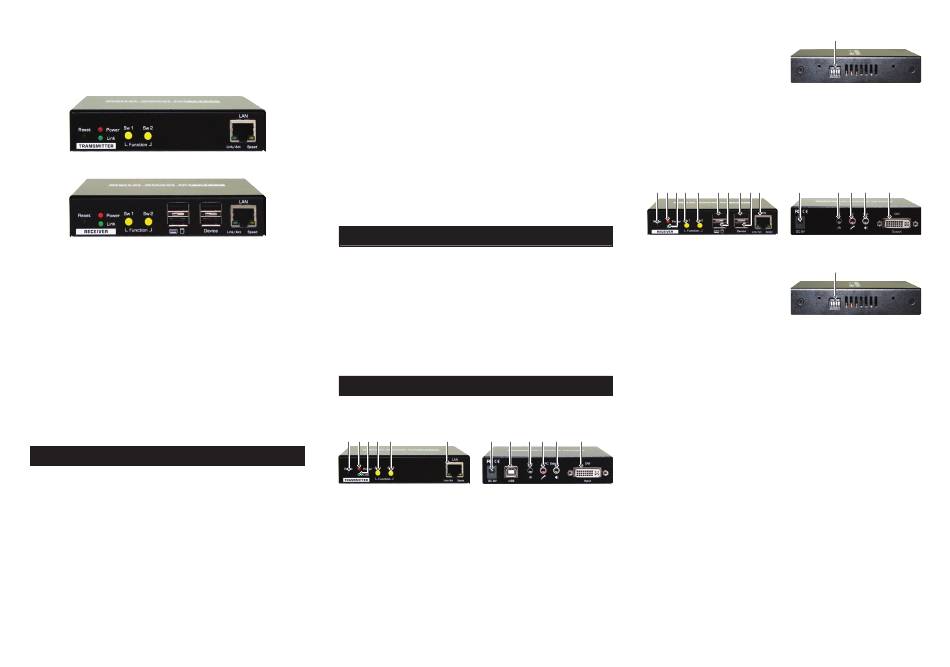

Front-Panel & Back-Panel
Transmitter (TX) Unit
a b c d e f g h
Transmitter (TX) Unit Front-View Transmitter (TX) Unit Back-View
a. Reset Button
b. Power LED (Lights when power on)
c. Link LED (Lights when link active)
d. Momentary Switch Button (Yellow - Sw1)
e. Momentary Switch Button (Yellow - Sw2)
f. CAT5 Extension Port [RJ45, connect to the RX unit via a
CATx UTP cable, 100 Max.]
g. Power Jack
h. USB Port (Type B)
i. Remote Out
j. Mic. Connector
k. Audio Connector
l. Monitor DVI Port
m. 4 Position Dip Switch
Receiver (RX) Unit
1 2 3 4 5
Receiver (RX) Unit Front-View
1. Reset Button
2. Power LED
(Lights when power is on)
3. Link LED
(Lights when link is active)
4. Momentary Switch (Sw1) Short press to switch on and
off Remote Console
5. Momentary Switch (SW2) Short press to select Graphic
Mode/ Video Mode (Long press to select Anti-Dither
1/2/OFF)
i j k l
6. USB Port (Type A) for Keyboard
7. USB Port (Type A) for mouse
8. USB Device Port (Type A)
9. USB Device Port (Type A)
10. RJ45 Port
11. Power Jack
12. Remote In
13. Mic. In
14. Audio Out
15. DVI Port
16. 4 Position Dip Switch
DX120 CAT5 DVI KVM Extender Over LAN w/Audio & Mic
m
Transmitter Unit Right Side-View
6 7 8 9 10 11 12 13 14 15
Receiver (RX) Unit Back-View
16
Receiver (RX) Unit Right Side-View
Rev. 1.3 Copyright @May, 2014 All Rights Reserved
