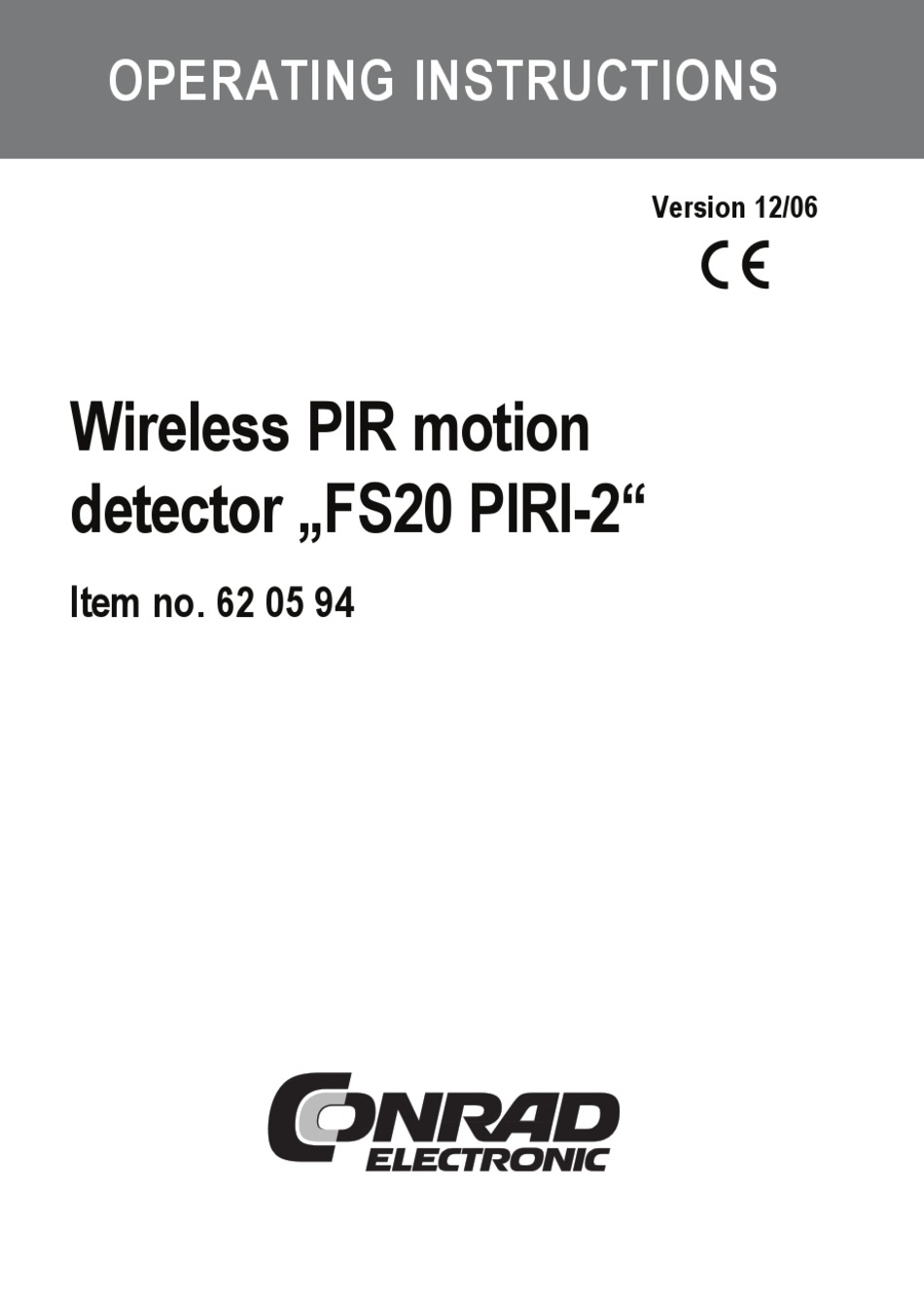

- Page 1 OPERATING INSTRUCTIONS Version 12/06 Wireless PIR motion detector „FS20 PIRI-2“ Item no. 62 05 94...
-
Page 2: Table Of Contents
Features and functions ....................8 Factory setting ......................9 General notes on installation ................. 10 Installing the ‘FS20 PIRI-2’ ..................11 a) Installation with wall bracket ................11 b) Control, display and settings ................13 c) Opening the battery compartment ..............14 d) Inserting the batteries .................. - Page 3 Page e) Setting the transmission interval ................29 Setting the transmit command ................31 g) Setting the filter time ..................... 33 h) Resetting the factory settings ................34 Programming the receiver timer ................35 14. ‘Low Bat’ display and changing batteries ............. 35 15.
-
Page 4: Introduction
1. Introduction Dear customer, Thank you for purchasing this product. This product meets the requirements of both current European and national guidelines. In order to preserve this condition and ensure the safe operation of the product we kindly ask you to carefully follow these operating instructions! Please read the operating instructions completely and observe the safety and operation notes before using the product! All company names and product names contained herein are trademarks of the... -
Page 5: Prescribed Use
2. Prescribed use The 2-channel PIR motion detector ‘FS20 PIRI-2’ is a component of the FS20 wireless control system. It can control up to 2 radio receivers in the FS20 system with separately adjustable criteria. The PIR motion detector registers infrared radiation (heat) of moving people and warm- blooded animals (for the latter, a minimum size is required to trigger the PIR motion detector). -
Page 6: Explanation Of Icons
4. Explanation of icons The icon with a lightning flash in a triangle is used to alert you to potential personal injury hazards such as electric shock. The icon with an exclamation mark in a triangle points to important instructions in this user manual that must be observed. -
Page 7: B) Batteries And Rechargeable Batteries
• Do not leave packaging material lying around. This may become a dangerous plaything in the hands of children. • Handle the product with care; knocks, blows or even a fall from a low height can damage b) Batteries and rechargeable batteries •... -
Page 8: Features And Functions
Optional slow-on/slow-off function for dimmer - Manual switching of the receiver via control buttons on the motion detector possible Caution! The ‘FS20 PIRI-2’ is only suitable for use in dry indoor areas! This device is not waterproof! It must not get damp or wet! -
Page 9: Factory Setting
7. Factory setting The ‘FS20 PIRI-2’ is immediately ready for use and configured with the following factory default settings: • Channel 1 activated (ON) • Activation also in lighted areas (dawn/dusk switch function inactive) • Receiver on-time triggered by movement in front of the detector: 1 minute, then load is switched off (transmit command). -
Page 10: General Notes On Installation
8. General notes on installation • The front coverage lenses of the ‘FS20 PIRI-2’ are supplied with 4 detection levels with 9 upper, 8 middle, 5 lower and 2 creep zone segments. This enables a detection angle of 90° to be achieved at a range of up to 12m. -
Page 11: Installing The 'Fs20 Piri-2
9. Installing the ‘FS20 PIRI-2’ a) Installation with wall bracket The PIR motion detector is equipped with a bracket that is suitable for installation on a wall or ceiling. Because the detector may be adjusted more than 45 degrees when in the bracket, the detection area may be set at almost any angle from the wall and may also be further adjusted after installation. - Page 12 • The location of the drill holes on the wall or ceiling can be marked through the visible screw holes in the bracket. For wall installation (2a) use both holes in the wall bracket. For ceiling installation (2b) a hole needs to be drilled in the middle of the top of the bracket. Make sure that the wall or ceiling can support the device at the marked drill hole locations and avoid all electrical, gas, water and drain lines.
-
Page 13: B) Control, Display And Settings
b) Control, display and settings... -
Page 14: C) Opening The Battery Compartment
1 ‘1’ button 2 ‘2’ button 3 ‘3’ button 4 ‘4’ button 5 DIP switch It is used to switch both channels on and off (DIP switch 1 = channel 1, DIP switch 3 = channel 2) and to switch the dawn/dusk switching function on and off (DIP switch 2 = channel 1, DIP switch 4 = channel 2). -
Page 15: Initial Operation
• Set the respective receiver, according to the instructions in its user manual, to the address programming mode. • Press the ‘2’ button (channel 2: button ‘4’) on the keypad of the ‘FS20 PIRI-2’. • The receiver’s indicator LED goes out. - Page 16 At east one channel must be active in order to control the function and detection area of the ‘FS20 PIRI-2’ with the internal LED display. This means that at least one channel of the DIP switch must be active and not set to ‘Switch on at twilight’...
-
Page 17: The Fs20 Address System
11. The FS20 address system The FS20 address system is based on a house code which allows a number of radio-controlled systems to be operated simultaneously. 256 different addresses can be set within a house code. These addresses divide into four address types with 225 individual addresses, 15 function group addresses, 15 local master addresses and a global master address. - Page 18 You can even implement access authorisations; by assigning three gates to different single addresses and a joint function group (‘gates’), for example. Several people can then each be given a hand-held transmitter with a relevant single address for one garage door, while all the garage doors can be opened via a hand-held transmitter with a programmed function group address or all the doors can be automatically closed in the evening via a FS20 timer.
-
Page 19: Integrating Into The Address System
LED is visible from the start through the main lens). This addressing makes 225 single addresses, 15 function groups, 15 local master addresses and 1 global master address available for use by the ‘FS20 PIRI-2’ within each house code. a) Setting the house code When the batteries are first inserted, the device sets a randomly chosen house code. -
Page 20: B) Setting The Addresses
b) Setting the addresses A channel’s address comprises a two-digit address group and a two-digit subaddress. The address group ‘11’ is factory set for all channels. If several transmitters are to be operated at the same time and control different receivers, then different addresses need to be set on the transmitters.
