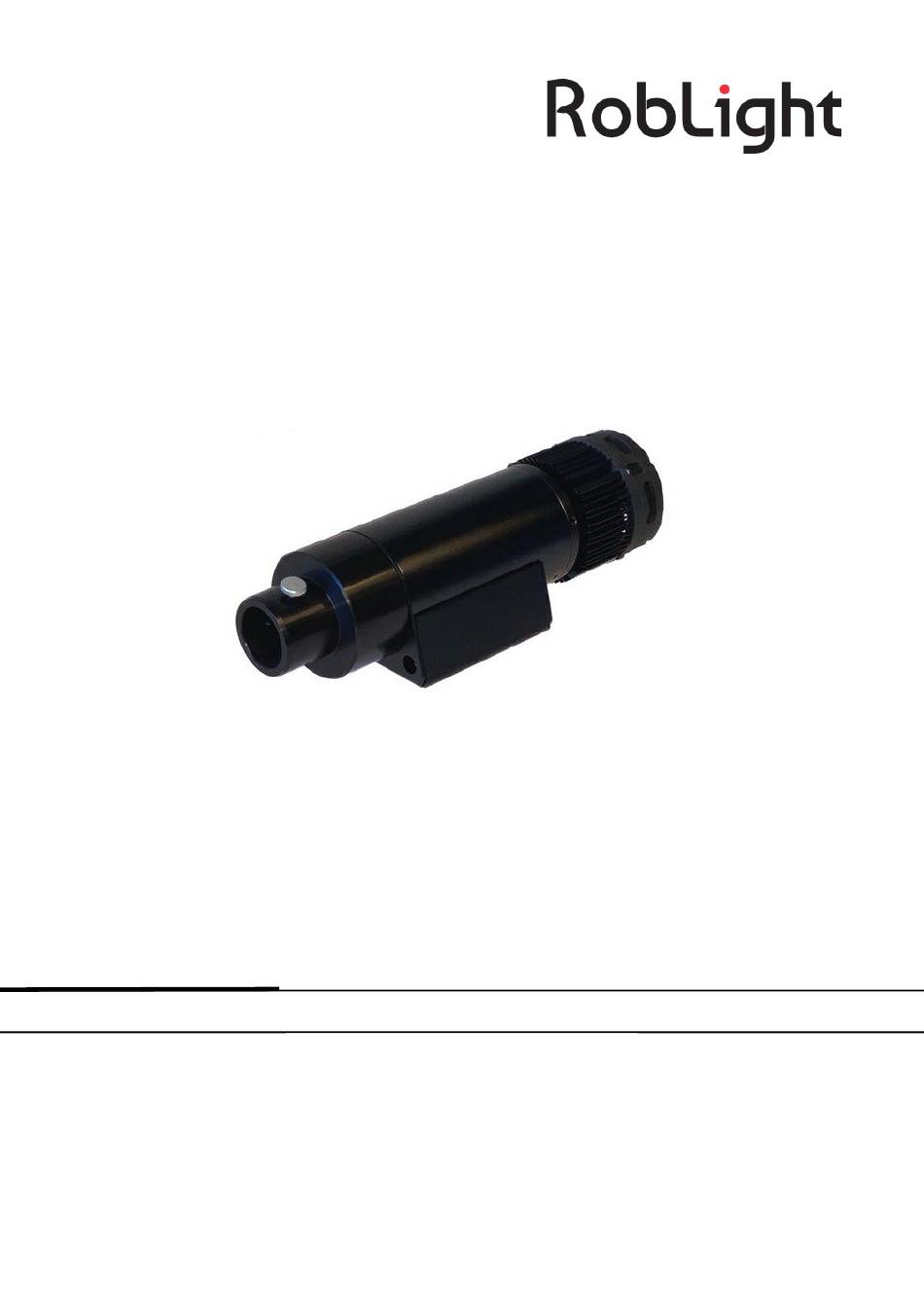

- Page 1 FL 1050 B-2 User manual...
-
Page 2: Installation Instructions
Introduction The RobLight FL 1050 B-2 light generator is designed for indoor use in dry locations with glass and PMMA fibre harness Ø9/Ø28 mm. It can be used in all installations set -ups, including closed compartments if limits for max ambient temperature are followed. -
Page 3: Warranty Label
The extremely high intensity will increase the temperature in the material. Using non RobLight harnesses in this light generator is at its own risk. Ensure that the polyconnector is undamaged and clean before using the light gener- ator in retrofit RobLight installations. -
Page 4: Light Source
Technical data General Light port Ø28 mm Fibre type PMMA or glass Material Aluminium, POM and other Dimensions (L x H x W) 268 x 73 x 86mm Weight (total) 1120g Safety CE, RoHS, WEEE Environmental Protection rating IP 20 Thermal protection Automatic resettable Cooling... - Page 5 Installation instructions a) Remove cap from the light port b) For use with Ø9 harness, mount the Ø28->Ø9 harness adaptor on the common end Tighten the screw with the Allen key c) Insert the common end, fully in the light port d) Tighten the screw on the light port e) Ensure all installation and ventilation requirements are met f) Connect the supply cord to the mains...
-
Page 6: Surface Mounting
Surface mounting Attach to surface using two screws (not supplied) in the baseplate holes Vertical mounting This light generator should not be mounted with light port up. At high ambient tem- perature the operational lifetime of the internal components will be reduced. - Page 7 Closed compartments MAX AMBIENT TEMPERATURE 45°C. Recommendations: (should always be tested in a mock up) Secure enough space to allow natural heat transmission through surfaces. Surfaces should not be insulated. Cooling air for the polyconnector can not be obstructed in any way, as it is essential to avoid damage to the harness.
-
Page 8: Installing Accessories
Installing accessories The 1-10V dimmer potentiometer can be installed following this procedure. Remove lid and wire fasternes from the driver Place dimmer in 1-10V, brown wire in + Place fasternes and lid again Network line Wire from Dimmer 1-10V Potentiometer Wire from Light Generator... - Page 9 Accessories / Spare part Part name Description Item no. Will make the ligth warmer. Will CCT Filter A –500K not fade. 0126 1000 No tools needed Will make the light warmer. Will CCT Filter A –900K not fade. 0126 1002 No tools needed Will make the light warmer.
- Page 10 This light source is not supposed to be otherwise serviced, if used as recommended. The fan can be replaced using standard tools. A replacement kit with guide is avail- able. If the product is not performing as specified, use the troubleshooting guide. If you need further assistance, please contact RobLight.
-
Page 11: Application Notes
Application notes The light generator is an electronic device and must be handled accordingly. The different components will have different factors influencing the practical lifetime. The most important factor for this system is the condition of the surrounding air (temperature and cleanliness). The data we have stated about or and the expected lifetime of the key components, are at the temperatures that the suppliers have performed during their standardized tests in clean environments. -
Page 12: Troubleshooting
