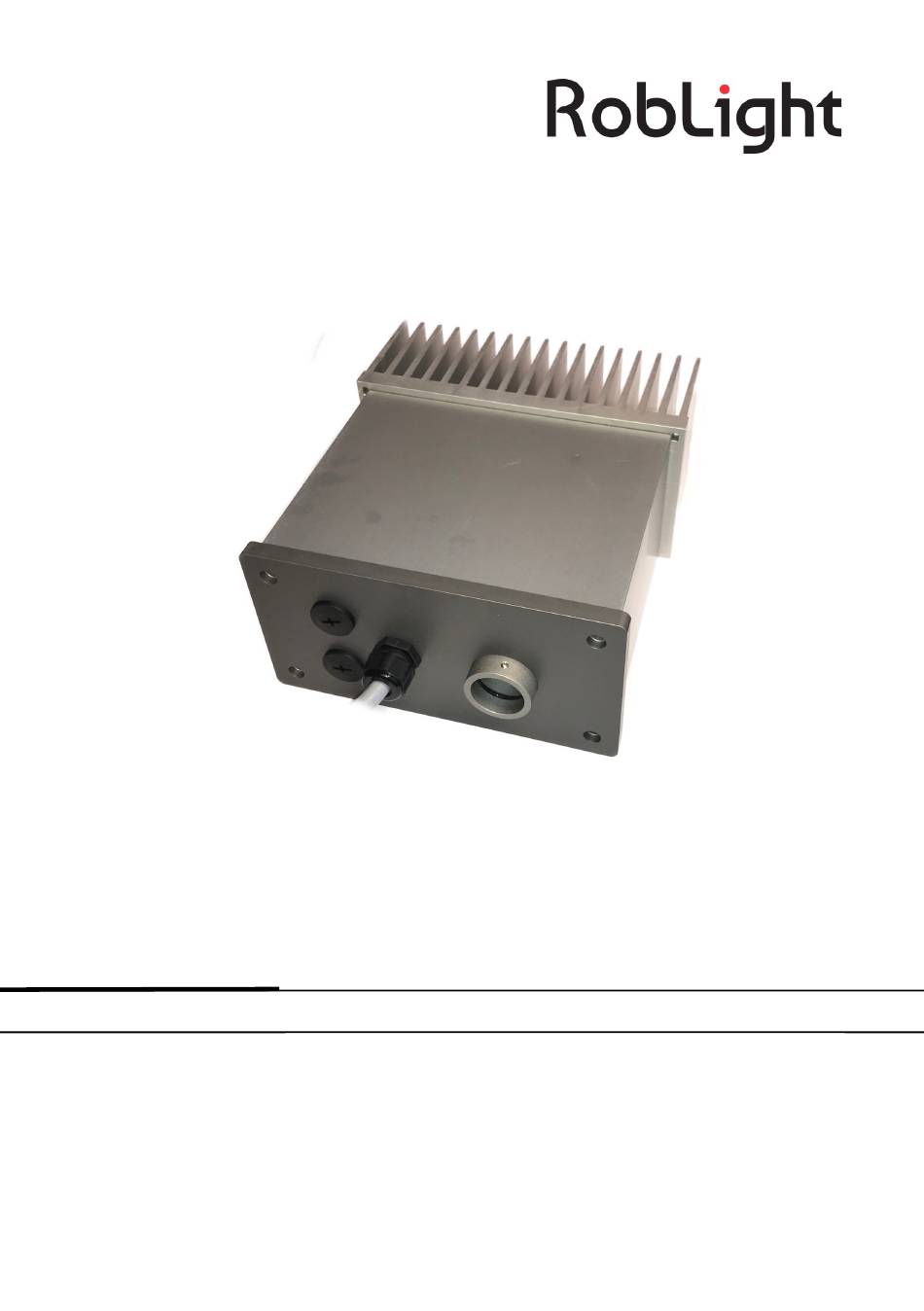

- Page 1 FL 1300 XT-2 C User manual...
-
Page 2: Installation Instructions
Introduction The RobLight FL 1300 XT-2 RGBWDMX light generator is designed for outdoor use with special water proof PMMA fibre harness Ø28 mm. It can be used in all installa- tions set-ups, including closed compartments if limits for max ambient temperature are followed. -
Page 3: Warranty Label
Beware of placing highly light absorbing material directly in front of the port or a fibre. The extremely high intensity will increase the temperature in the material. Using non RobLight harnesses in this light generator is at its own risk. Ensure that the polyconnector is undamaged and clean before using the light gener- ator in retrofit RobLight installations. -
Page 4: Light Source
Technical data General Light port Ø28 mm Fibre type PMMA Material Aluminium, POM and other Dimensions (L x H x W) 260 x 110 x 216 mm Weight (total) 5.0 kg Safety CE, RoHS Environmental Protection rating IP 68 Thermal protection NTC Sensing Cooling Natural convection... -
Page 5: Dmx Protocol
Installation instructions a) Remove cap from the light port b) Check that the end face of the polyconnector is clean and undamaged c) Insert the polyconnector fully in the light port d) Tighten the screw onto the light port with an Allen key e) Ensure all installation and ventilation requirements are met f) Connect the supply cord to the mains WARNING! -
Page 6: Vertical Mounting
Vertical mounting This light generator should not be mounted with light port downwards. At high am- bient temperature the operational lifetime of the internal components and harness will be reduced. - Page 7 Closed compartments MAX AMBIENT TEMPERATURE 40°C. Recommendations: (should always be tested in a mock up) Secure enough space to allow natural heat transmission through surfaces. Surfaces should not be isolated. Cooling air for the polyconnector can not be obstructed in any way, as it is essential to avoid damage to the harness.
- Page 8 Accessories / Spare part Part name Description Item no. DMX 512 Sunlite con- 0160 0302 trol unit USB Factory DMX address- 9903 0071 DMX control unit pro- 9903 0070 gramming per hour...
- Page 9 A brush, vacuum cleaning or light compressed air can be used for the cleaning. This light source is not supposed to be otherwise serviced, if used as recommended. If the product is not performing as specified, use the troubleshooting guide. If you need further assistance, please contact RobLight.
-
Page 10: Application Notes
Application notes The light generator is an electronic device and must be handled accordingly. The different components will have different factors influencing the practical lifetime. The most important factor for this system is the condition of the surrounding air (temperature and cleanliness). The data we have stated and the expected lifetime of the key components, are at the temperatures that the suppliers have performed during their standardized tests in clean environments. -
Page 11: Troubleshooting
Remove dirt and dust from light gene- light generator Light switches ing system. rator. on and off Check the cooling Remove dirt and dust from the light system generator If problems are not solved using this guide, please contact RobLight A/S. - Page 12 RobLight A/S, Nordhavnsvej 1A, DK-9900 Frederikshavn T: +45 9244 4888, E: info@rob-light.com www.rob-light.com RobLight accepts no responsibility for possible errors in catalogues, brochures and other printed material. RobLight reserves the right to alter or discontinue its products without notice. © 2019 RobLight A/S...
