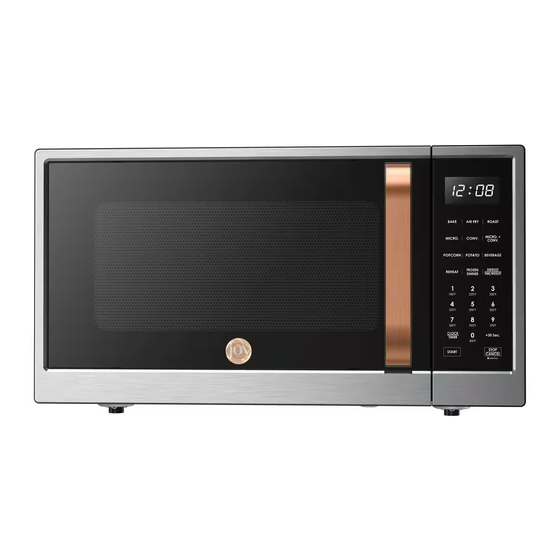

- Page 1 AIR FRY MICROWAVE INSTRUCTIONS FOR USE Only for household use JCMJ913S2AW-10 JCMJ913BKAW-10 Thank you for your purchase of this Galanz microwave. To confirm correct operation and your safety, please read this manual carefully before use and retain it for future reference.
-
Page 2: Table Of Contents
MICROWAVE OVEN OWNER’S MANUAL Safety Information Important Safety Instructions................... Grounding Instructions....................Operating Your Microwave Installation Guide......................Cooking Utensils Guide....................Specifications........................Product Diagram....................... Control Panel........................Operation Instructions....................... One Touch Button Setting The Clock......................Timer Function......................... Microwave Cooking......................Express Cooking......................+30 Sec. Function......................Convection........................ -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY"... - Page 4 11. Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in microwave oven. 12. Do not cover or block any openings on the appliance. 13. Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
- Page 5 26. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
-
Page 6: Operating Your Microwave
INSTALLATION GUIDE 1.Make sure that all the packing materials are removed from the inside of the door. 2. This microwave oven must be placed on a flat surface. 3. For correct operation, the oven must have sufficient airflow. Allow minimum 20cm of free space necessary above the top surface of the oven and 5cm at both sides. -
Page 7: Specifications
between aluminum foil and cavity. Ceramic, porcelain, and stoneware— Use these if they are labeled "Microwave Safe". If they are not labeled, test them to make sure they can be used safely. Plastic — Use only if labeled "Microwave Safe". Other plastics can melt. NOT RECOMMENDED Glass jars and bottles —... -
Page 8: Control Panel
CONTROL PANEL · DISPLAY Cooking time, power, indicators are displayed. · BAKE/AIR FRY/ROAST Use bake, air fry and roast functions to cook food. · MICRO. Press to select microwave power level. · CONV. Press to set convection cooking program. AIR FRY AIR FRY BAKE BAKE... -
Page 9: One Touch Button
SETTING THE CLOCK This is a 24- or 12- hour clock. You can choose to set the clock time in 12 or 24 hour cycles by pressing the CLOCK/TIMER button in standby mode. 1. In standby mode, press and hold CLOCK/TIMER button for 3 seconds to choose 24- hour clock, then press it repeatedly to choose 12- or 24- hour clock. -
Page 10: +30 Sec. Function
+30 Sec. FUNCTION In standby mode, press +30 Sec. button repeatedly to set cooking time (each press to increase 30 seconds, and up to 99 minutes and 99 seconds). The oven will start working automatically. NOTE: During microwave cooking or express cooking program, you can add the cooking time by pressing +30 Sec. -
Page 11: Time Defrost
TIME DEFROST 1. In standby mode, press DEFROST/TIME/ WEIGHT button once. 2. Use number buttons to set defrosting time. The longest time is 99 minutes and 99 seconds. 3. Press START button to start. NOTE: During defrosting, the system will pause to remind user to turn food over, and then press START button to resume the defrosting. -
Page 12: Air Fry
AIR FRY For food code "AF-1"~"AF-7": 1. In standby mode, press AIR FRY button twice, then press it repeatedly again to select food code. 2. Press START button once. 3. Press AIR FRY button repeatedly to set food weight. 4. Press START button to start. Code Food Weight... -
Page 13: Bake
BAKE For food code "Ab-1"~"Ab-3": 1. In standby mode, press BAKE button twice, then press it repeatedly again to select food code. 2. Press START button once. 3. When reached designated temperature, beep will sound. Open the oven door, and then place food into the oven. -
Page 14: Multi-Stage Cooking
For others food: 1. In standby mode, press ROAST button once. 2. Use number buttons (0~9) to select temperature. 3. Press START button. 4. Use number buttons to set cooking time. The longest time is 99 minutes and 99 seconds. 5. -
Page 15: Protection
PROTECTION OVERHEATING PROTECTION: When the system enters into super high temperature protection status, the digital display shows "E03" and continues to beep. After pressing STOP/CANCEL button, the system comes back to normal standby mode. (except microwave function). LOW TEMPERATURE PROTECTION: When the system enters into super low temperature protection status, the digital display shows "E04"... - Page 16 11. Please do not dispose of this appliance into the domestic rubbish bin; it should be disposed to the particular disposal center provided by the municipalities. 12. When the microwave oven with grill function is first used, it may produce slight smoke and smell.
