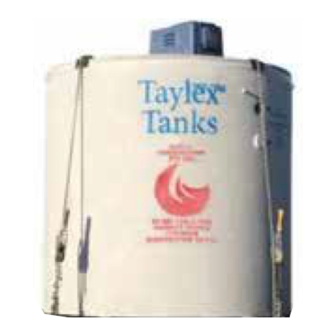

- Page 1 Installation Manual ADVANCED BLOWER SYSTEM 5000 ABS5000 Standard...
-
Page 2: Table Of Contents
ELECTRICAL CONNECTION ......................8 COMMISSIONING ..........................8 10. EXCAVATION & LIFTING INSTRUCTIONS ..................9 a. ABS5000 Excavation Instructions ............. 9 b. ABS5000 Lifting Instructions ..............10 11. ELECTRICAL CONNECTION DIAGRAM ....................11-12 Note: Do not act solely on the basis of the material contained in this document. Items herein are general comments only and do not convey advice per say. -
Page 3: Introduction
This manual has been put together to explain the installation process of the ABS5000 system as a guide only. Some sites may differ in access and slope, which need to be taken into account when delivering and installing the system. -
Page 4: Standards & Licencing
ABS5000 as well as the required local authority approval. If not, it is advised to delay the installation until the plans have been received. -
Page 5: Delivery And Placement
Such vehicles will back up to the hole, lift and slew the tank into position behind the vehicle before placing it into the prepared hole. Maximum reach from the rear of the truck to the centre of ABS5000 will vary depending on the size of the crane. - Page 6 Page 6 of 13...
-
Page 7: Installation
2425 2700 1950 3000 2700 * Refer to Excavation & Lifting Instructions on Pages 9 & 10 STANDARD Taylex ABS5000 ® Top of tank to be a minimum of 100mm above landscaped ground level NON TRAFFICABLE LOADS ONLY NON TRAFFICABLE LOADS ONLY... - Page 8 300mm. Backfilling of excavation to be completed in not more than 500mm equally distributed layers around the tank perimeter. Ensure that sand or excavated material does not fall on the lid of the ABS5000 as this will fall into the system through the manholes and clog the system and irrigation pump.
-
Page 9: Electrical Connection
IMPORTANT: The Taylex ABS5000 System cannot be commissioned unless power is ® connected to the system. The ABS5000 will then be switched on (commissioned) by an Employee of Taylex ® Industries, a Taylex ® Accredited Distributor (TAD) or a Taylex ®... -
Page 10: Abs5000 Excavation Instructions
5. Backfill with soil from Excavation in no more than 500mm equally distributed layers around the tank. Avoid backfilling with rocks 2. Ensure drainage has a 1/60 fall to the inlet of ABS5000. Risers over 300mm. are available if the tank needs to be installed deeper in the ground to maintain fall 6. -
Page 11: Abs5000 Lifting Instructions
1. Always use a Spreader Bar and ensure it is certified 2. Lower chains through TOP lifting holes provided in the lid of the ABS5000 3. Loop chains through the lifting holes directly below on the inside wall of the ABS5000 4.
