EN

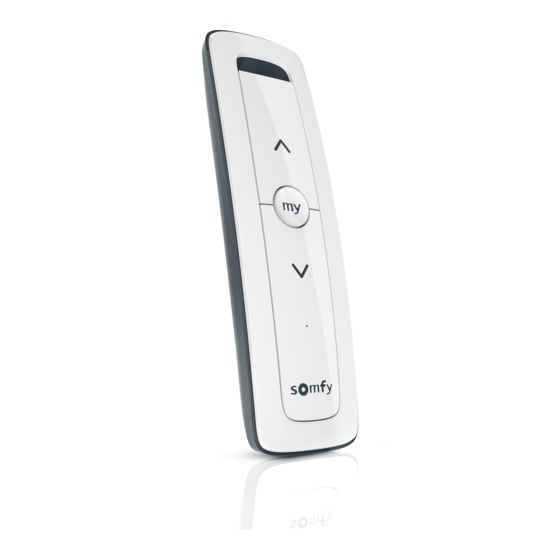

The Situo 1 io remote control allows a group of one or
more io-homecontrol® applications to be controlled.
The Situo 5 io remote control allows up to 5 groups of one or
more io-homecontrol® applications to be controlled.
Situo 1 io
1. Safety and liability
1. 1. Liability
Situo 5 io
These instructions must be kept by the user. Failure to follow
these instructions or use of the product outside its field of
application is forbidden, and will invalidate the warranty and
discharge Somfy of all liability. This Somfy product must be
installed by a professional drive and home automation installer.
Moreover, the installer must comply with the standards and
legislation currently in force in the country in which the product
is being installed, and inform his customers of the operating
and maintenance conditions for the product.
Never begin installing without first checking the compatibility of
this product with the associated equipment and accessories. If
in doubt when installing this product and/or to obtain additional
information, contact a Somfy adviser or go to the website www.
somfy.com.
1. 2. Safety instructions
If used with a motor, you should also consult the instructions
provided with the motor.
Do not use or install this product outdoors.
Keep the product out of the reach of children.
Do not use abrasive products or solvents to clean it.
Do not knock or drop the product, expose it to flammable
EN
INSTRUCTIONS
materials or sources of heat or moisture, or splash or immerse it.
SL
NAVODILA
Warning
This product contains a button battery.
Do not swallow the battery: risk of potentially fatal chemical
burns in less than 2 hours.If the battery is inserted into a part of
the body or if in any doubt, call a doctor immediately.
Keep batteries (new and used) and the product out of the reach
of children. If the battery compartment no longer closes, do
not use the product and keep it away from children. Risk of
explosion, leaking flammable liquids or gases from the battery
if it is kept at a high temperature (hot oven, fire), crushed, cut
or subject to very low air pressure.Non-rechargeable batteries
must not be recharged.
2. Situo 1 io and Situo 5 io in detail
Wall mounting recess
a
Up/On/Open button
b
STOP/my button
c
Down/Off/Close button
d
Button activation indicator light
e
Button activation and group selection indicator lights
f
Group selector
g
PROG button
h
Specific autonomous mode selector
i
Wall mounting.
j
3. Selection of groups on Situo 5 io
͉
͉
Before using the Situo 5 io remote control, check that the
correct group has been selected.
-
Short press on the group selector
g
group selected.
-
Press several times: change the group selected.
The indicator light
for each group from 1 to 4 is lit individually
f
then all the indicator lights are lit if group 5 is selected.
4. Installation
4. 1. Adding/removing a Situo io remote control
(Figure C)
͉
͉
To program the first control: refer to the instructions for the
io motor or receiver.
To add or delete a Situo io to or from an application:
On the individual control already associated with the
1)
application:
Press the PROG button (≈ 2 s) until the application moves
up and down.
On the Situo io to be added or removed:
2)
͉
͉
For Situo 5 io, first select the group
g
Briefly press the PROG button: the application moves up
and down and the Situo io is added or removed.
SL
Daljinski upravljalnik Situo 1 io omogoča upravljanje
ene naprave ali ene skupine naprav s sistemom
io-homecontrol®. Daljinski upravljalnik Situo  5  io omogoča
upravljanje največ 5  skupin ene ali več naprav s sistemom
io-homecontrol®.
1. Varnost in odgovornost
1. 1. Odgovornost
Uporabnik mora ta navodila shraniti. Neupoštevanje teh navodil
ali uporaba naprave, ki ne ustreza predvidenim namenom,
je prepovedana in družbo Somfy odvezuje odgovornosti ter
razveljavlja garancijo. To napravo Somfy mora namestiti
usposobljen monter pogonskih sistemov in sistemov za hišno
avtomatizacijo. Monter mora upoštevati veljavne standarde in
zakonodajo v državi namestitve in uporabnike seznaniti s pogoji
uporabe in vzdrževanja naprave.
Pred vsako namestitvijo preverite, ali je naprava združljiva z
drugo priključeno opremo in dodatki. Če se med nameščanjem
naprave pojavi kakršen koli dvom ali če potrebujete dodatne
informacije, se obrnite na predstavnika družbe Somfy ali
obiščite spletno stran www.somfy.com.
1. 2. Varnostna navodila
V primeru uporabe z motorjem upoštevajte tudi navodila,
priložena motorju.
Naprave ne nameščajte ali uporabljajte na prostem.
Napravo hranite zunaj dosega otrok.
Za čiščenje ne uporabljajte abrazivnih sredstev ali topil.
Naprava ne sme nikoli pasti na tla, ni je dovoljeno tresti, ne
sme priti v stik z vnetljivimi materiali ali viri toplote, vlago ali
tekočino, prav tako se ne sme potapljati v tekočino.
Opozorilo
Ta naprava vsebuje gumbasto baterijo.
Baterija se ne sme zaužiti: v samo dveh urah lahko to povzroči
smrtno nevarne kemične opekline. V primeru vnosa baterije v
kateri koli del telesa ali v primeru dvomov nemudoma pokličite
zdravnika.
Baterije (nove in prazne) in napravo hranite zunaj dosega otrok.
Če se prostor za baterije ne zapre popolnoma, naprave ne
uporabljajte več in jo hranite zunaj dosega otrok. Nevarnost
eksplozije, uhajanja vnetljive tekočine ali vnetljivih plinov iz
baterije, če je izpostavljena visoki temperaturi (topla peč, ogenj)
ali izjemno nizkemu zračnemu tlaku, če se zmečka ali poči.
(Figure A)
Baterije, ki niso namenjene polnjenju, se ne smejo polniti.
2. Podrobneje o daljinskem upravljalniku
Situo 1 io in Situo 5 io
(Slika A)
Mesto pritrditve na stenski nosilec
a
Gumb Gor/Vklop/Odpri
b
Gumb STOP/my
c
Gumb Dol/Izklop/Zapri
d
Kontrolna lučka pritiska na gumb
e
Kontrolne lučke pritiska na gumb in izbire skupine
f
Izbirnik skupine
g
Gumb PROG
h
(Figure B)
Izbirnik posebnega samostojnega načina
i
Stenski nosilec
j
3. Izbira skupin na daljinskem upravljalniku
: visualisation of the
Situo 5 io
(Slika B)
͉
͉
Pred uporabo daljinskega upravljalnika Situo 5 io
preverite, ali je izbrana prava skupina.
-
Kratek pritisk na izbirnik skupine
: prikaz izbrane
g
skupine.
-
Večkratni pritisk: sprememba izbrane skupine.
Za vsako od skupin od 1 do 4 posamezno zasveti kontrolna
lučka
, če pa je izbrana skupina 5, zasvetijo vse kontrolne
f
lučke.
4. Namestitev
4. 1. Dodajanje/odstranjevanje daljinskega
upravljalnika Situo io
(Slika C)
͉
͉
Za registracijo prvega upravljalnika: glejte navodila za
motor ali sprejemnik io.
Za dodajanje ali brisanje daljinskega upravljalnika Situo io pri
napravi z aplikacijo:
.
Na posameznem daljinskem upravljalniku, že povezanem
1)
z napravo z aplikacijo:
Pritisnite gumb PROG (≈ 2 s), dokler se naprava ne
pomakne gor in dol.
Na daljinskem upravljalniku Situo io, ki ga želite dodati ali
2)
izbrisati:
͉
͉
Pri daljinskem upravljalniku Situo 5 io najprej izberite
skupino
.
g
Kratko pritisnite gumb PROG: naprava se pomakne gor
in dol, nato je Situo io dodan ali izbrisan.
A
Situo 1 io
a
b
c
d
i
h
e
Situo 5 io
a
b
c
d
i
h
f
g
j
B
1
2
3
4
5
C
1)
2 s
2)
0,5 s
1/2
