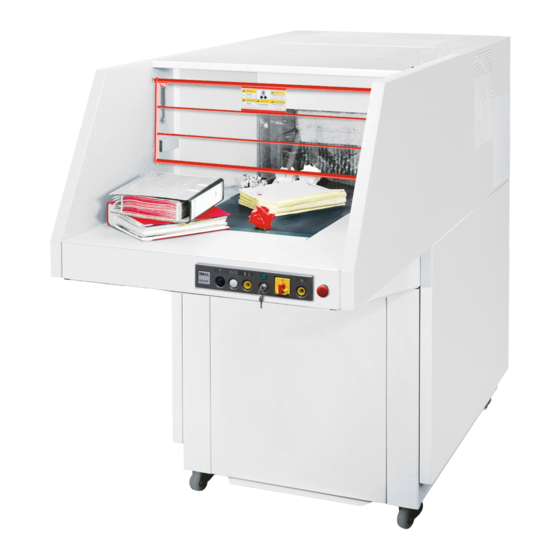

KRUG+PRIESTER IDEAL 5009-2 CC Operating Instructions Manual

Document shredders modular conveyor belt system
Hide thumbs Also See for IDEAL 5009-2 CC:

Advertisement

Quick Links

Download this manual
Document Shredders
Modular conveyor belt system
IDEAL 5009-2 CC
IDEAL 5009-3 CC
5009 7050 EN 9700031 9700074
08-2022 20221212zm
EN
Operating Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the IDEAL 5009-2 CC and is the answer not in the manual?

Questions and answers

Related Manuals for KRUG+PRIESTER IDEAL 5009-2 CC

Summary of Contents for KRUG+PRIESTER IDEAL 5009-2 CC

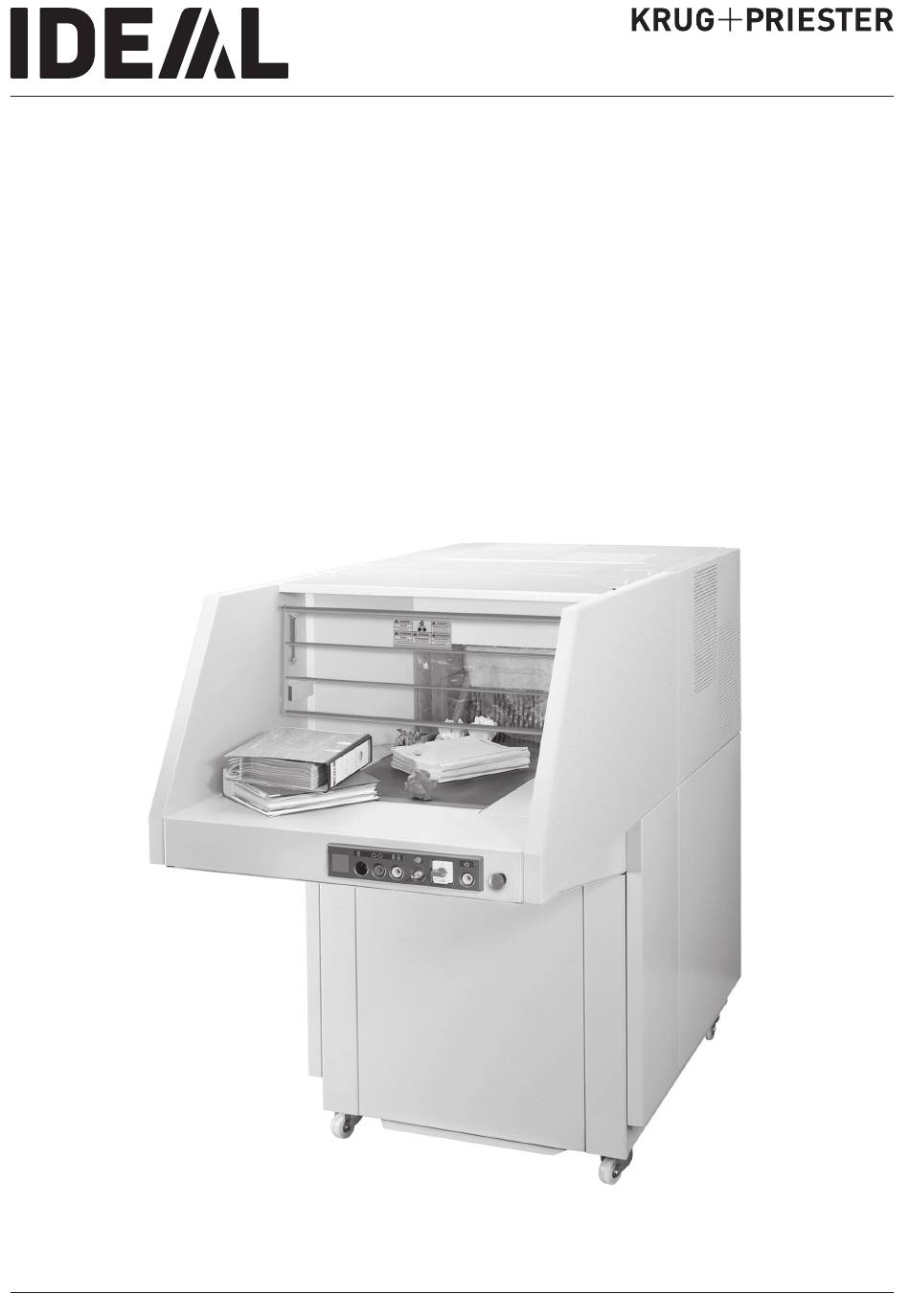

  • Page 1 Document Shredders Operating Instructions Modular conveyor belt system IDEAL 5009-2 CC IDEAL 5009-3 CC 5009 7050 EN 9700031 9700074 08-2022 20221212zm...

  • Page 2: Table Of Contents

    • Table of Contents • Intended use Safety precautions Installation Operation Possible malfunctions Accessories Technical Information EC-declaration of conformity 5009 7050 EN 9700031 9700074 08-2022 20221212zm...

  • Page 3: Intended Use

    • Intended use • • Safety precautions • Intended use 1. This document shredder is intended for shredding lose or crumpled up paper, cartons, including staples, and a small number of discs. 2. The rugged single-blade cutting unit shreds entire file folders, including ring binder mechanism.

  • Page 4: Safety Precautions

    • Safety precautions • Please ensure to read this operating manual before starting the machine for the first time and please strictly follow the safety instructions mentioned herein. This manual must be available at any time. Take care of long hair! Do not grasp into the cutting mechanism! Take care of ties and other loose pieces of clothing! Caution, moving parts!
  • Page 5 • Safety precautions • No operation by children! Do not destroy accumulators/batteries! Do not use any spray cans with flammable content near to the document shredder! Do not use any flammable cleaning agents. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 6 • Safety precautions • Quick stop  Press emergency stop! This machine is designed for one-man operation only ! All components which could endanger the operator are covered by a guard. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 7 • Safety precautions • No operation without the following safety devices: • Covering panels (A) tightly screwed. • Grid (B) and door (C) which are secured by switches. Machine operates only when the door ..and grid are closed. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 8 • Safety precautions • Do not use any kind of uplift assistance Remove the mains plug before cleaning the machine ! Do not carry out your own repairs on the paper shredder ! (See page 27). 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 9 • Safety precautions • Protect mains cable against heat, oil and from sharp edges. When not in use for a longer time switch off the machine. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...

  • Page 10: Installation

    • Installation • The transport safety device (A) and (B) must be mounted when the machine is transported lengthwise. The machine must be transported from the rear. Make sure the pallet-jack is centred under the machine. Do not lift up the machine from the operating side.
  • Page 11 • Installation • • Do not cover the ventilation slits. • Consider the floor loading. Weight approx. 1200 kg. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 12 • Installation • • Open the door. • Remove the transport safety device (A) and keep for later use. • Mount the supporting screws (A). • Screw down the supporting screws until the rear castors are balanced. Waste cart • Put the plastic bag into the waste cart as described under "replace bag".
  • Page 13 • Installation • Conveyor belt (Accessory) When using a conveyor belt the following modifications must be made on the machine: Remove the back transport safety device (B). Remove the springs from the ball-ends (A) on both sides. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 14 • Installation • Dismount the tie-bar. Push the pusher to the back. Push back the conveyor belt into the machine. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 15 • Installation • Turn both handles to lock. Plug into the wall socket. If the machine is to be operated with a waste cart the rear transport safety device (A) and tie-bar (B) must be re-assembled. To assemble follow the same instructions in the reverse order.
  • Page 16 • Installation • Check the direction of the conveyor belt. Start the machine. Wrong rotating direction  Changes must be done by an electrician. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...

  • Page 17: Operation

    • Operation • Operating elements - Start - Stop, light for "door open" and "grid open" - Reverse switch, lamp showing "bag full" - Key switch - Standby - Mains switch - Temperature indicator / yellow pilot light - Emergency-stop Starting the machine Grid (A) must be closed.
  • Page 18 • Operation • • Emergency-stop (A) pulled out. • Main switch (B) to position "I". • Switch on the key switch (D) • Turn key switch  standby (C) illuminates. • Press the black button (E)  conveyor belt is running. Distribute the paper over the feeding belt.
  • Page 19 • Operation • Stopping the machine Press the white button (A) or emergency-stop (B). Keep hands away from running shredding mechanism. When large amounts of paper are inserted the machine automatically adjusts to a more powerful, slower capacity. If this capacity is still not powerful enough the machine will reverse shortly and then return to "forwards mode".
  • Page 20 • Operation • Yellow pilot light flashes. Motor is overheated  reduce the amount of material on the feeding belt. The machine should work preferably at high speed. Stopping the machine • Turn main switch (A) to position "0"  the entire machine shuts down.
  • Page 21 • Operation • Stops automatically when grid is opened.  Indicator for (O) lights. Stops automatically when plastic bag is full.  Indicator for (R) lights. Replace bag. The "bag full" indicator lights. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 22 • Operation • • Open the door. • Pull out the waste cart. • Pull the bag onto a pallet. Fasten the bag. (For sealing parts and binding wires see accessories). • Put a new bag into the bag frame. •...

  • Page 23: Possible Malfunctions

    • Possible malfunctions • Machine will not start Is the machine plugged in? The "bag full" indicator lights.  Replace bag. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 24 • Possible malfunctions • Is the Grid open?  Close it. Door is open?  Close it. Conveyor belt (accessory) is not locked?  Turn both handles to lock. 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 25 • Possible malfunctions • Standby (A) is not lighting up. • Is the key-switch horizontal? • Main switch is on "I", • Emergency button is pulled out. • Is the machine plugged in? Check fuse-box of the building? 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
  • Page 26 • Possible malfunctions • Machine stops Yellow pilot light illuminates.  Wait approx. 10 to 20 minutes for the machine to cool down. Start afresh. Yellow pilot light (A) illuminates, green light (B) is out  Conveyor belt is overloaded. Press the motor protection switch (C) after approx.
  • Page 27 • Possible malfunctions • No performance?  An electrician must examine the phases. Machine door is difficult to open.  Clean and grease the guiding bar (A). Do not use grease or oil containing resin. Did none of the specified solutions help you with your problem? Service Contact: Service...

  • Page 28: Accessories

    • Accessories • Recommended accessories Module conveyor belt system (conveyor belt) • 9000 595 Environmentally friendly oil 5 x 1,0 l • 9000 621 Pusher • 9000 593 Plastic bags 350l (5 pieces) Plastic bags 350l (50 pieces) • 9000 414 Wire twisting tool •...

  • Page 29: Technical Information

    • Technical data • Fuse protection on: 400 V/ 3ph/ 32 A, characteristics C (alternative K or D) 220 V/ 3ph/ 100 A, characteristics C (alternative K or D) 200 V/ 3ph/ 100 A, characteristics C (alternative K or D) Sound level EN 13023: 74 dB(A) With conveyor belt system Sound level...
  • Page 30 • Technical data • The company Krug + Priester has the following certifications: • Quality management system according to DIN EN ISO 9001:2015 • Environmental management system according to DIN EN ISO 14001:2015 • Energy management system according to DIN EN ISO 50001:2018 5009 7050 EN 9700031 9700074 08-2022 20221212zm...

  • Page 31: Ec-Declaration Of Conformity

    EC-declaration of conformity - Herewith we declare that 5009-2; 5009-3; GS-ID No. 11500902 UL-ID No. 10500902 - complies with the following provisons applying to it 2006/42/EG EC Machinery directive 2014/30/EU EMV Electromagnetic compatibility directive - Applied harmonised standards in particular EN 60204-1;...
  • Page 32 Made in Germany Krug & Priester GmbH & Co. KG Simon-Schweitzer-Str. 34 D-72336 Balingen (Germany) www.krug-priester.com 5009 7050 EN 9700031 9700074 08-2022 20221212zm...
