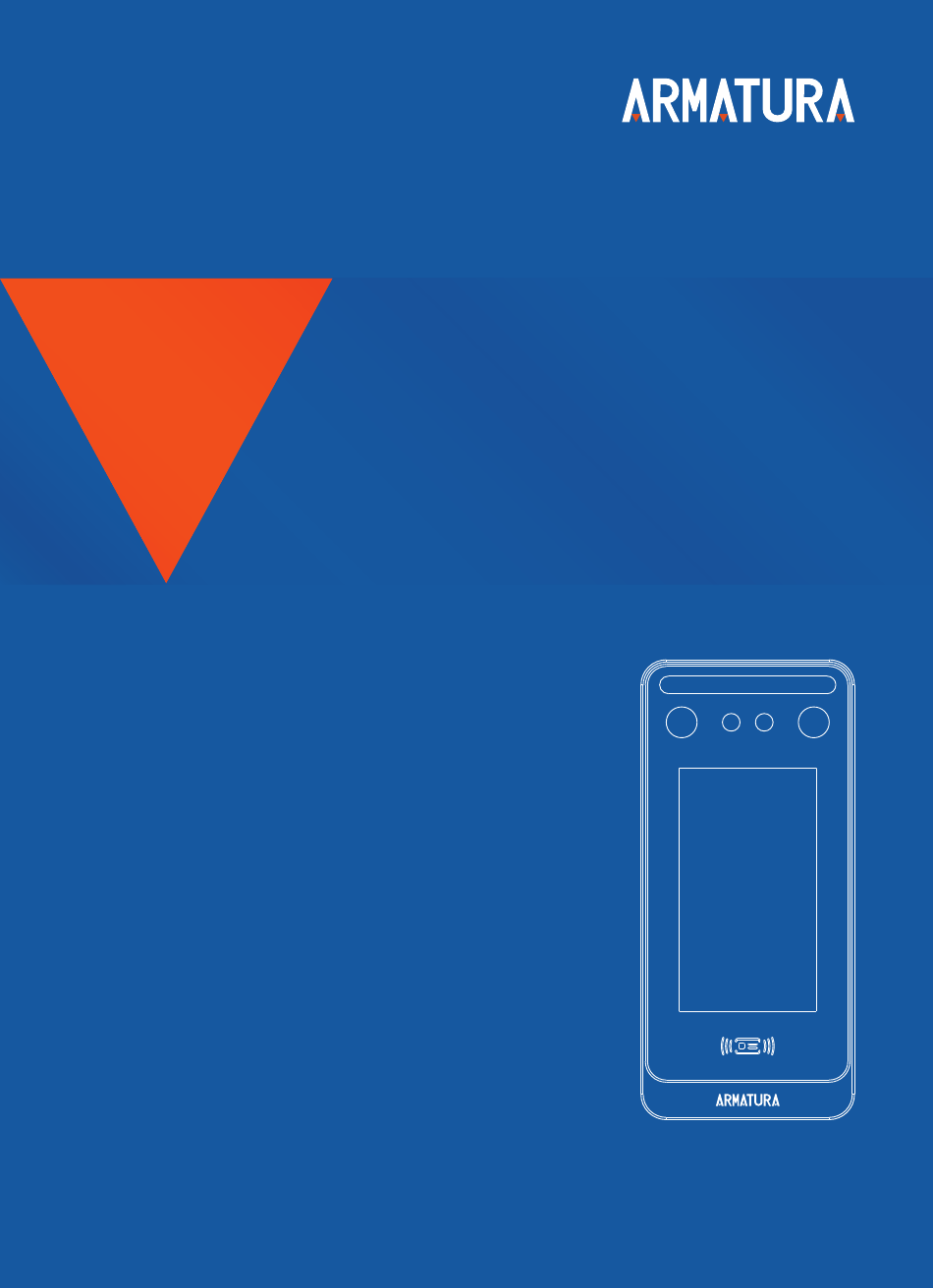

- Page 1 OmniAC30CAPQ Installation Guide Version: 1.1...
- Page 2 How to Install the Device? Installation Environment Please refer to the following recommendations for installation. 10ft KEEP DISTANCE AVOID GLASS AVOID DIRECT KEEP EFFECTIVE REFRACTION SUNLIGHT DISTANCE AND EXPOSURE 0.3-2.5m Device Installation With Backplate ★: Attach the mounting template sticker to the wall, and drill holes according to the mounting paper.
- Page 3 With Back Cover: Attach the mounting template sticker to the wall, and drill holes according to the mounting paper. Fix the Back Cover on the wall using wall mounting screws. Attach the device to the Back Cover. Fasten the device to the Back Cover with a security screw. ①...
- Page 4 Wiring Diagram Power Connection Recommended AC Adapter 1) 12V ± 10%, at least 3000mA. 2) To share the power with other devices, use an AC Adapter with higher current ratings. Ethernet Connection Connect the device and computer software over an Ethernet cable. As shown in the example below: Default IP address: 192.168.1.201 IP address: 192.168.1.130...
- Page 5 Wiegand Reader and RS485 Connection Access 485 Reader Controller 485- 485B 485+ 485A +12V 12V-OUT WD1-OUT WD0-OUT IWD1 IWD0 +12V 12V-OUT Wiegand Reader Door Sensor, Exit Button, Auxiliary Connection Smoke Detector Detector Power Door Sensor Alarm ExitButton Alarm Power...
- Page 6 Lock Relay Connection The system supports Normally Opened Lock and Normally Closed Lock. The NO LOCK (normally unlocked when power-on) is connected with 'NO' and 'COM' terminals, and the NC LOCK (normally locked when power-on) is connected with 'NC' and 'COM' terminals. Take NC Lock as an example below: 1)Device not sharing power with the lock Lock...
- Page 7 Printer Connection 12V-OUT RS232-RXD RS232 Cable RS232-TXD Printer...
