Product Brief

Nortel Ethernet Routing Switch 3510-24T
Cost-effective Gigabit switching for small and medium businesses and branch offices
Nortel Ethernet Routing Switch 3510-
24T is designed to address the needs of
small and medium businesses or a branch
office of an enterprise and brings inex-
pensive Gigabit desktop connectivity to
them. The switch provides investment
protection by allowing devices to be
connected at either 10 Mbps, 100 Mbps
or 1,000 Mbps to accommodate the
ever-growing bandwidth and low delay
requirements to end users running crit-
ical business applications. Customers can
now take full performance advantage of
PCs, laptops and servers that are gigabit-
enabled.

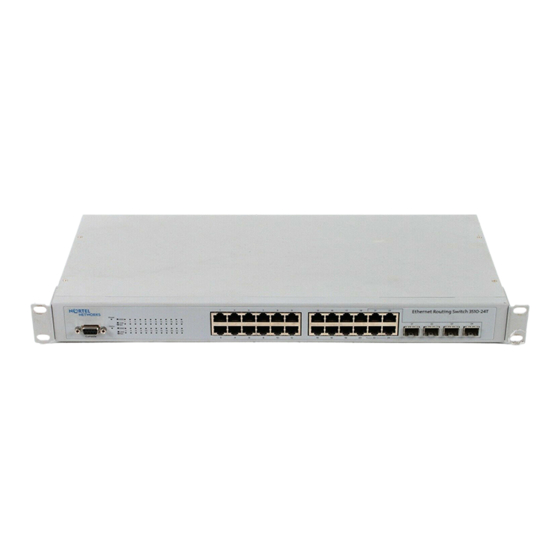

Figure 1. The Ethernet Routing
Switch 3510-24T
Ease of configuration using Nortel's
Java™ Device Manager software or
Web-based management save customers
significant time in setting up the switch.
Also, these features require minimal
technical expertise to configure the
switch. In addition, the switch provides
small and medium business and branch
offices with the comfort of knowing that
this product will continue to provide
advanced features as the network
requirements continue to evolve.
3510 Switch benefits
> Affordable high-performance desktop switching
> Ease of configuration using Nortel's Java
software or a Web browser
> Space savings with compact design
> Wire-speed operation assures high performance
> Hardware-based Layer 3 routing at wire-speed
> QoS support for mission-critical applications
> Secure access helps prevent unauthorized user access
> Worry-free lifetime warranty
Ethernet Routing Switch 3510-24T is a
standalone 24-port 10/100/1000 Mbps
Ethernet Layer 3 routing switch with
four SFP (Small Form factor Pluggable)
uplink ports for fiber connection. For
the branch office application, the switch
also offers advanced features such as
Multi-Link Trunking, IGMP Snooping,
VLAN Trunking and flexible manage-
ment tools to help you efficiently
manage your network traffic.
Device Manager
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3510-24T and is the answer not in the manual?

Questions and answers

Related Manuals for Nortel 3510-24T

Summary of Contents for Nortel 3510-24T

  • Page 1: Product Brief

    3510 Switch benefits > Affordable high-performance desktop switching > Ease of configuration using Nortel’s Java software or a Web browser > Space savings with compact design > Wire-speed operation assures high performance >...

  • Page 2: Features And Benefits

    Features and benefits Highest-density Gigabit desktop switching The Ethernet Routing Switch 3510-24T features 24 10/100/1000BASE-T RJ-45 ports for desktop switching and four built-in shared SFP (Small Form factor Pluggable) ports for uplink connectivity to servers or backbone switches. Port 21...
  • Page 3 NSC, complex QoS configura- tions are eliminated. NSC simplifies the deployment of a QoS-enabled network with Nortel switching solutions, using a Web-based interface. This not only saves on provisioning time but, most importantly, ensures that the QoS func- tions are provisioned consistently across the network.
  • Page 4 It also offers secure configuration and monitoring. IP Manager List limits access to the management features of the Ethernet Routing Switch 3510 by a defined list of IP addresses or IP address ranges/ subnets, providing greater network security and manageability.

  • Page 5: Network Management

    Let us show you how the Ethernet Routing Switch 3510, along with other Nortel products, can increase your profitability, streamline your business operations, increase productivity, and help you gain the...
  • Page 6 Technical specifications Table 1. Ethernet Routing Switch 3510-24T technical specifications Physical specifications Weight: 3.2 kg (7 lb) Height: 4.45 cm (1.75 in) Width: 43.82 cm (17.25 in) Depth: 20.80 cm (8.19 in) Performance specifications • Switch fabric bandwidth 80 Gbps for the switch •...

  • Page 7: Ordering Information

    1-port 1000BASE-CWDM SFP GBIC – 1590nm Wavelength (70km), LC connector AA1419040 1-port 1000BASE-CWDM SFP GBIC – 1610nm Wavelength (70km), LC connector ** The seventh character (?) of the switch order number must be replaced with the proper code to indicate desired product nationalization: “A” – No power cord included “B”...
  • Page 8 For more information, contact your Nortel representative, or call 1-800-4 NORTEL or 1-800-466-7835 from anywhere in North America. This is the Way. This is Nortel, Nortel, the Nortel logo, the Globemark, Optivity and Passport are trademarks of Nortel Networks. All other trademarks are the property of their owners.
