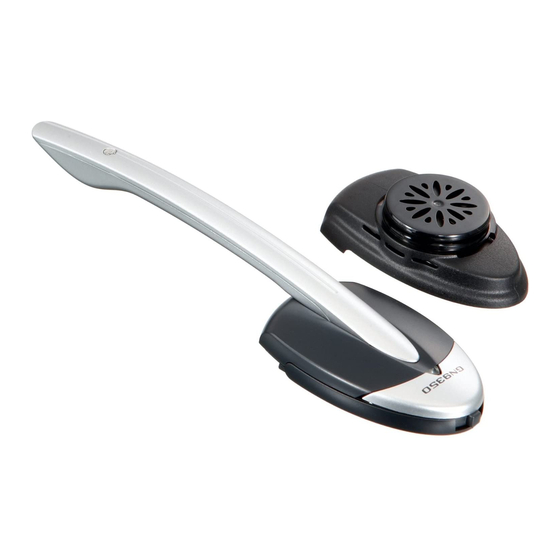

Jabra GN9350e

How to connect my Jabra GN9350e with Alcatel Touch 4029,

4039

Prerequisite :

Jabra GN 9350 + Jabra Link 14201-09

In combination with one of the following phones:

IP Touch 4029

IP Touch 4039

2-sided end:

Insert the RJ45 plug into the socket marked with "AUX" and the RJ10 plug

into the base socket of the Jabra GN9350 marked with the "phone"

symbol.

2-fold Y-coupling end:

Insert the 3.5 mm audio jack into the headset interface and the RJ12 plug

into the bell socket of the phone. Now insert the phone's phone cable

directly into the additional connector socket of the Y cable.

https://www.jabra.com/supportpages/jabra-gn9350e/9326-607-405/faq/307c489b-8b15-

4dd3-be2b-4d6ff48bc1c1

12/02/2023 06:15

Page 1 of 4

Table of Contents

Do you have a question about the GN9350e and is the answer not in the manual?

Page 1 Connection: 2-sided end: Insert the RJ45 plug into the socket marked with "AUX" and the RJ10 plug into the base socket of the Jabra GN9350 marked with the “phone” symbol. 2-fold Y-coupling end: Insert the 3.5 mm audio jack into the headset interface and the RJ12 plug into the bell socket of the phone.
Page 2 12/02/2023 06:15 Software setup: In the LCD display, set the Jabra GN9350 to "MSH" and press the OK button. Base setup: Set the phone setup switch (A-G) to the "A" position. Microphone level setup: We recommend setting the microphone volume in the LCD display to 7 out of 12.
Page 3 Menu> Settings> Phone> Audio Jack> Force Headset OFF Menu> Settings> Phone> Socket > Activate Headset Dial tone signal transfer/ phone setup: Important: The dial tone signal in the headset is only transmitted if one of https://www.jabra.com/supportpages/jabra-gn9350e/9326-607-405/faq/307c489b-8b15- Page 3 of 4 4dd3-be2b-4d6ff48bc1c1...
Page 4 Dial the phone number > "Forward" will now appear in the phone display > now press on to the appropriate function key next to the phone display > thereafter you must end the call with the button marked "Handset". https://www.jabra.com/supportpages/jabra-gn9350e/9326-607-405/faq/307c489b-8b15- Page 4 of 4 4dd3-be2b-4d6ff48bc1c1...
