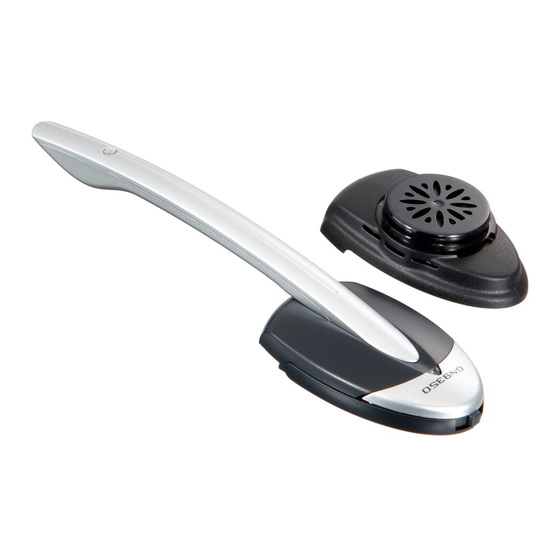

Jabra GN9350e Quick Start Manual

How to connect my Jabra GN9350e with Aastra Open Phone
6771, 6773, 6775, 71, 73, 75, Aastra 6739i, Aastra 7434 and
7444
Jabra GN9350e MS

Prerequisite:

Jabra GN9350 + Jabra LINK 14201-10
In combination with one of the following phones:
Open Phone 6771/ 6773/ 6775 including IP (previous name: Open
Phone 71/73/75 including IP)
Aastra 6739i
Aastra 7434 / 7444 IP

Connection:

1. Plug the 1-sided end of the DHSG cable marked "blue" into the socket
of your phone marked with the "headset" symbol.
2. Plug the RJ10 plug into the socket marked with a complete "phone"
symbol and the RJ45 plug into the base socket of the Jabra GN9350
marked with "AUX".

Software setup:

In the LCD Display, set the Jabra GN9350 to "DHSG" and press the OK
button.
