Prosense PPS‐RCO Quick Installation Guide
Detector Connections
PPS‐RCO Series detectors has a power input and three relay output sockets on main board:
ALARM2
ALARM1
FAULT
PPS‐RCO Serisi detectors has three integrated relays on main board which are named as
Alarm1, Alarm2 and Fault. Relays are not energised and only works as NO (Normally Open)
status. It is not possible to adjust relay activation method. Alarm1 relay will be activated
when alarm1 threshold level exceeded. When Alarm2 threshold level reached Alarm 1 and
Alarm2 relay will be activated together. Fault relay will be activated only on fault conditions.
Alarm levels are adjustable to predefined levels. Switches 6 and 7 should be used to change
alarm levels.
Diagram 2: PPS‐RCO Series detector alarm level adjustment switches
Alarm levels and related switch positions are given in table‐3:
Switch 6
OFF
OFF
ON
ON
PRS‐QIG‐PQ‐EN‐Rev.01‐11.2018
V‐

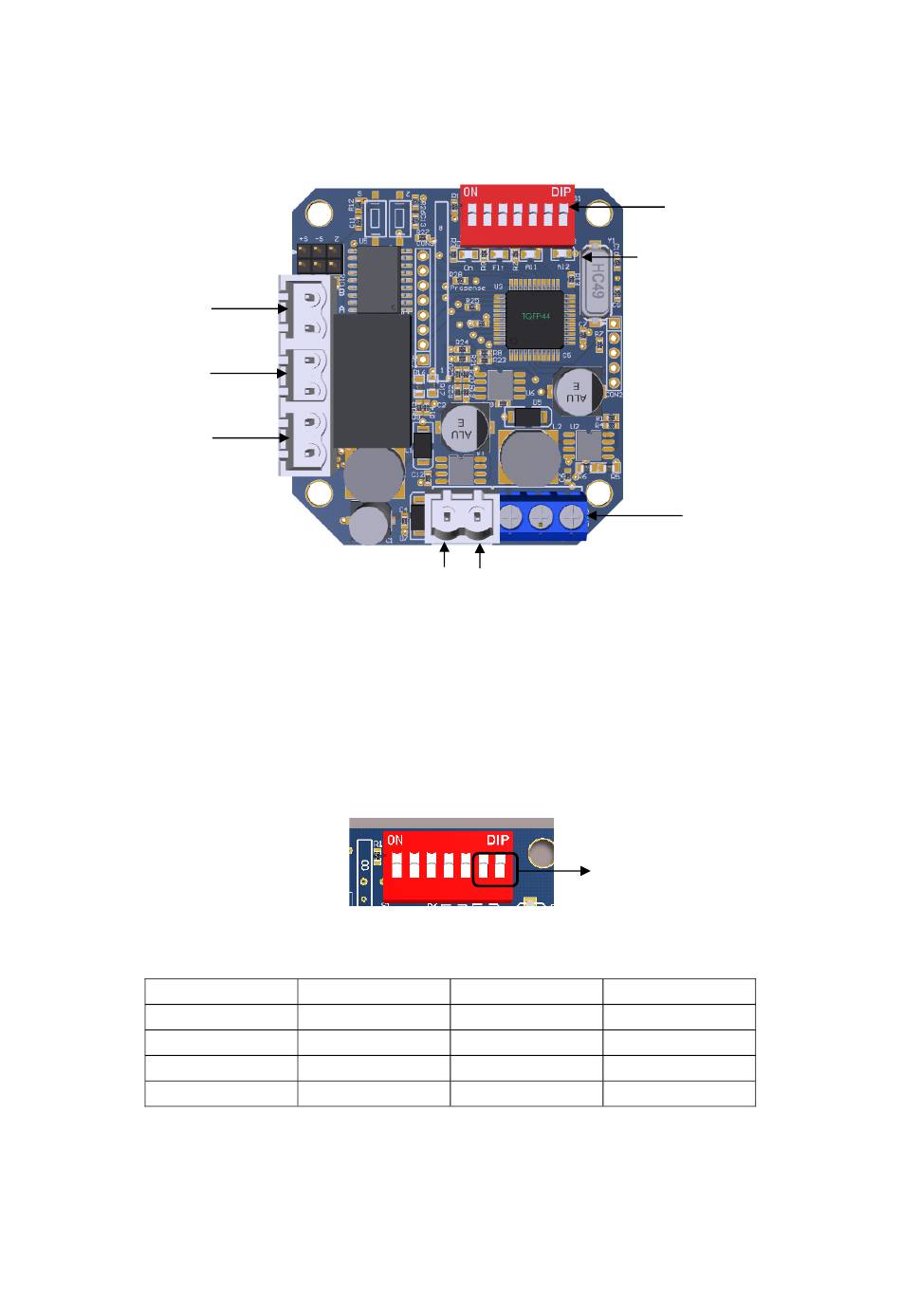

Diagram 1: PPS‐RCO Series detector main board
Switch 7
OFF
ON
OFF
ON
Table 1: PPS‐RCO Series detector alarm levels
V+
Alarm level adjustment
switches
Alarm1
Alarm2
20
75
40
100
100
200
150
250
Address and alarm level
adjustment switches
Status LEDs
Power Fault Alarm1 Alarm2
Sensor connection
