  • Page 1 ™ SUSPENSION SYSTEM O W N E R ’ S M A N U A L...
  • Page 2 ALLTREK 4000™ SUSPENSION SYSTEM O W N E R ’ S M A N U A L C O N T E N T S Introduction ............................2 Tandem Parts List ..........................3 Tandem Installation ..........................4 Triple Parts List ............................ 5 Triple Installation ..........................
  • Page 3 At the heart of your MORryde system are MORryde’s rubber springs that have been a mainstay in the recreational vehicle market for over 50 years. This system has been rigorously tested and engineered specifically for your trailer using the rubber springs’...
  • Page 4 PARTS LIST: TANDEM REPLACEMENT Item Part Number Description UO115-1001 3/8-16 - 1/2 X 1.5 LONG SHOULDER BOLT UO116-399 3/8-16 FLANGE LOCKNUT BRONZE BUSHING UO136-592 UO136-3348 GLIDE PAD TG2-33-SINGLE COMPLETE 33" WHEEL BASE EQUALIZER REPLACEMENT TG2-35-SINGLE COMPLETE 35" WHEEL BASE EQUALIZER REPLACEMENT...

  • Page 5: Tools Required

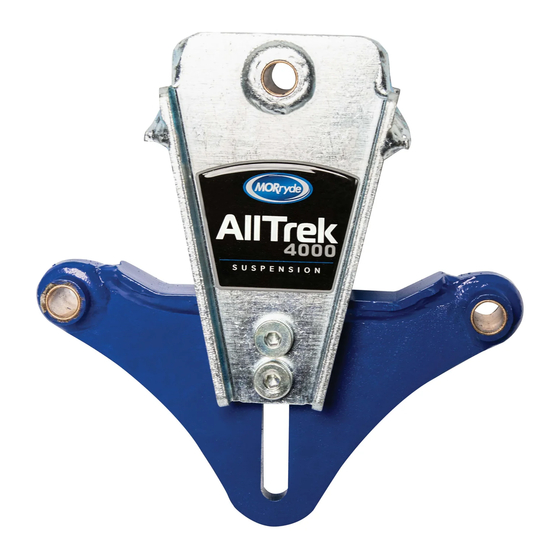

    TANDEM INSTALLATION INSTRUCTIONS The MORryde AllTrek 4000™ is the affordable way to upgrade your 5th wheel or travel trailer. By replacing the steel equalizers with shock-absorbing rubber compression springs, the AllTrek 4000™ allows up to 4" of total suspension travel.
  • Page 6 PARTS LIST CONTINUED: TRIPLE OEM REPLACEMENT Item Part Number Description UO115-1001 3/8-16 - 1/2 X 1.5 LONG SHOULDER BOLT 3/8-16 FLANGE LOCKNUT UO116-399 BRONZE BUSHING UO136-592 GLIDE PAD UO136-3348 TG2-33-SINGLE COMPLETE 33" WHEEL BASE EQUALIZER REPLACEMENT TG2-35-SINGLE COMPLETE 35" WHEEL BASE EQUALIZER REPLACEMENT 7/16-20 FLANGE LOCKNUT 006-092-01 TG30-001...
  • Page 7 ALLTREK 4000™ | 6 574.293.1581 MORryde.com • •...
  • Page 8 PARTS LIST: PARTS LIST CONTINUED: AFTERMARKET TRIPLE REPLACEMENT Item Part Number Description UO115-1001 3/8-16 - 1/2 X 1.5 LONG SHOULDER BOLT UO116-399 3/8-16 FLANGE LOCKNUT BRONZE BUSHING UO136-592 UO136-3348 GLIDE PAD TG2-33-SINGLE COMPLETE 33" WHEEL BASE EQUALIZER REPLACEMENT TG2-35-SINGLE COMPLETE 35" WHEEL BASE EQUALIZER REPLACEMENT 006-092-01 7/16-20 FLANGE LOCKNUT RE43-004...
  • Page 9 PARTS LIST CONTINUED: TRIPLE AFTERMARKET REPLACEMENT ALLTREK 4000™ | 8 574.293.1581 MORryde.com • •...
  • Page 10 AFTERMARKET TRIPLE INSTALLATION INSTRUCTIONS * Triple axle AllTrek 4000™ cannot be used with Correct Track. * Triple axle AllTrek 4000™ cannot have items hanging down under the frame between the equalizer hangers. PARTS LIST: TOOLS REQUIRED: • See Page 7 Torque Wrench •...
  • Page 11 Step 12 Line up the holes on both Support Cross Member channels, and insert (3) 3/8-16 x 1 Flange Bolts on each side. Install the 3/8-16 Flange Locknuts but do not torque. ALLTREK 4000™ | 10 574.293.1581 MORryde.com • •...
  • Page 12 AFTERMARKET TRIPLE INSTALLATION INSTRUCTIONS Step 15 Using the 2.9" Long Wet Bolts and 7/16-20 Flange Locknuts, bolt the Torque Arms between the Front Cross Member and the Axle Torque Brackets. Torque the nuts to 40 ft-lbs using an 11/16" socket and 13/16" wrench. Step 12 Step 13 Repeat Steps 11 and 12 for the roadside.
  • Page 13 These conditions do not require the equalizer to be replaced. Figure 1 ALLTREK 4000™with rubber spring in good condition shown at design load Spring Center Figure 2 ALLTREK 4000™ with rubber spring worn out Beam Arm 5/16 ALLTREK 4000™ | 12 574.293.1581 MORryde.com • •...

  • Page 14: Basic Troubleshooting

    • Tires out of balance • Adjust brakes • Improper brake adjustment • Pulverized rubber spring • Replace the ALLTREK 4000™ equalizer Rough Ride • Trailer is not level front to back • Adjust pin box height to level out trailer •...
  • Page 15 ALLTREK 4000™ | 14 574.293.1581 MORryde.com • •...
  • Page 16 At MORryde, it’s simply about doing MORE for our customers, and it doesn’t stop at the sale. We stand behind our products, believing in quality first, service always.
