MORryde JP54-035 Installation Instructions

JP54-035
Overland rack
I N S TA L L AT I O N I N S T R U C T I O N S

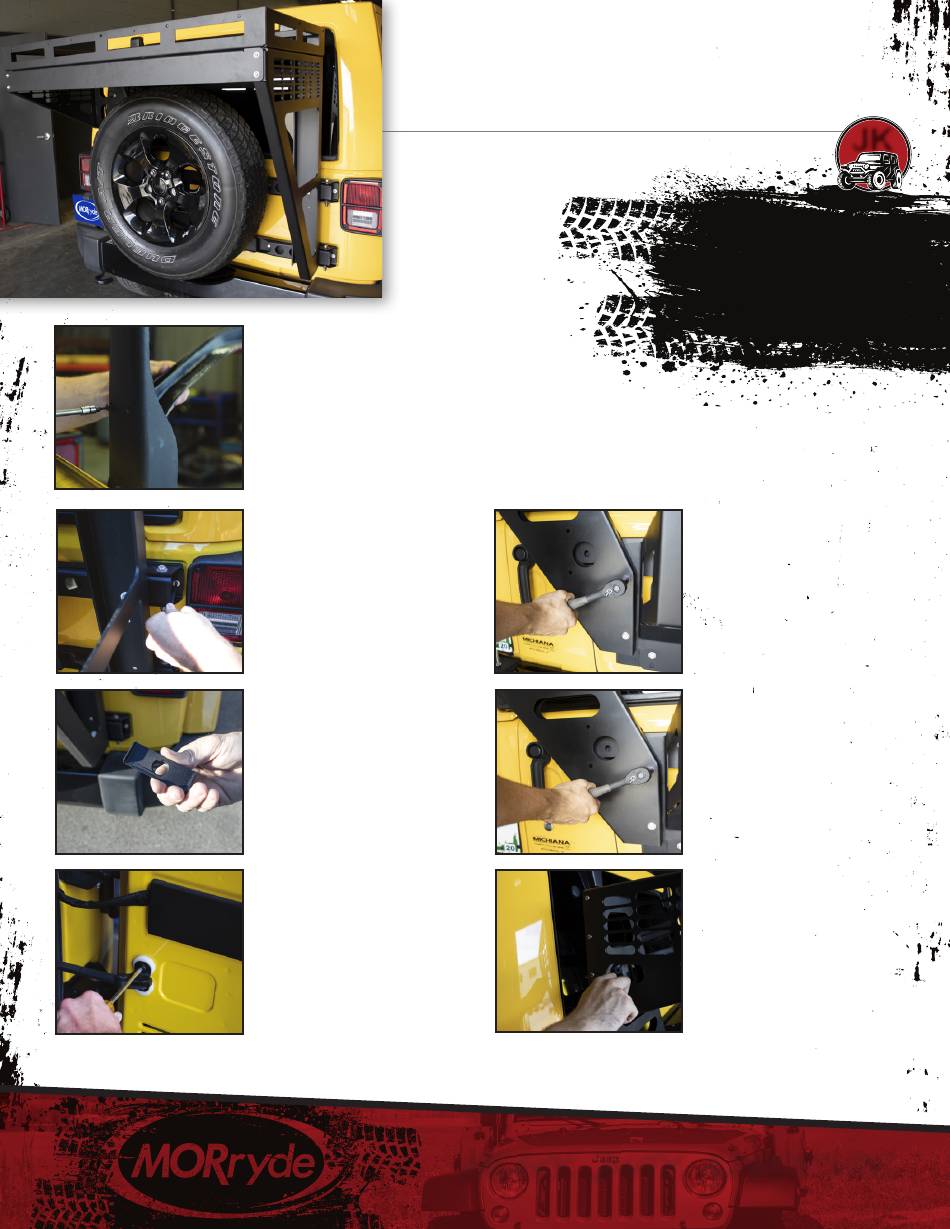

STEP 1
Before the installation of the Overland rack can proceed,
the third brake light needs to be unplugged
•
To accomplish this, use a T20 Torx bit and uninstall the 4 screws
from the back side of the spare tire carrier. Once the screws are
removed, unplug the third brake light.
STEP 2
Remove Heavy-Duty Tailgate
Hinge stop bracket using 5/32"
allen wrench.
STEP 3
Install new, low-profile stop
bracket in place of the stop
bracket that was just removed.
STEP 4
• Unbolt tailgate guide arm from
tailgate using T30 socket and
place the provided ¼" spacers
between the tailgate guide arm
bracket and the tailgate.
• Then, bolt the tailgate guide arm
bracket back to the tailgate with
the spacers between the tailgate
and the bracket.
Heavy. D uty. Adventure.
www.MORryde.com • 574.293.1581
J K
Tools Needed YJ
• 7/16" Wrench • 5/32" Allen Wrench
• 1/2" Wrench • 1/2" Socket
• 7/16" Socket • T20 Torx
• T30 Torx
STEP 5
Remove (2) driver side bolts
from Spare tire Carrier.
STEP 6
Line-up holes in driver side
support with the bolt holes in
the spare tire carrier and reinstall
using M8-2.5 x 80mm bolts.
NOTE: Don't tighten bolts down
until assembly is complete.
7
STEP
Fasten driver side Molle grid
bracket to driver side support
using (4) supplied ¼"-20 button
head bolts to bolt through Molle
grid bracket and into rivet nuts
in driver side support.
C
