Summary of Contents for infobit iSwitch 602

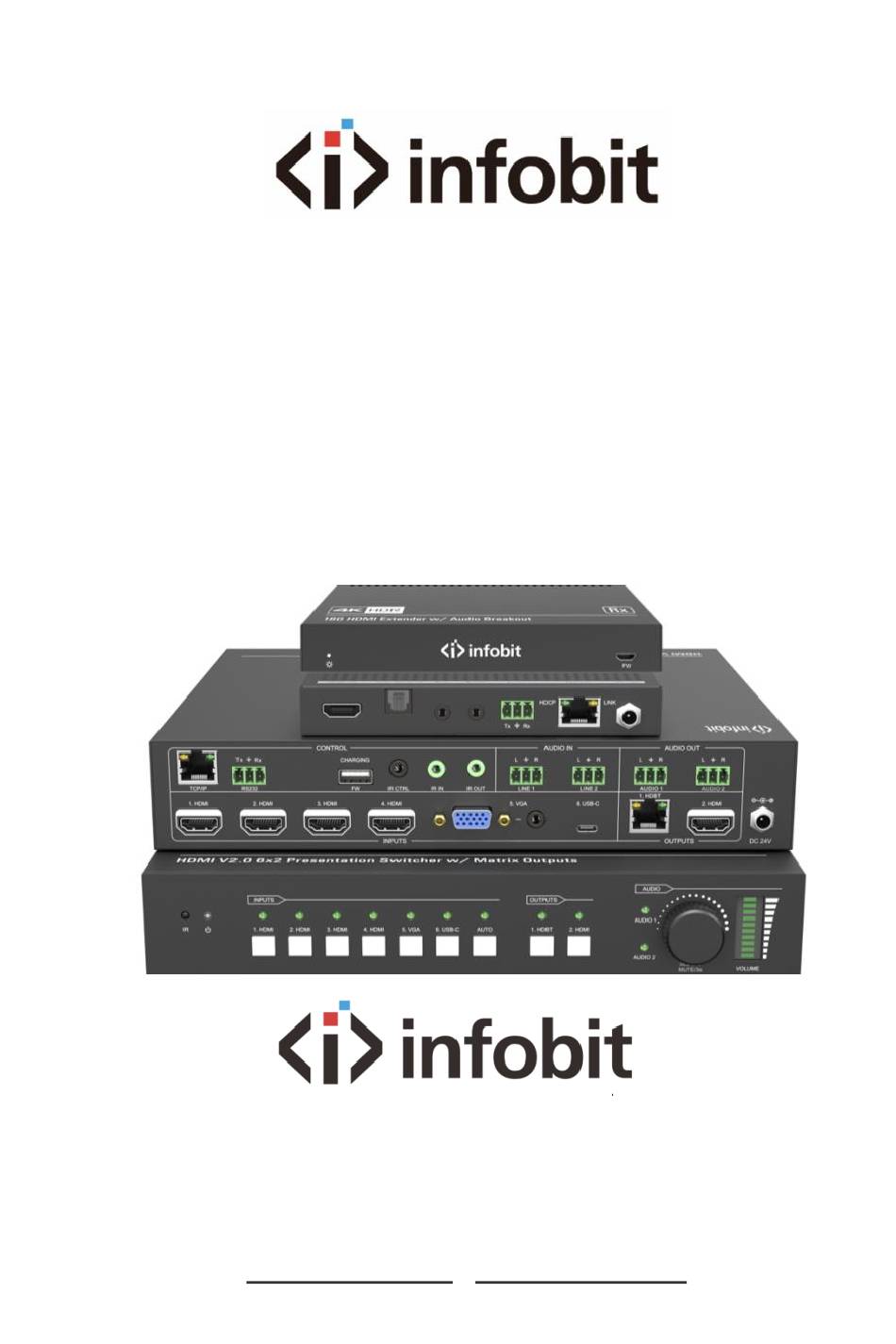

- Page 1 602 4K 6X2 HDMI 2.0 HDBT Matrix Switcher All Rights Reserved Version: V1.0 www.infobitav.com info@infobitav.com...
- Page 2 4K 6x2 HDMI V2.0 HDBaseT Matrix Switcher...
-
Page 3: Product Introduction
4K 6x2 HDMI V2.0 HDBaseT Matrix Switcher 1. Product Introduction Thanks for choosing the 6x2 multi-format presentation matrix switcher! The matrix switcher simplifies meeting room and presentation space system integration by providing four HDMI inputs, one VGA input, one USB-C input, one HDBT output and one HDMI output. -
Page 4: Specification
4K 6x2 HDMI V2.0 HDBaseT Matrix Switcher 2. Specification Video Input Video Input (4) HDMI, (1) VGA, (1) USB-C Video Input Connector (4) Type-A female HDMI, (1) 15-pin female VGA, (1) USB-C HDMI: Up to 4K@60Hz 4:4:4, HDR VGA: Up to 1920x1200@60Hz Video input Video Resolution USB-C: Up to 4K@60Hz 4:2:0 Video Output... - Page 5 4K 6x2 HDMI V2.0 HDBaseT Matrix Switcher HDMI Version Up to 2.0 HDCP Version Up to 2.2 Bandwidth 18Gbps 1080p@60Hz ≤ 230 feet (70 meters), HDBT Transmission Distance 4K@60Hz ≤ 131 feet (40 meters) Operation Temperature -5 to +55℃ (+23° to +131°F) Storage Temperature -25 to +70℃...
-
Page 6: Panel Description
4K 6x2 HDMI V2.0 HDBaseT Matrix Switcher 3. Panel Description 3.1 Front Panel ① IR: Built-in IR sensor for receiving IR signals from IR remote to control the matrix. ② POWER: The LED illuminates green when the device is powered on, red when the device is in standby mode. -
Page 7: Rear Panel
4K 6x2 HDMI V2.0 HDBaseT Matrix Switcher 3.2 Rear Panel ① INPUTS: Total six video inputs and three audio inputs. HDMI 1~4: Connects to HDMI source devices. ⚫ VGA: Connects to the VGA source. One stereo auxiliary audio input (3.5mm ⚫... - Page 8 4K 6x2 HDMI V2.0 HDBaseT Matrix Switcher AUDIO 2: Connects to audio playback device for audio de-embedding. The ⚫ audio output can be de-embedded from the HDBT or HDMI output selected via RS232 command. It’s de-embedded from HDMI output by default. ⑥...
-
Page 9: System Connection
4K 6x2 HDMI V2.0 HDBaseT Matrix Switcher 4. System Connection... - Page 10 4K 6X2 HDMI 2.0 HDBaseT Matrix Switcher CONTACT US www.infobitav.com info@infobitav.com...
