Tiger LHCG Series Operating Instructions

Low Headroom Combination Chain Block & Trolly
Model: LHCG Series
MODEL NO: LHCG -0600
BEFORE USING THE TROLLEY, READ CAREFULLEY THIS MANUAL AND
KEEP IT FOR FUTURE NEEDS.
This hoist should not be installed, operated on r maintained by any person who has not read all
the contents of these General Instructions. Failure to read and comply with these instruction or
any one of the limitation noted herein can result in serious bodily injury and / or property
damage.
(A) INSTALL

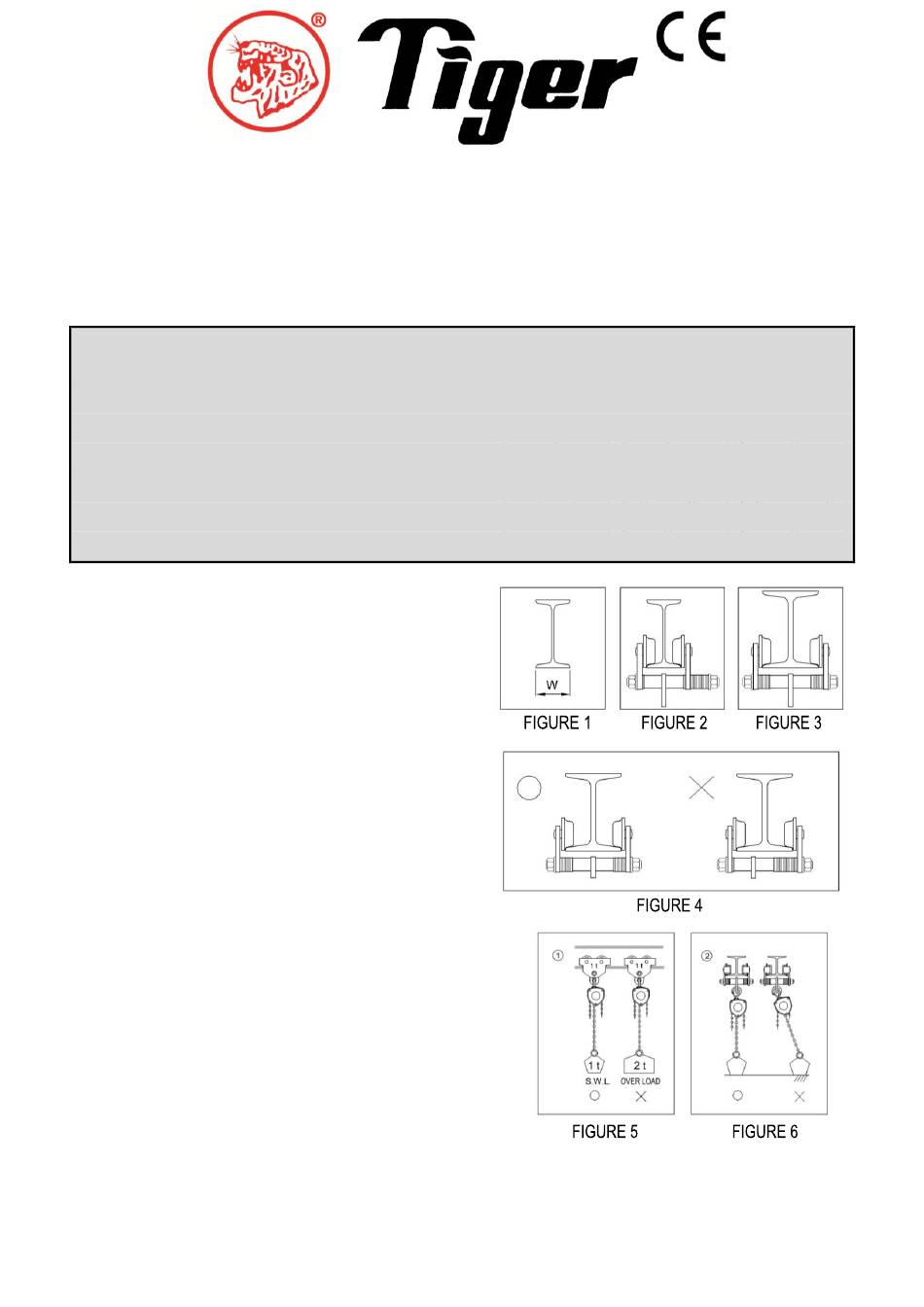

① Measure I-beam W-dimension.(FIGURE 1)
② Use adjusting collar to adjust the Trolley range
to fit I-Beam.(FIGURE 2 & 3)
③ Make sure the Hook Receiving right in the center
of the two side plate. (FIGURE 4)
④ Completely tighten the Nylon Nut.
(B) IMPORTANT SAFETY INFORMATION
① Do not over loading.(FIGURE 5)
② Load just under the trolley.
Do not operate the trolley
loaded slantwise. (FIGURE 6)
③ This trolley is not used to transport
People or for loads over areas where
People could be present.
(C) MAINTENANCE & INSPECTION
．User have to check the Nylon Nut for Suspended
Shaft periodically, to ensure the Nylon Nut
completely tighten.
．Keep the Pinion Gear well lubricated for continued
smooth performance.
．After use, service the hoist before storing it.
Servicing and repairs should only be carried out by
qualified, competent, and responsible people.
(a) Clean the hoist thoroughly.
(b) Keep the hoist well-lubricated. Oil the load chain and
hook shank.
(c) Store the hoist correctly against rain and moisture.
When the hoist is installed outdoors, exceptional care should be taken regarding maintenance.
