Tiger CB-0.25 Operating Instructions

Chain block

Download this manual

WARNING

This hoist should not be installed, operated or maintained by any person who has not read all the

contents of these General Instructions. Failure to read and comply with these instruction or any one

of the limitation noted herein can result in serious bodily injury and / or property damage.

MODEL NO: CB-0.25

Need help?

Do you have a question about the CB-0.25 and is the answer not in the manual?

Page 1 This hoist should not be installed, operated or maintained by any person who has not read all the contents of these General Instructions. Failure to read and comply with these instruction or any one of the limitation noted herein can result in serious bodily injury and / or property damage. MODEL NO: CB-0.25...

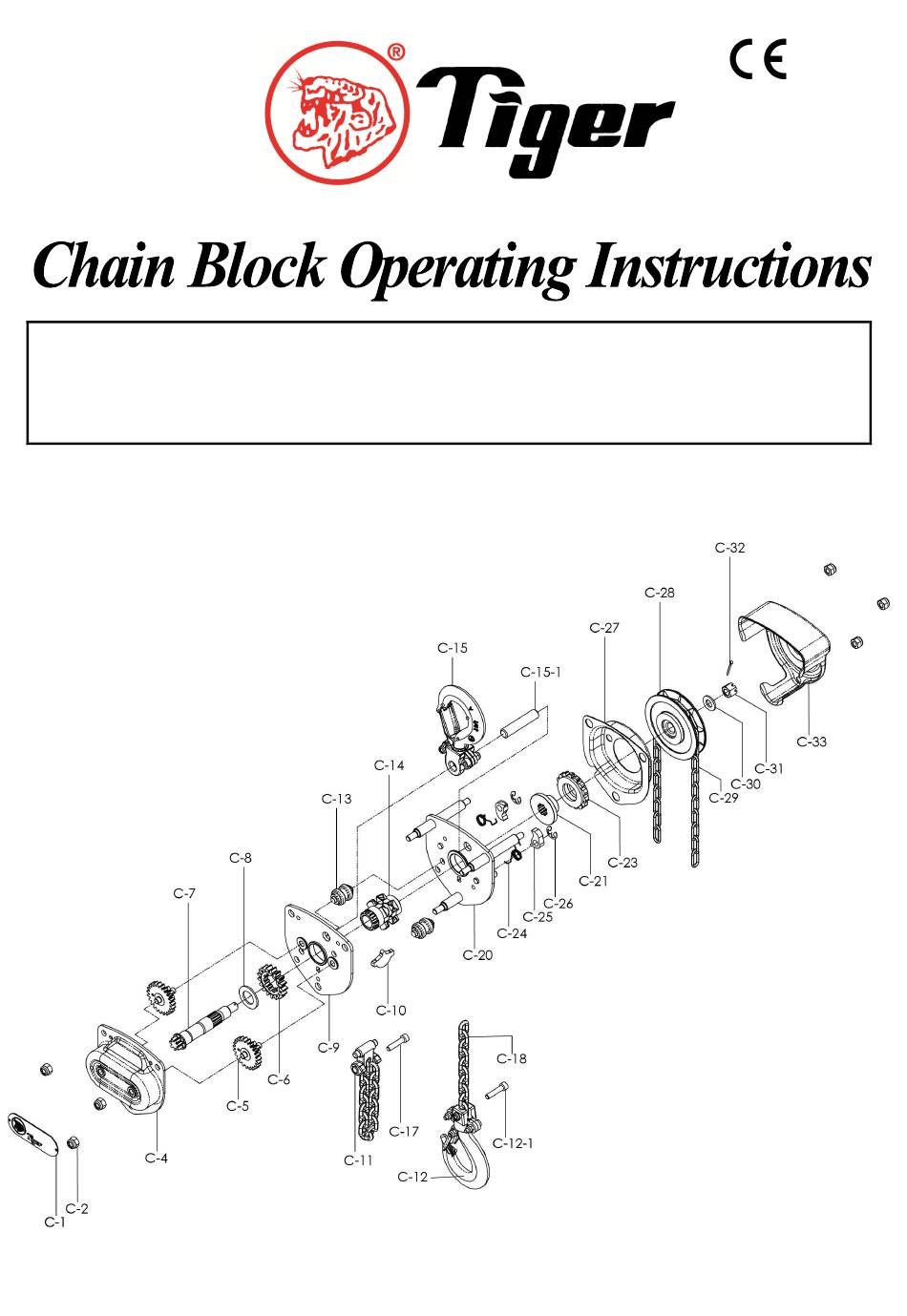

Page 2 Part No. Quantity Part Name Part No. Quantity Part Name Label C-17 Chain-End-Fixing Pin C-18 Load Chain Gear Cover C-20 Wheel-Side Plate Assembly Pinion(with Pinion Gear) C-21 Disc Hub Load Gear C-23 Ratchet Gear with Brake Disc Pinion Shaft C-24 Pawl Spring Pinion Shaft Washer C-25...
Page 3 IMPORTANT REMARKS FOR OPERATORS INSPECTION Do not give the load a sudden take-off. Take a breath when the load chain is just taut, and check for brake action by pulling up and down about Do not overload your chain hoist. 10cm above floor.
Page 4 Chain Wire Gauge Length wear is unavoidable and certain conditions will cause wear and corrosion that will lessen the strength. CB-0.25 Ø4mm 11 links = 135mm Load chains worn beyond the permissible limits shown in the Table 1 must be replaced at once.
