Tiger CCBTGT-1000N Operating Instructions Manual

Chain Hoist
This hoist should not be installed, operated or maintained by any person who has not read all the
contents of these General Instructions. Failure to read and comply with these instruction or any
one of the limitation noted herein can result in serious bodily injury and / or property damage.

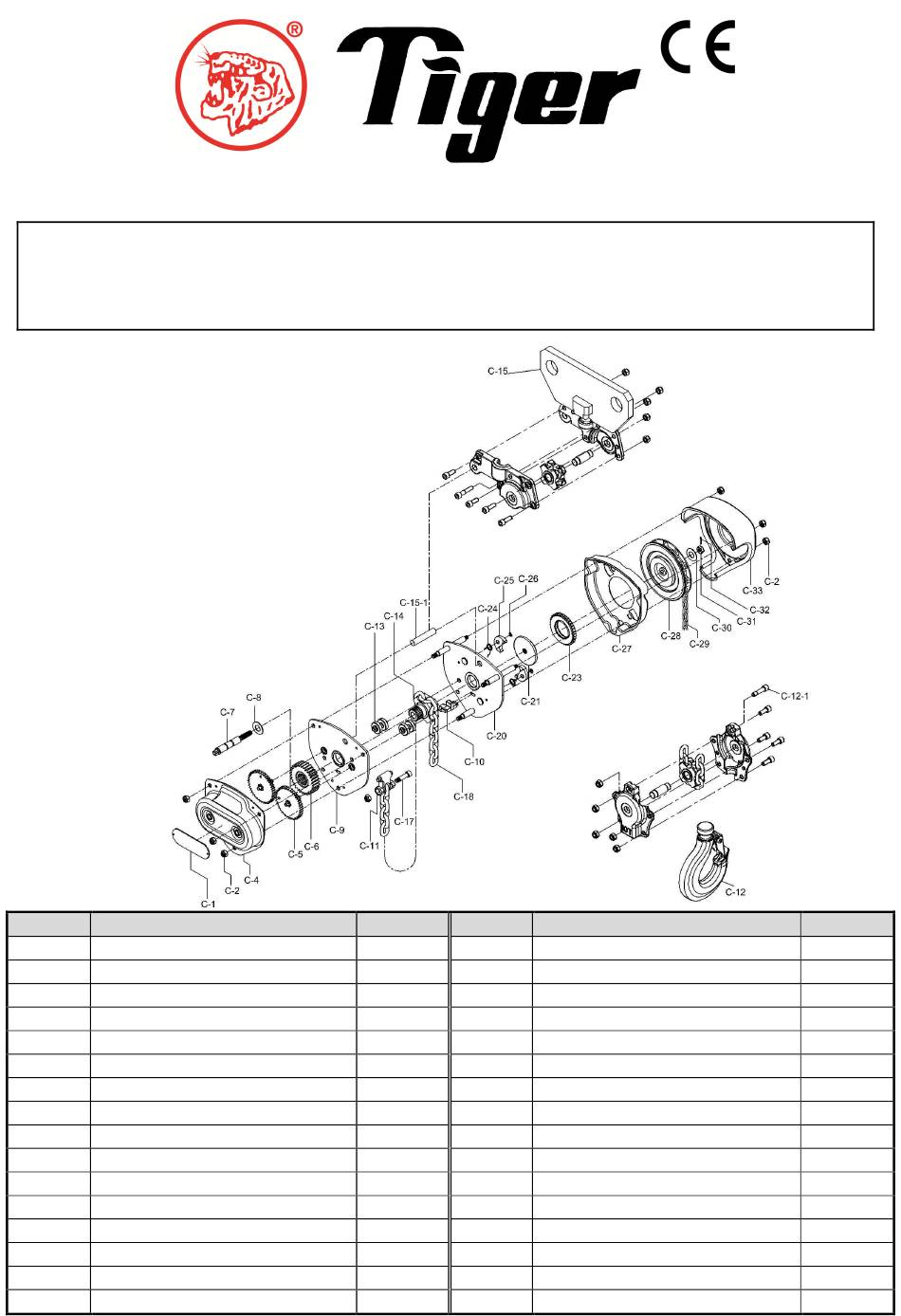

MODEL NO: CCBTGT-1000N
Part No. Part Name
C-1 Label
C-2 Nut
C-4 Gear Cover
C-5 Pinion(with Pinion Gear)
C-6 Load Gear
C-7 Pinion Shaft
C-8 Pinion Shaft Washer
C-9 Gear - Side Plate
C-10 Chain Stripper
C-11 Load Chain Anchoring
C-12 Bottom Hook Assembly
C-12-1 Bottom Hook Pin
C-13 Load Chain Guide
C-14 Load Sheave
C-15 Connecting Plate/Connection Kit
C-15-1 Connecting Bolt
(combined type)
WARNING
Quantity Part No.
1
6
1
2
1
1
1
1
1
1
1
1
2
1
2
1
Operating Instructions
Part Name
C-17 Chain-End-Fixing Pin
C-18 Load Chain
C-20 Wheel-side Plate Assembly
C-21 Disc Hub
C-23 Ratchet Gear with Brake Disc
C-24 Pawl Spring
C-25 Pawl
C-26 Snap Ring for Pawl Pin
C-27 Ratchet Gear Cover
C-28 Handwheel
C-29 Hand Chain
C-30 Washer for Pinion Shaft Nut
C-31 Check Nut
C-32 Cutter Pin for Check Nut
C-33 Handwheel Cover
Quantity
1
1
1
1
1
2
2
2
1
1
1
1
1
1
1
